DTC P0110, P0112, P0113: Intake Air Temperature Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

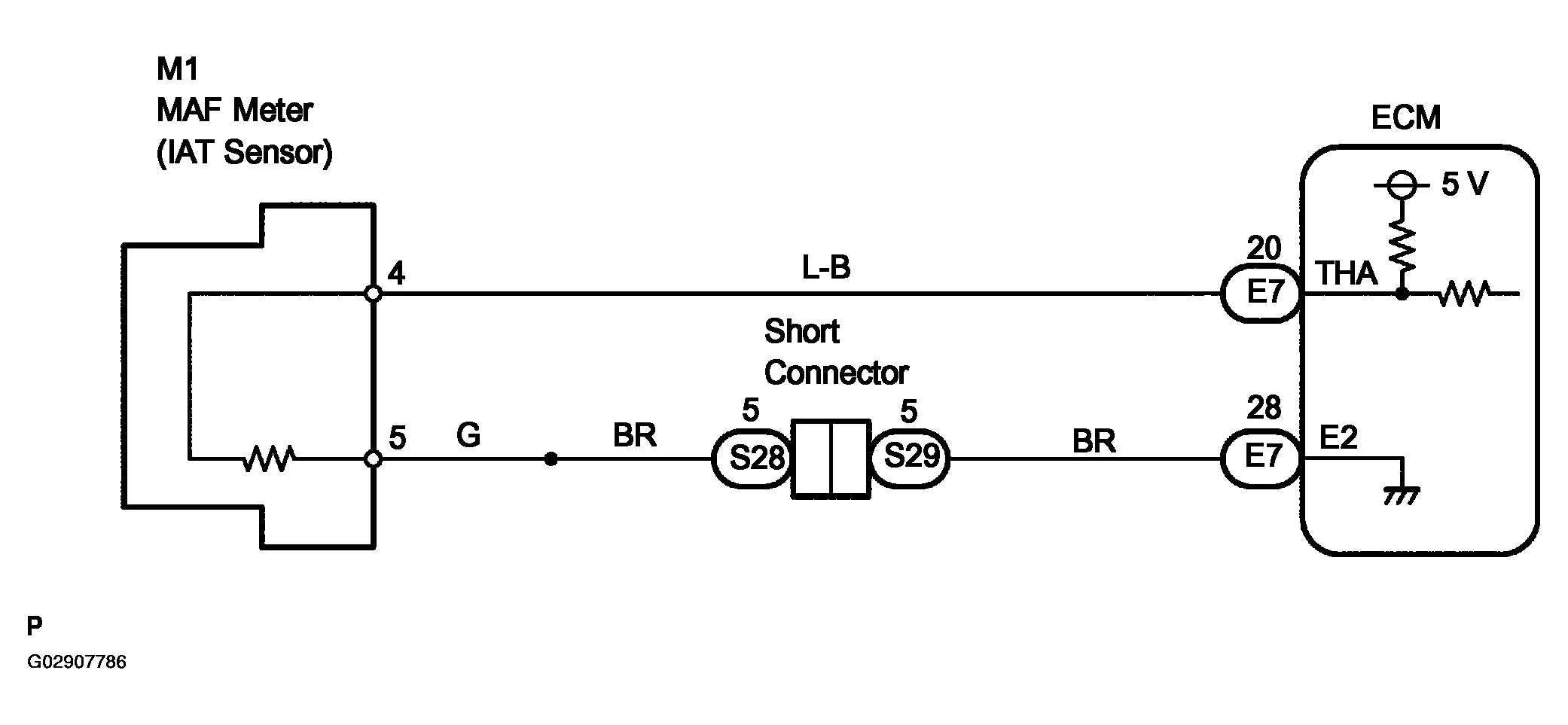

Fig 1: IAT Sensor Wiring Diagram
G02907786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
