Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to DTC P0100 on DTC P0100 MASS OR VOLUME AIR FLOW CIRCUIT .

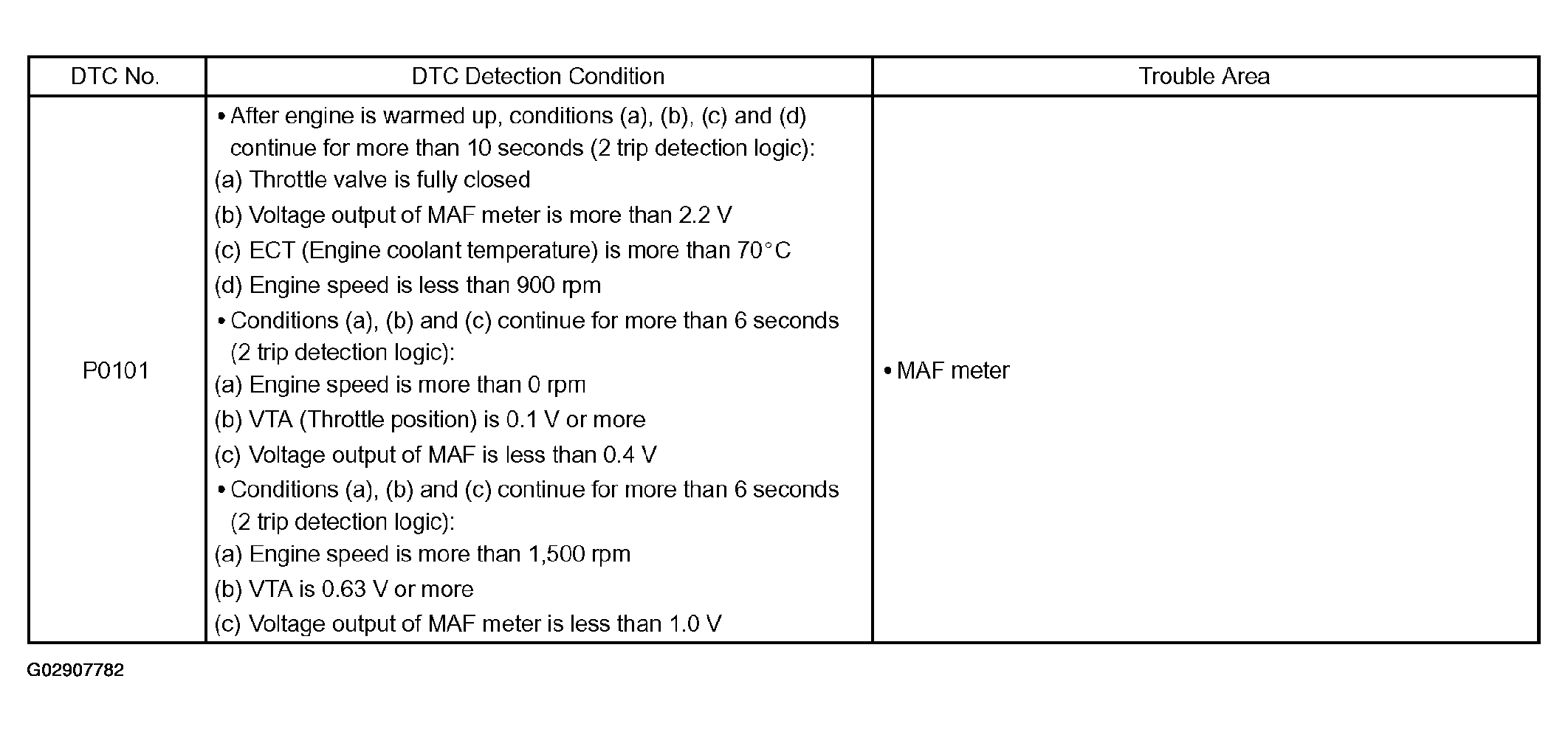

Fig 1: DTC Trouble Detection Chart (DTC - P0101)
G02907782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
