Circuit Description

WARNING: This page is about a different variant/trim than selected.

Refer to wiring in DTC P0010 CAMSHAFT POSITION "A" ACTUATOR CIRCUIT (BANK 1) .

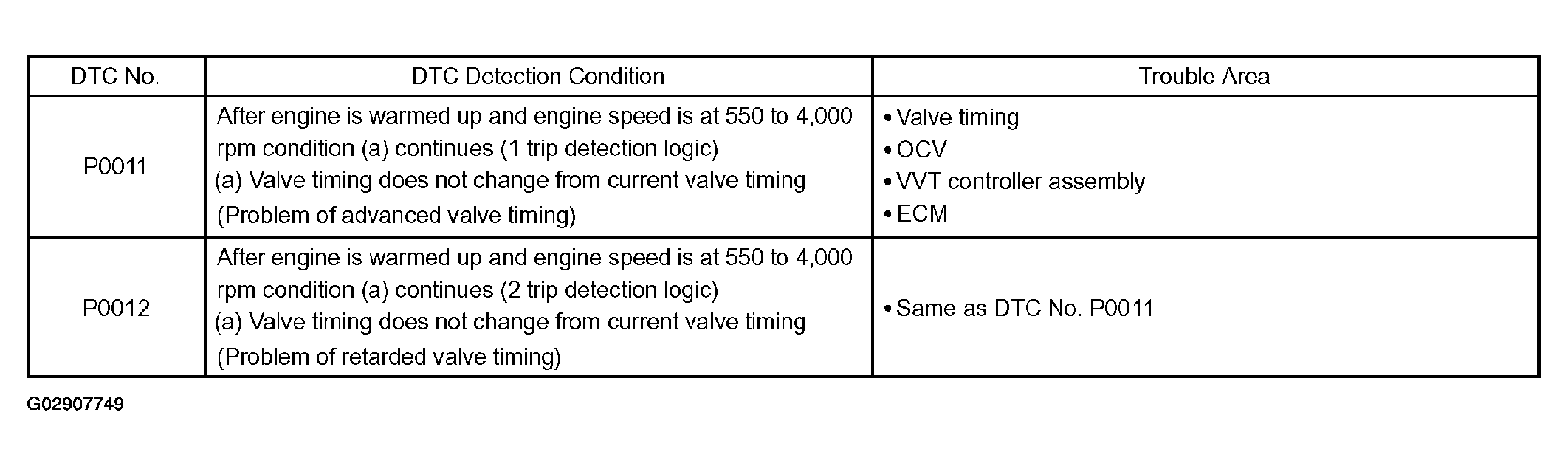

Fig 1: Diagnostic Trouble Detection Chart (DTC - P0011/0012)
G02907749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
