Rear Door: Adjustment

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

In the RH side, work in the same procedure as in the LH side.
Since the centering bolt is used as a door side hinge bolt, the door hinge cannot be adjusted with it on. Substitute the bolt with washer for the centering bolt.

Fig 1: Identifying Centering And Standard Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT REAR DOOR PANEL SUB-ASSY LH
1. Check that the clearance is within the standard value.

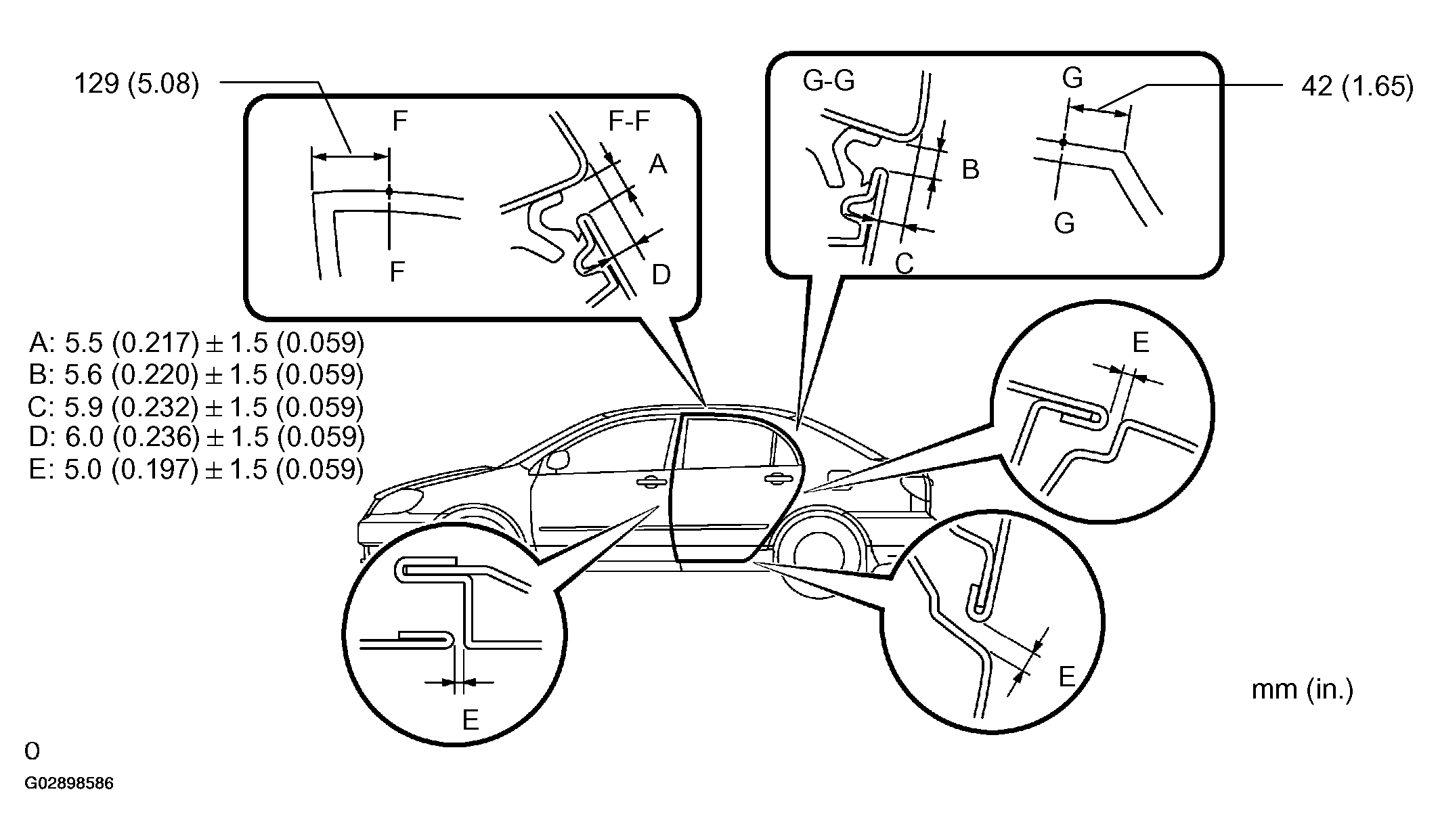

  Fig 2: Checking Clearance Of Rear Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR SCUFF PLATE LH (See REPLACEMENT )
REMOVE REAR DOOR SCUFF PLATE LH (See REPLACEMENT )
REMOVE FRONT DOOR WEATHERSTRIP LH (See OVERHAUL )
REMOVE REAR DOOR WEATHERSTRIP LH (See OVERHAUL )
REMOVE CENTER PILLAR GARNISH LOWER LH (See REPLACEMENT )
ADJUST REAR DOOR PANEL SUB-ASSY LH
1. Adjust the door by loosening the body side hinge nuts.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 3: Adjusting Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the door by loosening the door side hinge bolts.
  Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

  Fig 4: Adjusting Door By Loosening Door Side Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the striker position by slightly loosening the striker mounting screws, and hitting the striker with a plastic hammer.
4. Tighten the striker mounting screws again.
  Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

  Fig 5: Adjusting Striker Position By Slightly Loosening Striker Mounting Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
