Roof Headlining ASSY: Replacement

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT DOOR SCUFF PLATE RH
    1. Using a screwdriver, remove the front door scuff plate RH.

    HINT:

    Tape the screwdriver tip before use.

  2. REMOVE FRONT DOOR SCUFF PLATE LH

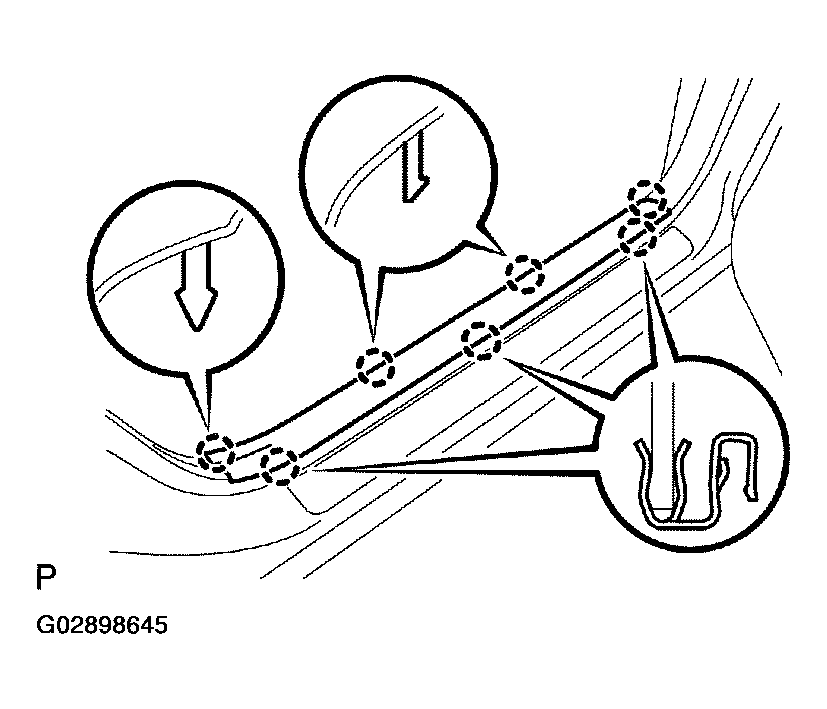

    Fig 1: Identifying Front Door Scuff Plate LH
    G02898645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR DOOR SCUFF PLATE RH
    1. Using a screwdriver, remove the rear door scuff plate RH.

      HINT:

      Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
  4. REMOVE REAR DOOR SCUFF PLATE LH
    Fig 2: Identifying Rear Door Scuff Plate LH
    G02898646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COWL SIDE TRIM BOARD RH
    1. Remove the clip.
    2. Using a screwdriver, remove the cowl side trim board RH.

      HINT:

      Tape the screwdriver tip before use.

    3. Employ the same manner described above to the other side.
    Fig 3: Identifying Cowl Side Trim Board RH
    G02898647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE COWL SIDE TRIM BOARD LH
  7. REMOVE FRONT DOOR OPENING TRIM RH
  8. REMOVE FRONT DOOR OPENING TRIM LH
  9. REMOVE REAR DOOR OPENING TRIM RH
  10. REMOVE REAR DOOR OPENING TRIM LH
  11. REMOVE CENTER PILLAR GARNISH LOWER RH
    1. Pull the center pillar garnish lower RH upward to remove it.
    2. Employ the same manner described above to the other side.
  12. REMOVE CENTER PILLAR GARNISH LOWER LH
    Fig 4: Identifying Center Pillar Garnish Lower LH
    G02898648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE CENTER PILLAR GARNISH RH
    1. Using a screwdriver, remove the shoulder anchor cover cap.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and front seat outer belt shoulder anchor.
    3. Remove the bolt and front seat outer belt floor anchor.
      Fig 5: Removing Shoulder Anchor Cover Cap Using Screwdriver
      G02898649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, remove the center pillar upper garnish RH.

      HINT:

      Tape the screwdriver tip before use.

    5. Employ the same manner described above to the other side.
    Fig 6: Locating Centre Pillar Clip
    G02898650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CENTER PILLAR GARNISH LH
  15. REMOVE REAR SEAT CUSHION ASSEMBLY (See  OVERHAUL (W/SEPARATE TYPE)  or  OVERHAUL (W/BENCH TYPE)  )
  16. REMOVE REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT) (See  OVERHAUL (W/BENCH TYPE)  )
  17. REMOVE REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT) (See  OVERHAUL (W/SEPARATE TYPE)  )
  18. REMOVE REAR SEAT SIDE COVER RH (FIXED TYPE REAR SEAT)
    1. Using a screwdriver, remove the rear seat side cover RH.

      HINT:

      Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
  19. REMOVE REAR SEAT SIDE GARNISH LH (FIXED TYPE REAR SEAT)
    Fig 7: Identifying Rear Seat Side Garnish LH Clip
    G02898651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE ROOM PARTITION BOARD LH (SEPARATED TYPE REAR SEAT)
    1. Remove the 2 clips and 2 built-in clips room partition board LH.
  21. REMOVE ROOM PARTITION BOARD RH (SEPARATED TYPE REAR SEAT)
    1. Remove the clip and 2 built-in clips room partition board RH.
    Fig 8: Removing Room Partition Board
    G02898652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE ROOF SIDE GARNISH INNER RH
    1. Using a screwdriver, remove the roof side garnish inner RH.

      HINT:

      Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
  23. REMOVE ROOF SIDE GARNISH INNER LH
    Fig 9: Removing Roof Side Garnish Inner RH
    G02898653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE PACKAGE TRAY TRIM PANEL ASSY
    1. Using a clip remover, remove the 7 clips.
    2. Pull out the belt from the slit and then remove the package tray trim panel assembly.

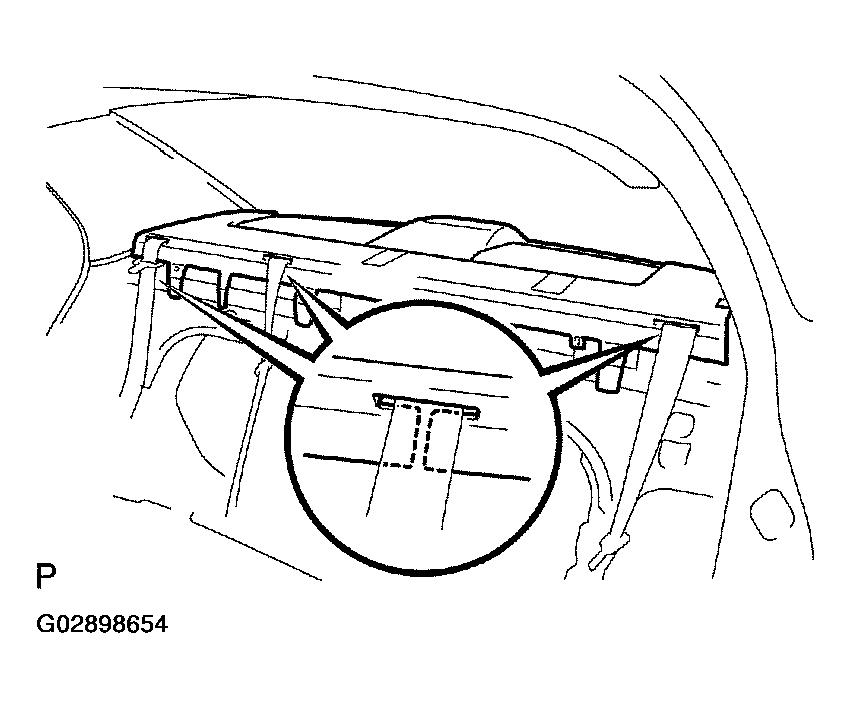

    Fig 10: Removing Package Tray Trim Panel Assy
    G02898654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. REMOVE FRONT PILLAR GARNISH RH
    1. Using a screwdriver, remove the front pillar garnish RH.

      HINT:

      Tape the screwdriver tip before use.

    2. Employ the same manner described above to the other side.
  26. REMOVE FRONT PILLAR GARNISH LH
    Fig 11: Removing Front Pillar Garnish LH
    G02898655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE RH VISOR ASSY
    1. Remove the 2 screws and RH visor assembly.
  28. REMOVE LH VISOR ASSY
    Fig 12: Removing Visor Assy
    G02898656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. REMOVE MAP LAMP ASSY (W/ SLIDING ROOF)
    1. Remove the screw.
    2. Using a screwdriver, remove the map lamp lens and cover.

      HINT:

      Tape the screwdriver tip before use.

    3. Remove the screw.
    4. Using a screwdriver, remove the glove box lamp assembly.

      HINT:

      Tape the screwdriver tip before use.

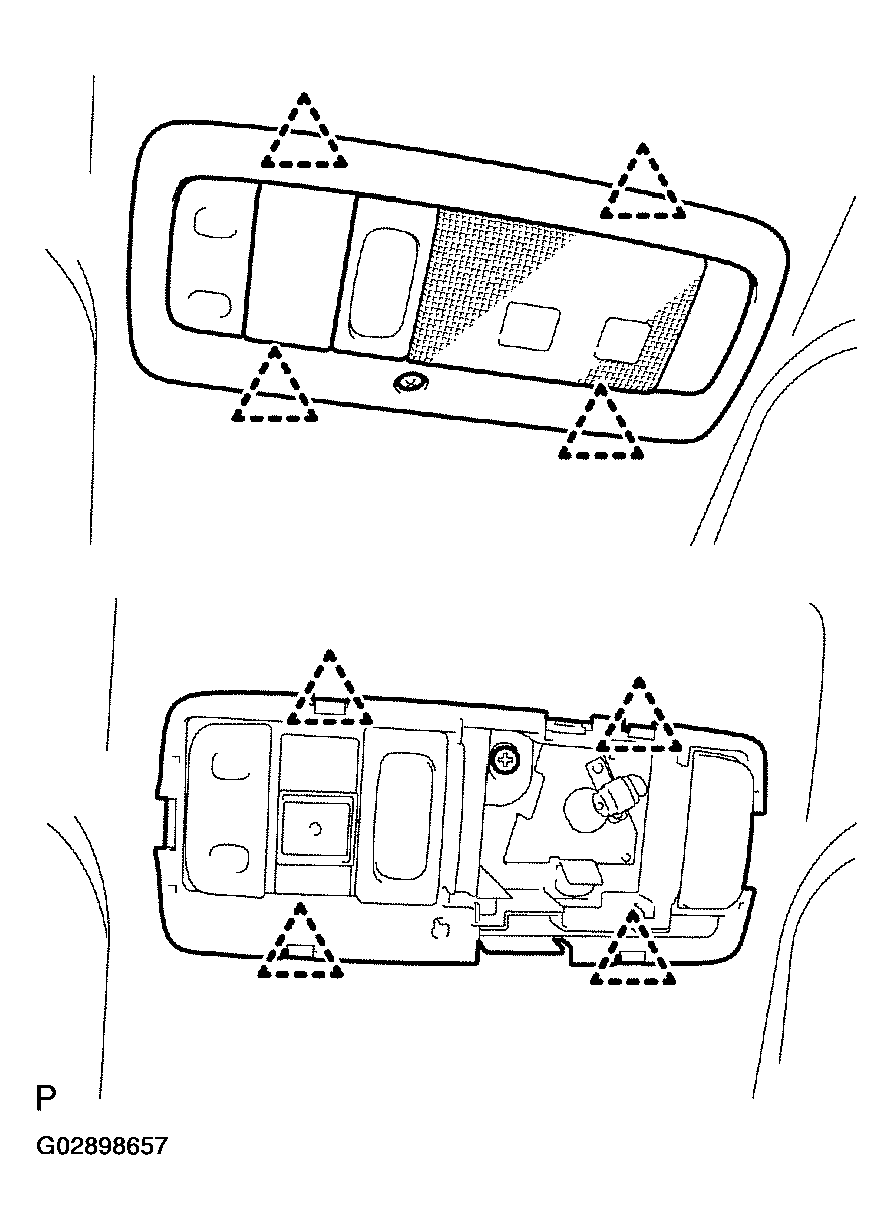

    Fig 13: Removing Map Lamp Assy (W/ Sliding Roof)
    G02898657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE ROOM LAMP ASSY NO.1
    1. Using a screwdriver, remove the lens cover.
    2. Using a screwdriver, remove the room lamp assembly No.1 as shown in the illustration.

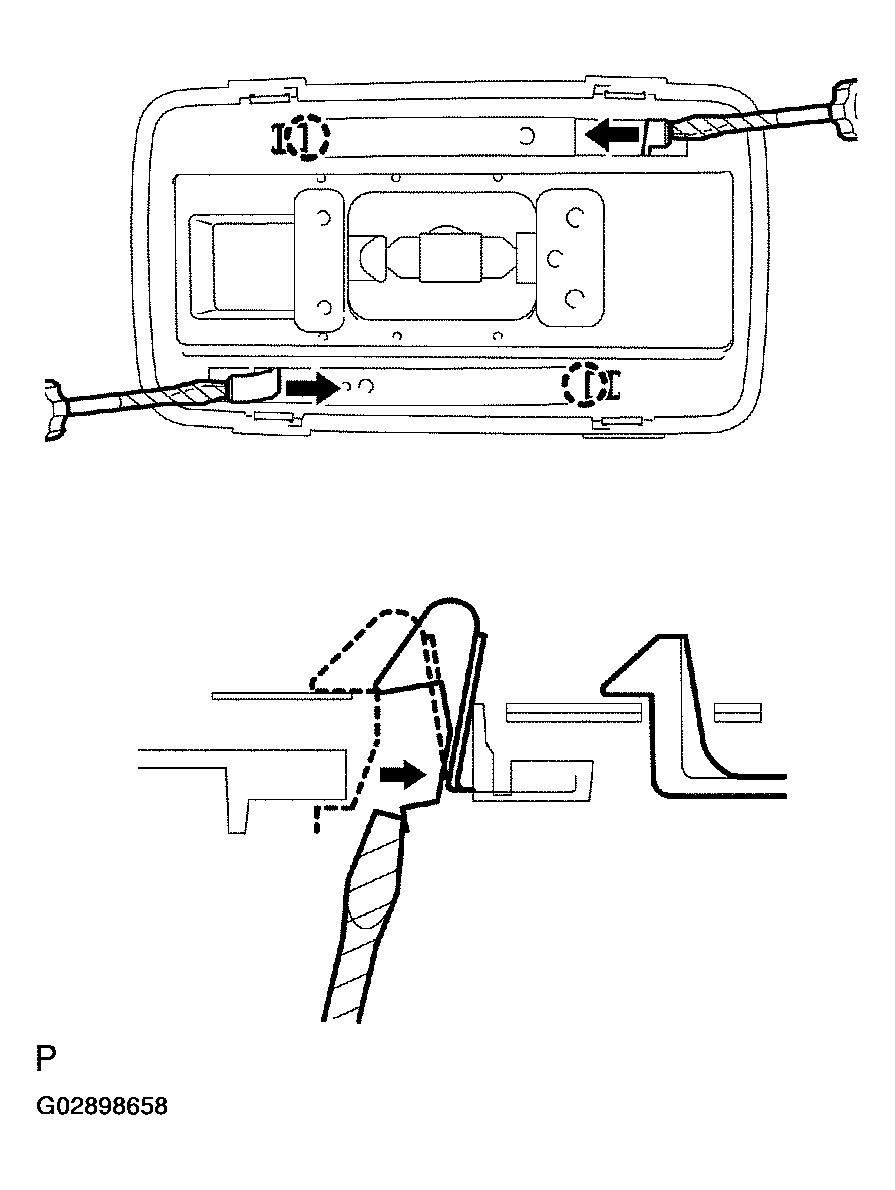

    Fig 14: Removing Room Lamp Assy
    G02898658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE ASSIST GRIP SUB-ASSY
    1. Using a screwdriver, remove the 2 assist grip covers.
    2. Remove the 2 screws and assist grip sub-assy.
    Fig 15: Removing Assist Grip Sub-Assy
    G02898659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE VISOR HOLDER
    1. Remove the holder of the sun visor by turning it counterclockwise.
    Fig 16: Removing Holder Of Sun Visor By Turning It Counterclockwise
    G02898660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE SUN ROOF OPENING TRIM MOULDING (W/ SLIDING ROOF)
  34. REMOVE ROOF HEADLINING ASSY
    1. Remove the 3 clips and roof headlining assembly.

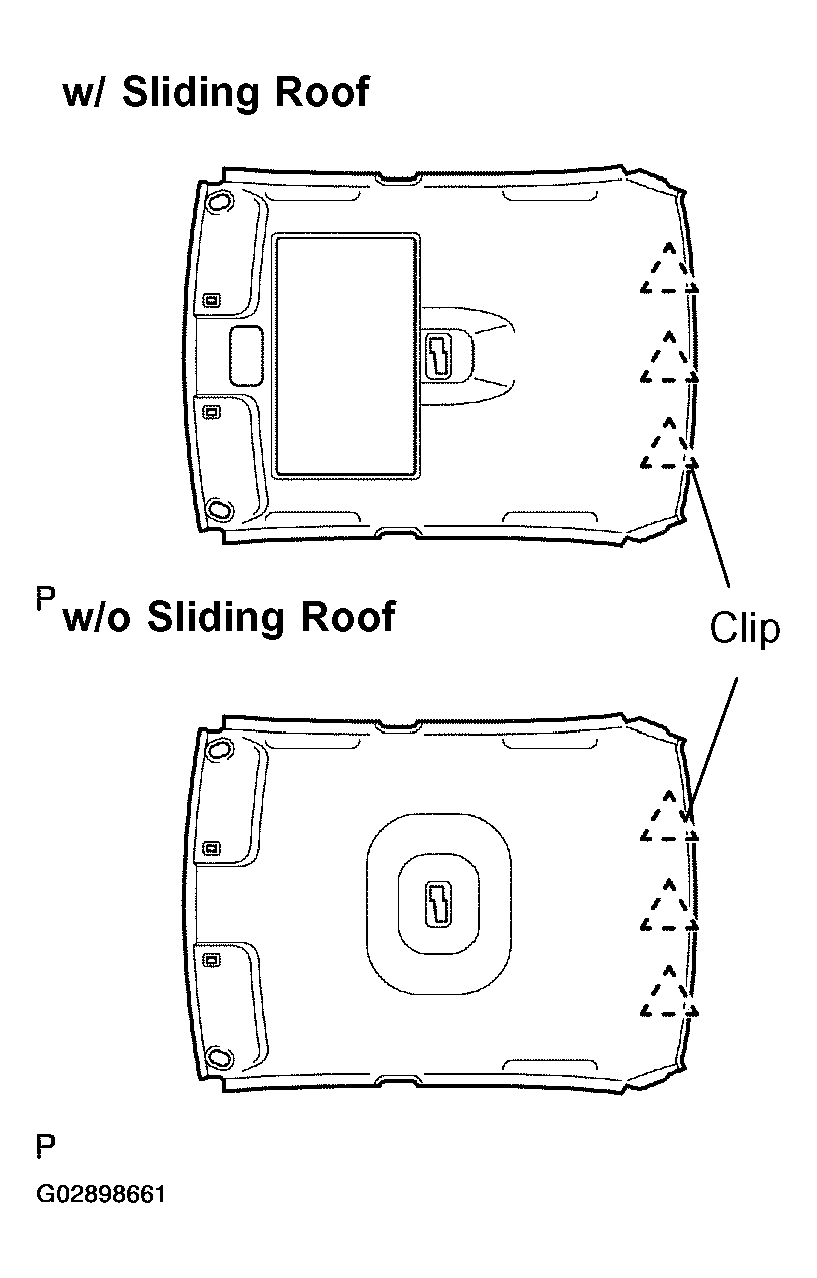

    Fig 17: Removing Roof Headlining Assy
    G02898661Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. INSTALL ROOF HEADLINING ASSY
    1. Align the markings, and then install the wire harness with tape.

      HINT:

      Be careful for dirt or foreign objects not to stick to the adhered part when peeling off the double-stick tape.

    2. Attach the roof wire harness across the adhered part.
      NOTE: Roof wire harness should be attached securely.
    3. Install the 3 clips.

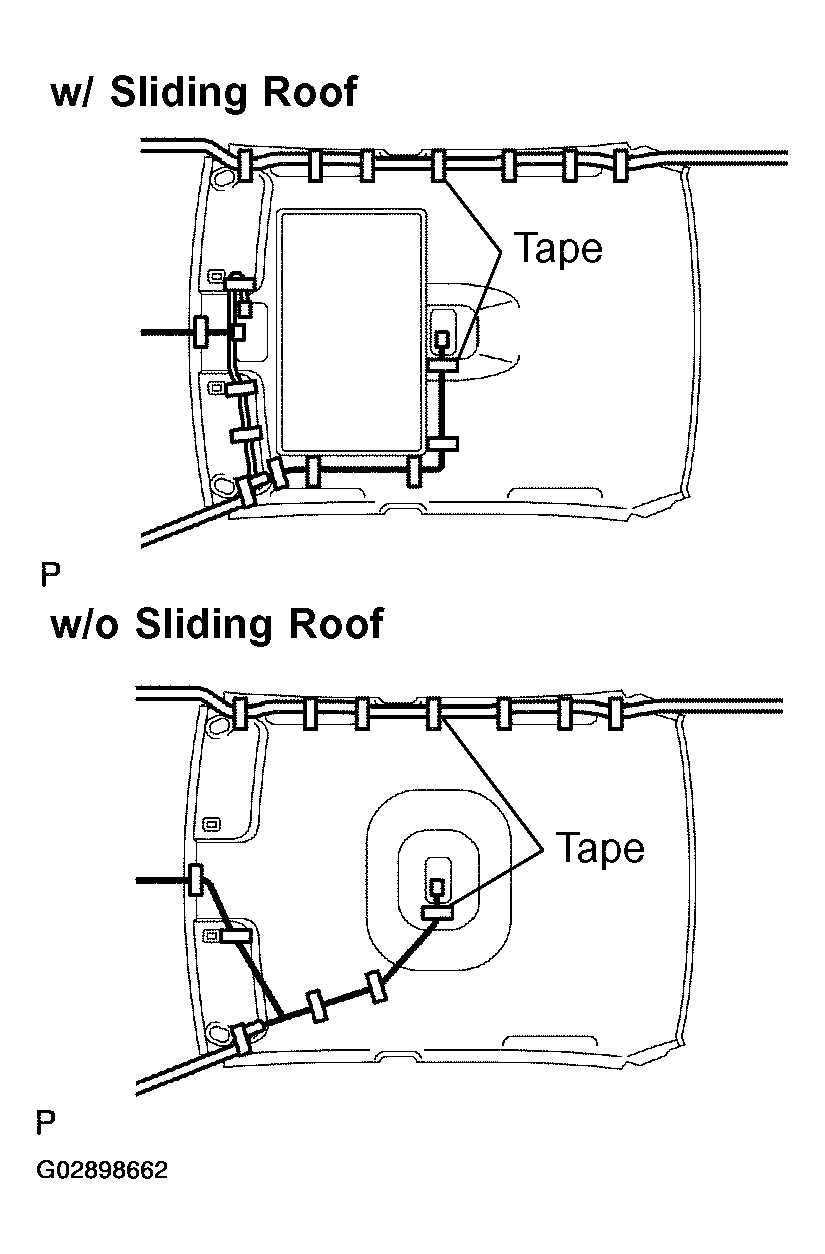

    Fig 18: Installing Roof Headlining Assy
    G02898662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. INSTALL ROOM PARTITION BOARD RH (SEPARATED TYPE REAR SEAT)
  37. INSTALL ROOM PARTITION BOARD LH (SEPARATED TYPE REAR SEAT)
  38. INSTALL REAR SEAT SIDE COVER RH (FIXED TYPE REAR SEAT)
  39. INSTALL REAR SEAT SIDE GARNISH LH (FIXED TYPE REAR SEAT)
  40. INSTALL REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT) (See  OVERHAUL (W/BENCH TYPE)  )
  41. INSTALL REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT) (See  OVERHAUL (W/SEPARATE TYPE)  )
