INSPECT TRANSMISSION WIRE (S2)

Disconnect the transmission wire connector from the transaxle.
Measure the resistance according to the value (s) in the table below.

Fig 1: Inspecting Transmission Wire (S2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

TESTER CONNECTION RESISTANCE SPECIFICATION

Tester Connection	Specified Condition 20 °C (68 °F)
6-Body ground	11 to 15 Ω

NG: Go to step 3
OK: GO TO NEXT STEP.

CHECK HARNESS AND CONNECTOR (TRANSMISSION WIRE - ECM)

Connect the transmission connector to the transaxle.
Disconnect the connector from the ECM.
Measure the resistance according to the value (s) in the table below.

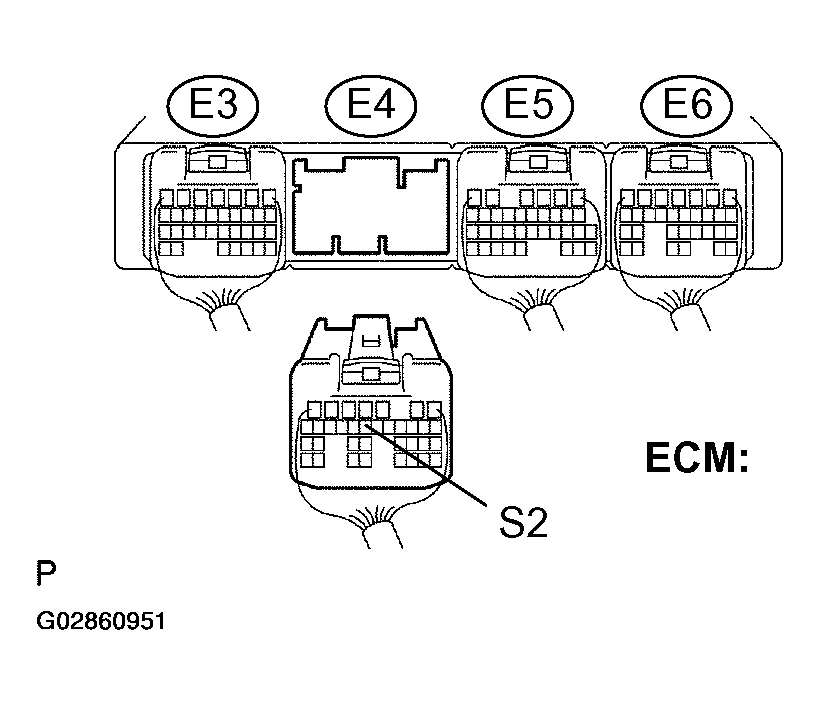

Fig 2: Checking Harness And Connector (Transmission Wire - ECM)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

TESTER CONNECTION RESISTANCE SPECIFICATION

Tester Connection	Specified Condition 20 °C (68 °F)
E4-14 (S2)-Body ground	11 to 15 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )
OK: REPLACE ECM (See REPLACEMENT )

INSPECT SHIFT SOLENOID VALVE (S2)

Remove the shift solenoid valve S2.

Measure the resistance according to the value (s) in the table below.

Standard:

TESTER CONNECTION RESISTANCE SPECIFICATION

Tester Connection	Specified Condition 20°C (68°F)
Solenoid Connector (S2)-Solenoid Body (S2)	11 to 15 Ω

Connect the positive (+) battery lead to the solenoid connector terminal, and the negative (-) battery lead to the solenoid body for checking the solenoid valve operation.

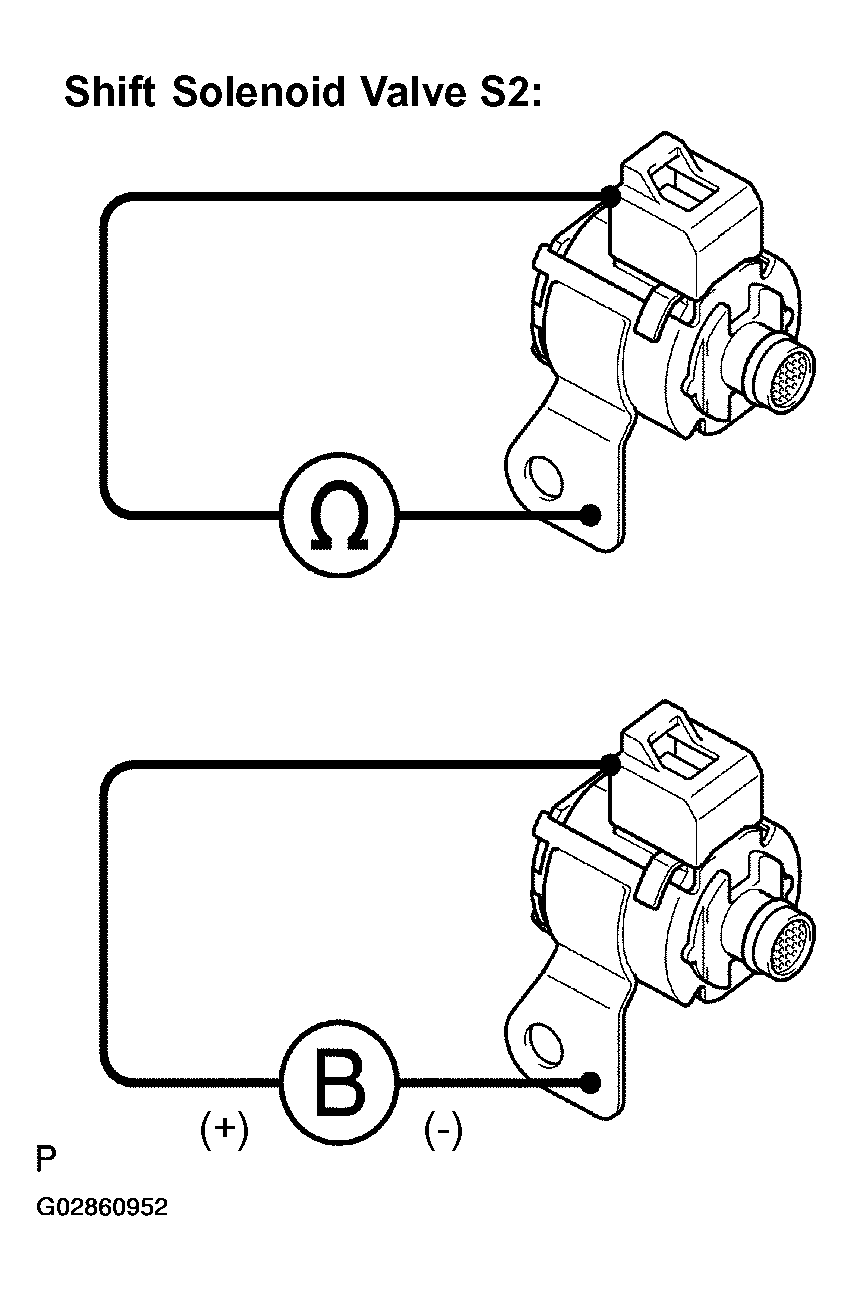

Fig 3: Inspecting Shift Solenoid Valve (S2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

The solenoid makes an operating noise.

NG: REPLACE SHIFT SOLENOID VALVE (S2)
OK: REPAIR OR REPLACE TRANSMISSION WIRE (See REPLACEMENT )
