Transmission Wire (ATM): Replacement

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE TRANSMISSION VALVE BODY ASSY (See  REPLACEMENT  )
  2. REMOVE TRANSMISSION WIRE
    1. Disconnect the transmission wire connector.
    2. Removal the bolt and transmission wire.

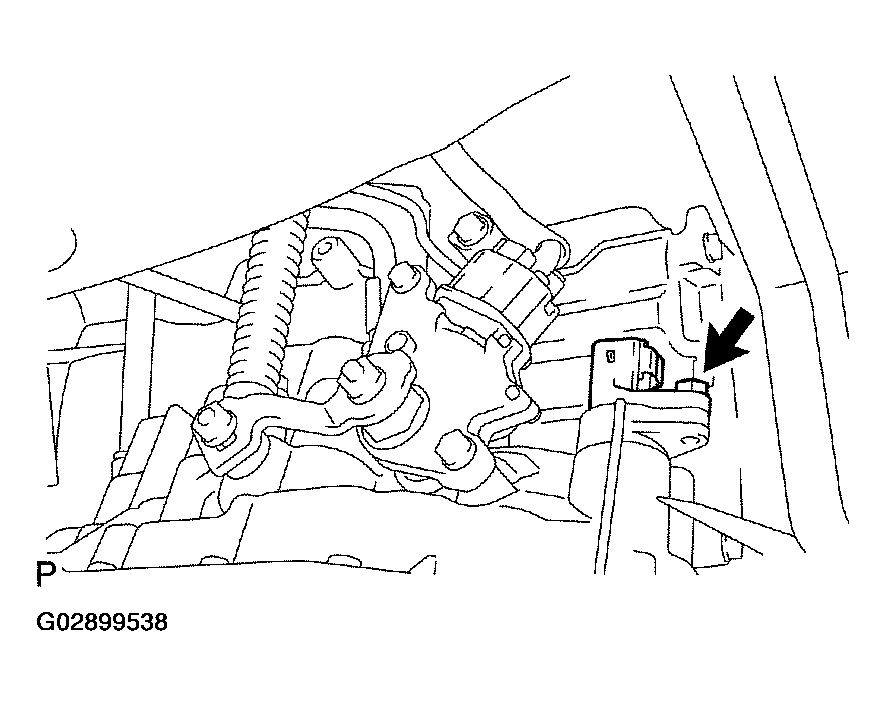

    Fig 1: Locating Transmission Wire Bolt
    G02899538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL TRANSMISSION WIRE
    1. Coat a O-ring with ATF.
    2. Install the transmission wire and bolt.

      Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

    3. Connect the transmission wire connector.
    Fig 2: Installing Transmission Wire And Bolt
    G02899539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL TRANSMISSION VALVE BODY ASSY (See  REPLACEMENT  )
