Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SHIFT SOLENOID VALVE (SL)

Remove the shift solenoid valve SL.

Measure the resistance according to the value (s) in the table below.

Standard:

TERMINAL RESISTANCE REFERENCE

Tester Connection	Specified Condition 20°C (68°F)
Solenoid Connector (SL) - Solenoid Body (SL)	11 to 15Ω

Connect the positive (+) battery lead to the solenoid connector terminal, and the negative (-) battery lead to the solenoid body for checking the solenoid valve operation.
Standard:

The solenoid valve makes an operating noise.

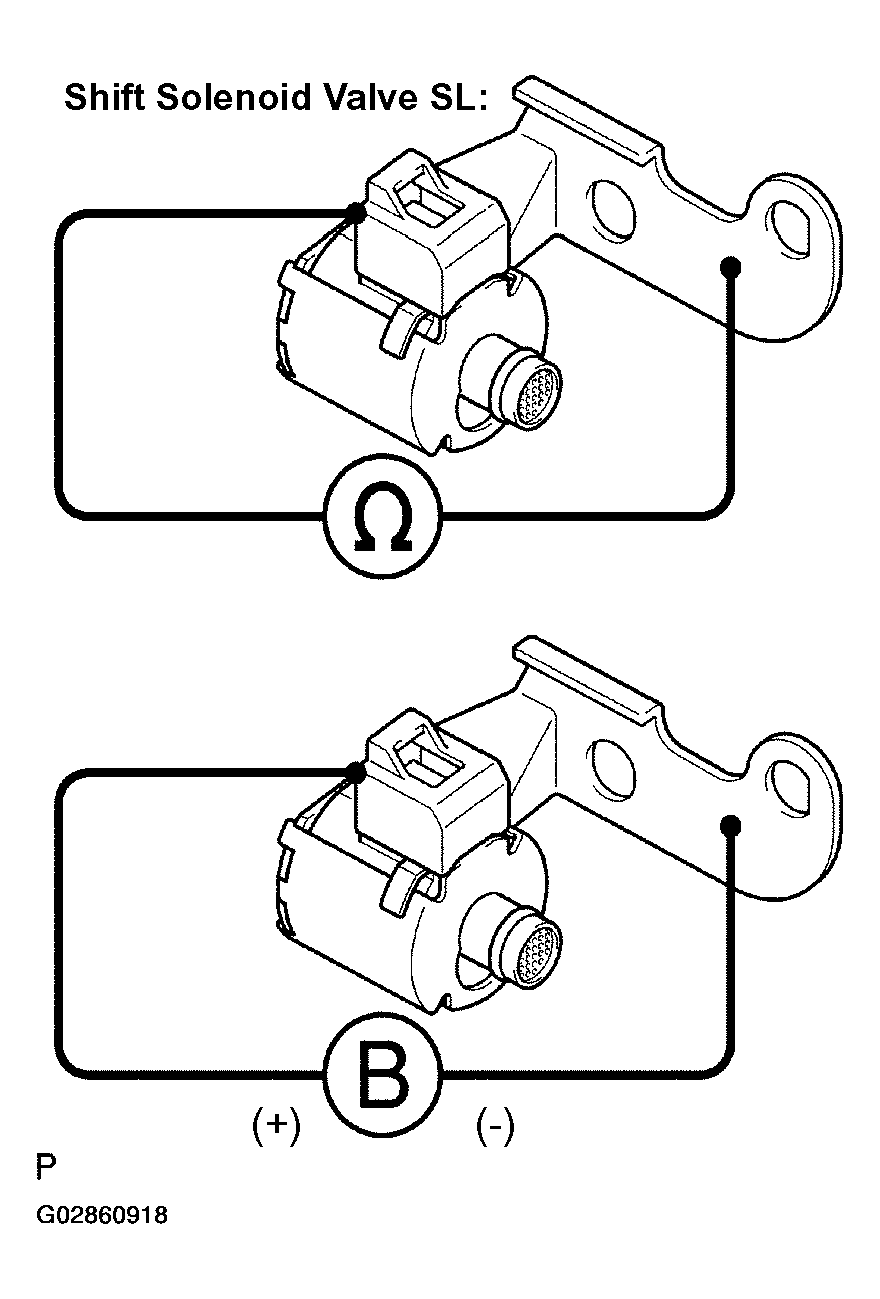

Fig 1: Inspecting Shift Solenoid Valve (SL)

NG: REPLACE SHIFT SOLENOID VALVE (SL)
OK: GO TO NEXT STEP.

INSPECT TRANSMISSION VALVE BODY ASSY (See chapter 2 in the problem symptoms table) (See PROBLEM SYMPTOMS TABLE )
1. NG: REPAIR OR REPLACE TRANSMISSION VALVE BODY ASSY (See REPLACEMENT )
2. OK: GO TO NEXT STEP.
INSPECT TORQUE CONVERTER CLUTCH ASSY (See INSPECTION )
1. NG: REPLACE TORQUE CONVERTER CLUTCH ASSY
2. OK: REPAIR AUTOMATIC TRANSAXLE ASSY (See COMPONENTS )
