Automatic Transaxle ASSY (ATM): Components

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

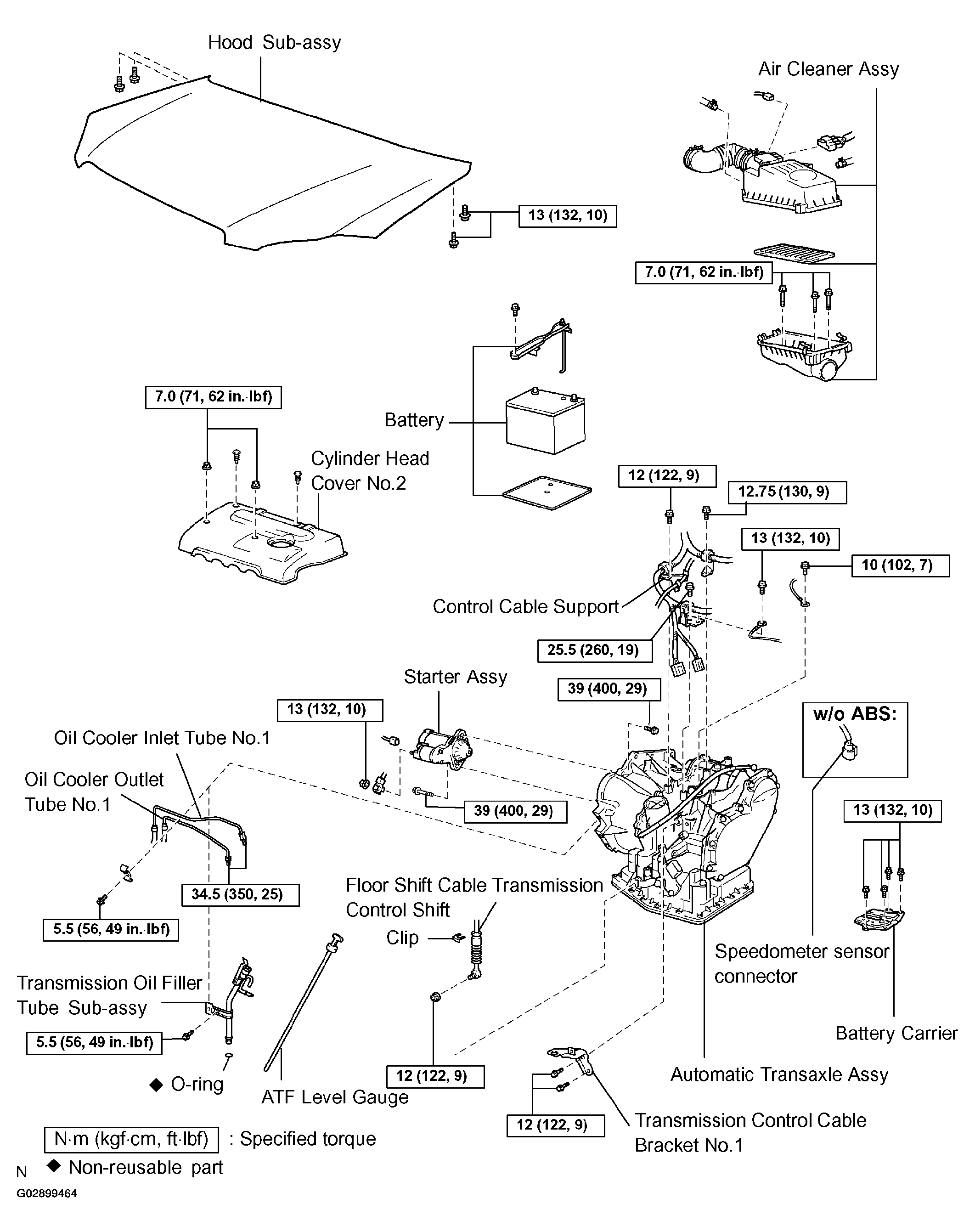

Fig 1: Exploded View Of Automatic Transaxle Assy Components (1 of 2)
G02899464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

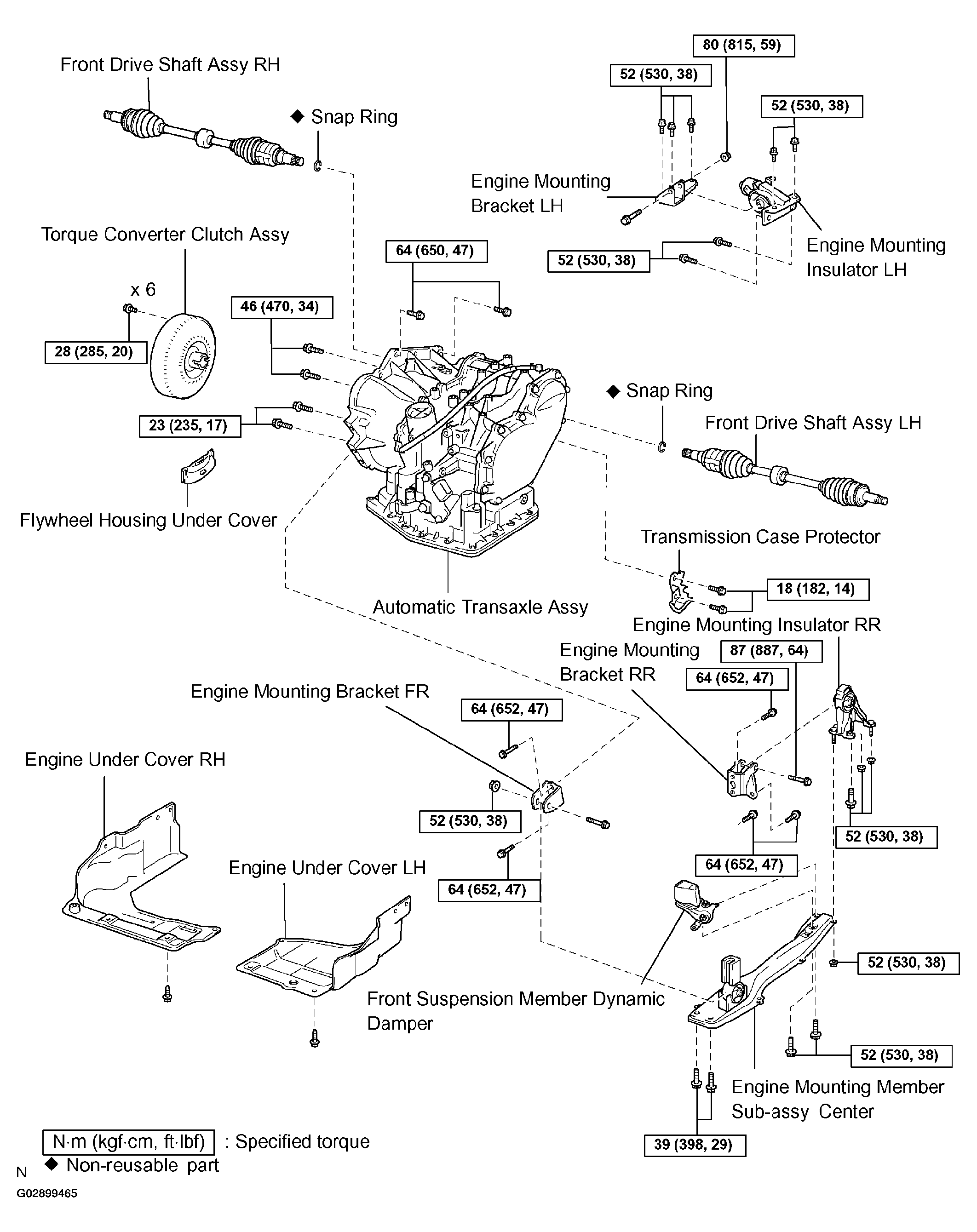

Fig 2: Exploded View Of Automatic Transaxle Assy Components (2 of 2)
G02899465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
