Inspection Procedure

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT SKID CONTROL ECU CONNECTOR (+BS TERMINAL VOLTAGE)
    1. Disconnect the skid control ECU connector.
    2. Measure the voltage between terminals +BS (2) and GND (1, 23) of skid control ECU harness side connector.

      Voltage: 10 - 14 V

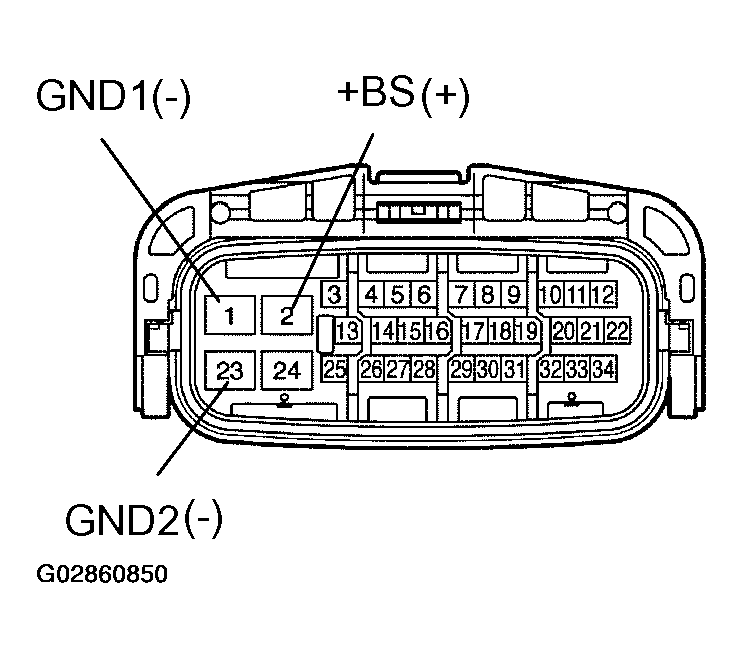

      Fig 1: Identifying Terminals +BS (2) and GND (1, 23) of skid control ECU
      G02860850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (+BM CIRCUIT)
    2. OK: GO TO NEXT STEP.
  2. RECONFIRM DTC
    1. Check the DTC (See PRE-CHECK ).

      OK:

      Normal code

    1. NG: END
    2. OK: GO TO NEXT STEP.
  3. INSPECT CONTACT CONDITION
    1. Inspect the condition of the each connector from engine room R/B to skid control ECU.

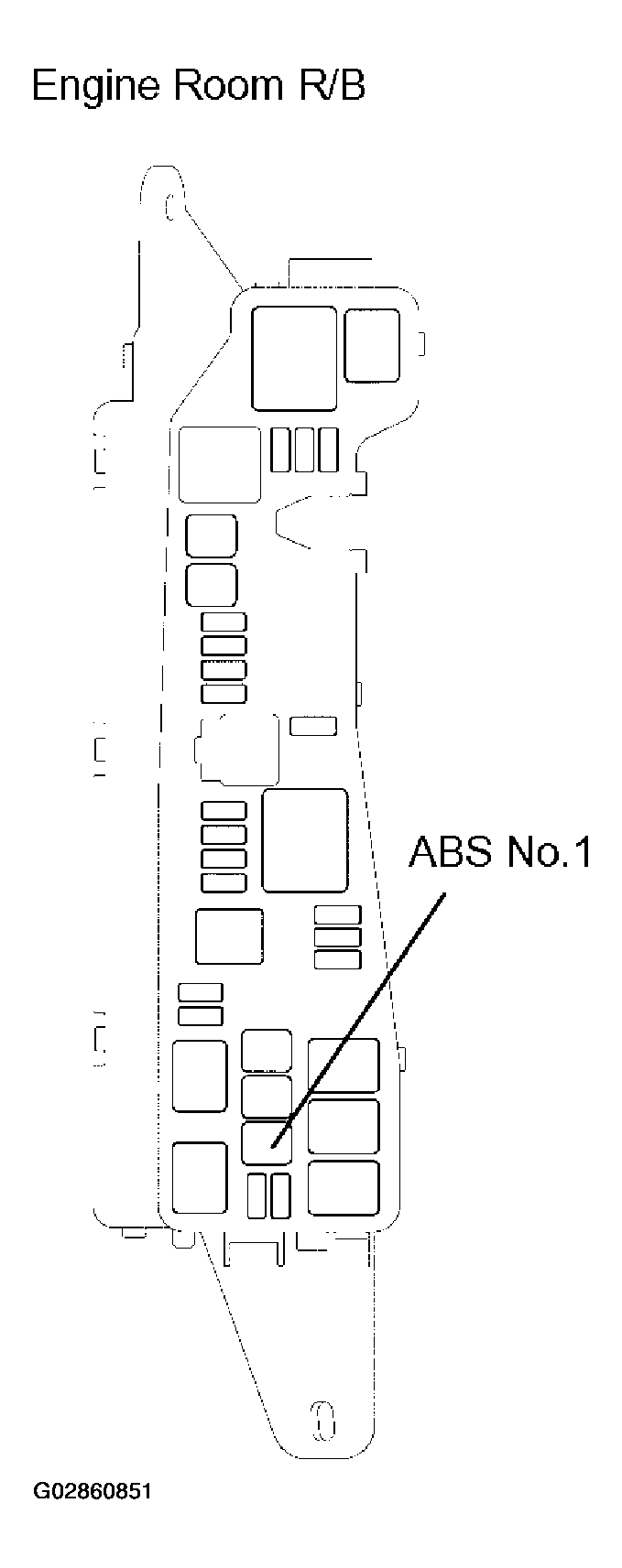

      Fig 2: Identifying ABS No.1 Fuse
      G02860851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
    2. OK: CHECK AND REPLACE BRAKE ACTUATOR ASSY (See  TERMINALS OF ECU  )
