Terminals Of Ecu

WARNING: This page is about a different car, the 2004 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Locating Terminals Of ECU
G02860825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

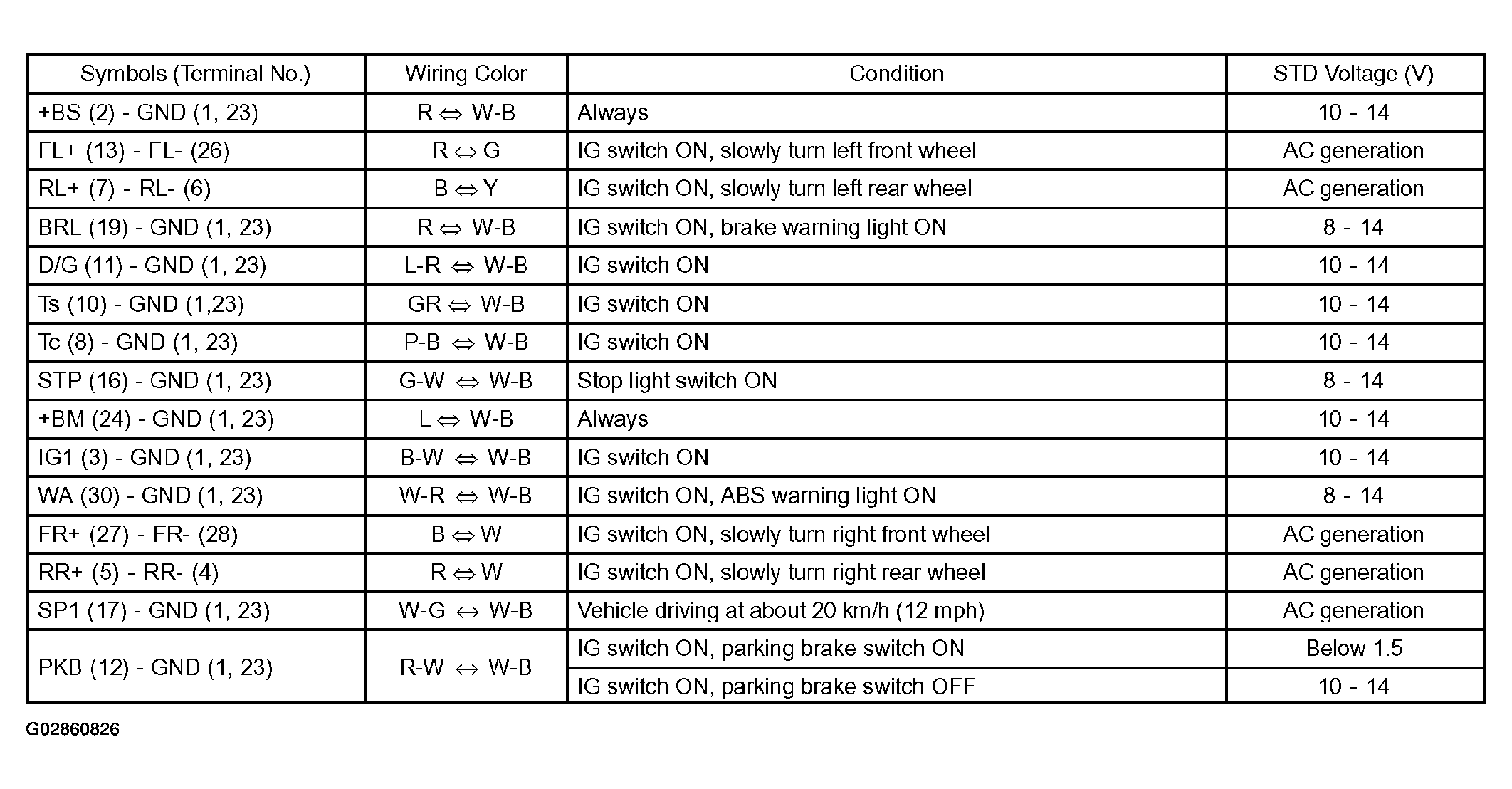

Fig 2: ECU Terminals Voltage Reference Chart
G02860826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
