Combination Meter ASSY: Overhaul

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER (SEE  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER (SEE  REPLACEMENT  )
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY (SEE  REPLACEMENT  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH (SEE  REPLACEMENT  )
5. REMOVE COMBINATION METER ASSY (SEE  REPLACEMENT  )
6. REMOVE COMBINATION METER GLASS
   1. Remove the 2 screws.
   2. Disengage the 6 claws and remove the combination meter glass.

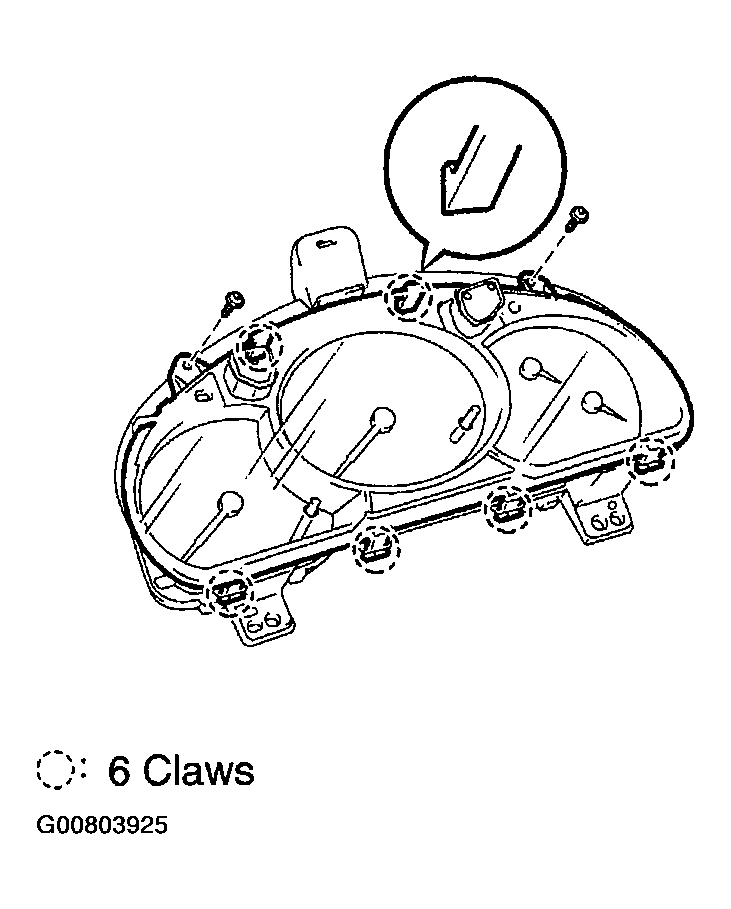

   Fig 1: Disengaging Claws & Removing Combination Meter Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
