Antenna Assembly W/Holder: Replacement

HINT:

• COMPONENTS: See COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2 (See  REPLACEMENT  )
3. REMOVE FRONT PILLAR GARNISH RH (See  REPLACEMENT  )
4. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSY LH (SEE  REPLACEMENT  )
5. REMOVE W/HOLDER ANTENNA ASSY
   1. Disconnect the connector and remove the bolt.
   2. Remove the 2 clamps.

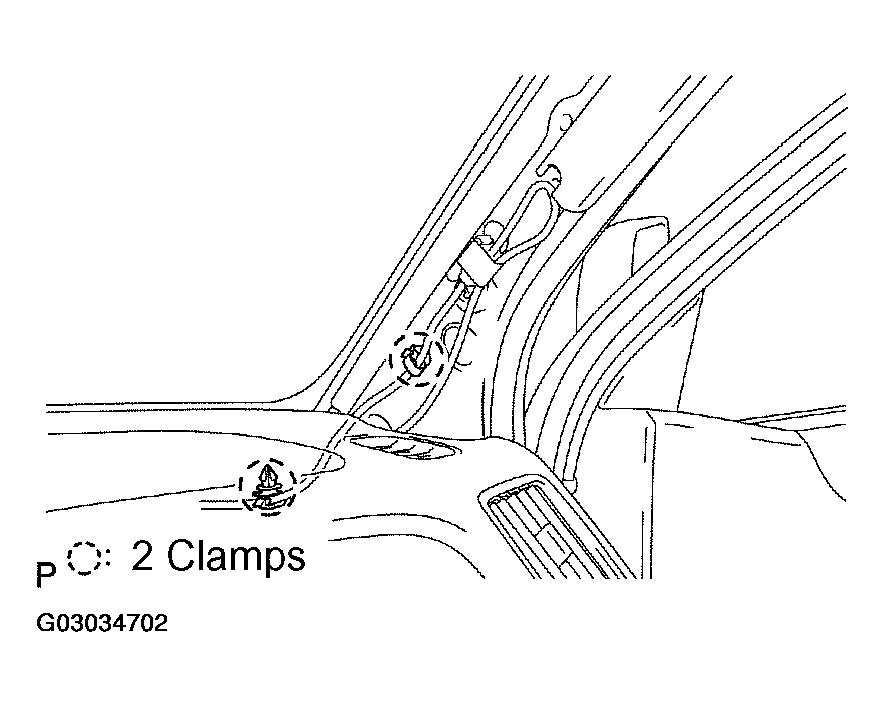

      Fig 1: Identifying W/Holder Antenna Removing Clamp

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Tie the string and tip of the cable of the w/holder antenna assy.
   4. Remove the antenna nut and ornament antenna.
      Fig 2: Tightening W/Holder Antenna Assy Using String

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the nut and w/holder antenna assy.

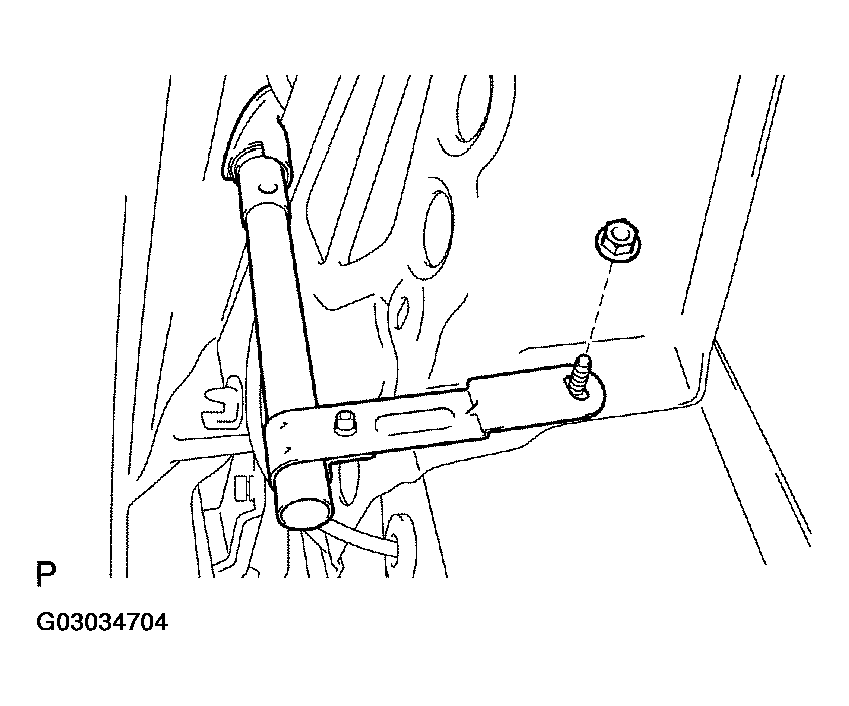

   Fig 3: Removing Nut From W/Holder Antenna

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. INSTALL W/HOLDER ANTENNA ASSY
   1. Install the w/holder antenna assy with the nut.
   2. Install the antenna nut and ornament antenna.
   3. Use the string to put the cable of the w/holder antenna assy.
   4. Install the 2 clamps.
   5. Connect the connector, install the bolt.
