Inspection Procedure

  1. INSPECT COMBINATION METER ASSY
    1. Measure the resistance according to the value (s) in the table below.

      Standard:

      COMBINATION METER ASSY TERMINAL CONTINUITY CHECK REFERENCE

      Terminal No Condition Specified condition
      C11-11 - Body ground Always Below 1 Ω
    2. Measure the voltage according to the value (s) in the table below.

      Standard:

      COMBINATION METER ASSY TERMINAL VOLTAGE CHECK REFERENCE

      Terminal No Condition Specified condition
      C11-2 - Body ground Always 10 to 14 V
      C11-1 - Body ground Ignition switch ON 10 to 14 V
      C11-13 - Body ground Ignition switch ON 10 to 14 V
      1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

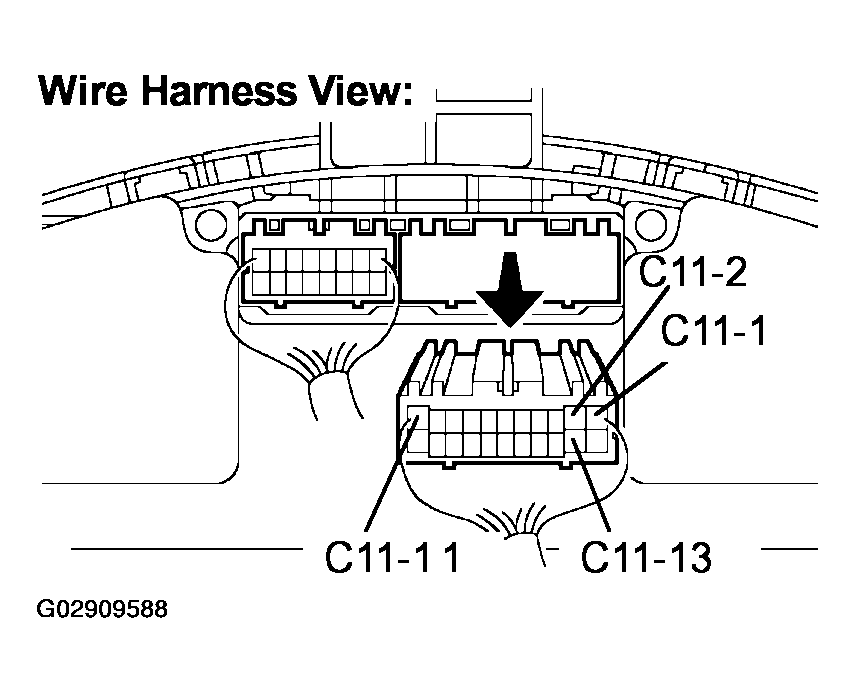

        Fig 1: Inspecting Combination Meter Assy
        G02909588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. OK: REPLACE COMBINATION METER ASSY (See  OVERHAUL  )
