Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: When replacing the master cylinder solenoid, perform zero point CALIBRATION  .

HINT:

Start the inspection from step 1 when using the hand-held tester and start from step 3 when not using the hand-held tester.

  1. READ VALUE OF HAND-HELD TESTER (MOMENTARY INTERRUPTION OF FRONT SPEED SENSOR) (SEE  CHECK FOR INTERMITTENT PROBLEMS   )
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position and push the hand-held tester main switch ON.
    3. Select "DATA LIST" mode on the hand-held tester.
      DATA LIST

      Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
      SPD SEN FR Speed sensor open detection (FR/OPN DET or NORMAL OPN DET: Momentary interruption
      NORMAL: Normal      		 -
      SPD SEN FL Speed sensor open detection (FL)/OPN DET or NORMAL OPEN DET: Momentary interruption
      NORMAL: Normal      		 -
    4. Check for any momentary interruption in the wire harness and connector corresponding to a DTC.

    OK:

    There are no momentary interruptions.

    HINT:

    Perform the above inspection before removing the sensor and connector.

    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPEED SENSOR CIRCUIT)
    2. OK: GO TO NEXT STEP
  2. READ VALUE OF HAND-HELD TESTER (FRONT SPEED SENSOR)
    ITEM, VEHICLE CONDITION/TEST DETAILS AND DIAGNOSTIC NOTE

    Item Measurement Item/Range (Display) Normal Condition Diagnostic Note
    WHEEL SPD FR Wheel speed sensor (FR) reading / Min.: 0 mph (0 km/h), max.: 202 mph (326 km/h) Actual wheel speed Similar speed as indicated on speedometer
    WHEEL SPD FL Wheel speed sensor (FL) reading/ min.: 0 mph (0 km/h), max.: 202 mph (326 km/h) Actual wheel speed Similar speed as indicated on speedometer
    1. Check that there is no difference between the speed value output from the speed sensor displayed on the hand-held tester and the speed value displayed on the speedometer when driving the vehicle.

    OK:

    The speed value output from the speed sensor displayed on the hand-held tester is the same as the actual vehicle speed.

    1. NG: Go to step   4
    2. OK: GO TO NEXT STEP
  3. PERFORM TEST MODE (SIGNAL CHECK) (SEE  TEST MODE PROCEDURE   )
    1. Check if test mode (signal check) DTCs are detected.

      Result:

      RESULT DESCRIPTION

      Test mode (signal check) DTC is output A
      Test mode (signal check) DTC is not output B
    1. B: Go to step   9
    2. A: GO TO NEXT STEP
  4. INSPECT FRONT SPEED SENSOR INSTALLATION
    1. Check the speed sensor installation.

      OK:

      • The installation bolt is tightened properly. Torque: 8.3 N m (85 kgf cm, 73 in.lbf)
      • There is no clearance between the sensor and the front steering knuckle.
    1. NG: INSTALL FRONT SPEED SENSOR CORRECTLY OR REPLACE FRONT SPEED SENSOR (SEE  SPEED SENSOR FRONT LH  )
      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).
    2. OK: GO TO NEXT STEP
      Fig 1: Inspecting Front Speed Sensor Installation
      G02584505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT SPEED SENSOR TIP
    1. Remove the front speed sensor (SEE SPEED SENSOR FRONT LH ).
    2. Check the sensor tip.

      OK:

      No scratches or foreign matter on the sensor tip.

    1. NG: CLEAN OR REPLACE  SPEED SENSOR FRONT LH
      NOTE: Check the speed sensor signal after cleaning/replacement (see TEST MODE PROCEDURE  ).
    2. OK: GO TO NEXT STEP
  6. INSPECT FRONT SPEED SENSOR AND SKID CONTROL SENSOR WIRE
    1. Install the front speed sensor.
    2. Turn the ignition switch off.
    3. Disconnect the front speed sensor connector.
    4. Measure the resistance according to the value(s) in the table below.
      Fig 2: Identifying Front Speed Sensor Connector Terminals
      G02584506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:RH:

      TESTER CONNECTION AND SPECIFIED CONDITION STANDARD:RH

      Tester Connection Specified Condition
      A10-2 (FR+) - Body ground 10 kΩ or higher
      A10-1 (FR-) - Body ground 10 kΩ or higher

      LH:

      TESTER CONNECTION AND SPECIFIED CONDITION LH

      Tester Connection Specified Condition
      A9-2 (FL+) - Body ground 10 kΩ or higher
      A9-1 (FL-) - Body ground 10 kΩ or higher

      Skid Control Sensor Wire:

    5. Disconnect the skid control sensor wire.
    6. Measure the resistance according to the value(s) in the table below.
      Fig 3: Identifying Skid Control Sensor Wire Connectors
      G02584507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:RH:

      TESTER CONNECTION AND SPECIFIED CONDITION STANDARD:RH

      Tester Connection Specified Condition
      A10 ("A"-2) - A10 ("B"-2) Below 1 Ω
      A10 ("A"-2) - A10 ("B"-1) 10 kΩ or higher
      A10 ("A"-2) - Body ground 10 kΩ or higher
      A10 ("A"-1) - A10 ("B"-1) Below 1 Ω
      A10 ("A"-1) - A10 ("B"-2) 10 kΩ or higher
      A10 ("A"-1) - Body ground 10 kΩ or higher

      LH:

      TESTER CONNECTION AND SPECIFIED CONDITION LH

      Tester Connection Specified Condition
      A9 ("A"-2) - A9 ("B"-2) Below 1 Ω
      A9 ("A"-2) - A9 ("B"-1) 10 kΩ or higher
      A9 ("A"-2) - Body ground 10 kΩ or higher
      A9 ("A"-1) - A9 ("B"-1) Below 1 Ω
      A9 ("A"-1) -A9 ("B"-2) 10 kΩ or higher
      A9 ("A"-1) - Body ground 10 kΩ or higher
    1. NG: REPLACE FRONT SPEED SENSOR OR SKID CONTROL SENSOR WIRE
      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).
    2. OK: GO TO NEXT STEP
  7. CHECK HARNESS AND CONNECTOR (BETWEEN SKID CONTROL ECU AND FRONT SPEED SENSOR) ( HOW TO PROCEED WITH TROUBLESHOOTING  )
    1. Disconnect the skid control ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard: RH:

      TESTER CONNECTION AND SPECIFIED CONDITION STANDARD: RH

      Tester Connection Specified Condition
      S28-3 (FR+) - A10-2 (FR+) Below 1 Ω
      S28-3 (FR+) - Body ground 10 kΩ or higher
      S28-17 (FR-) - A10-1 (FR-) Below 1 Ω
      S28-17 (FR-) - Body around 10 kΩ or higher

      LH:

      TESTER CONNECTION AND SPECIFIED CONDITION LH

      Tester Connection Specified Condition
      S28-18 (FL+) - A9-2 (FL+) Below 1 Ω
      S28-18 (FL+) - Body ground 10 kΩ or higher
      S28-4 (FL-) - A9-1 (FL-) Below 1 Ω
      S28-4 (FL-) - Body ground 10 kΩ or higher
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

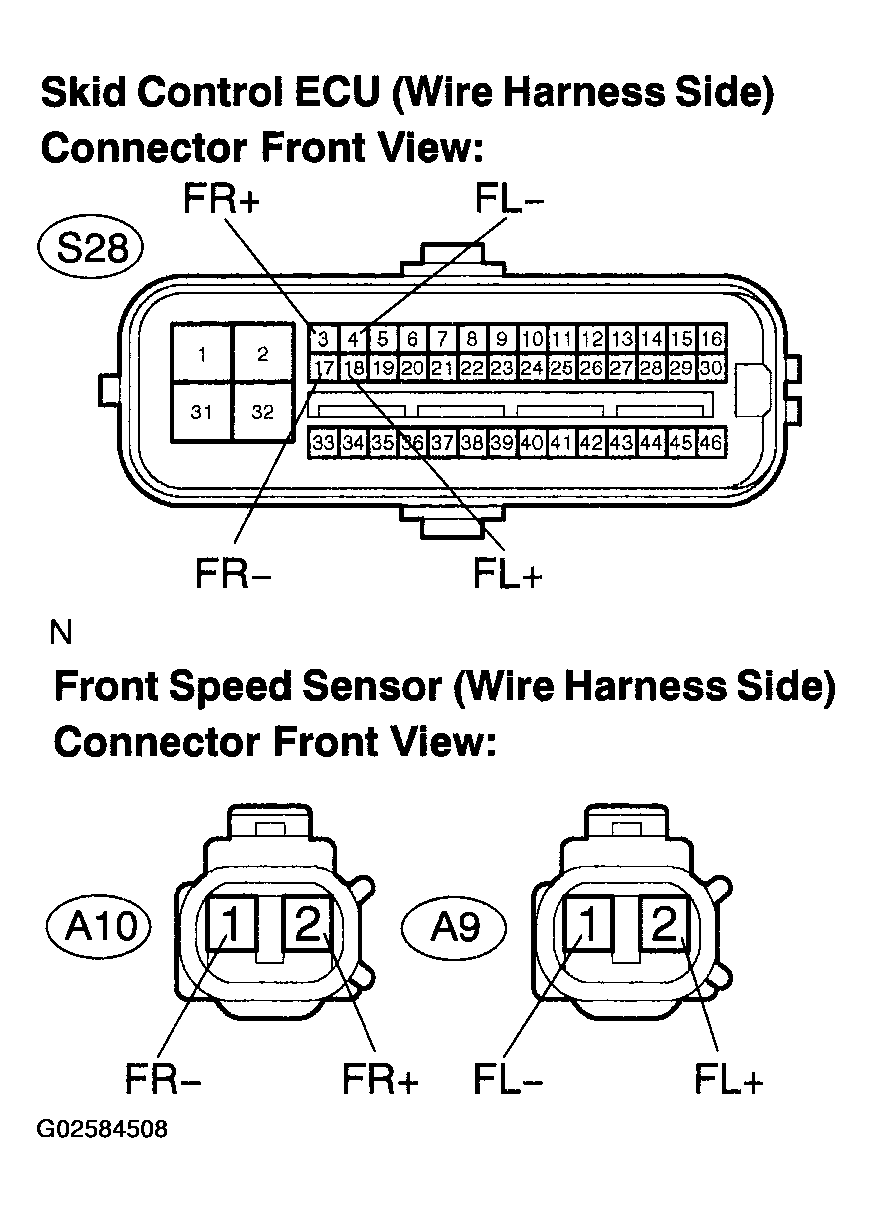

      Fig 4: Identifying Connectors (Skid Control ECU And Front Speed Sensor)
      G02584508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. OK: GO TO NEXT STEP
  8. INSPECT MASTER CYLINDER SOLENOID
    1. Reconnect the skid control ECU connector.
    2. Turn the ignition switch to the ON position.
    3. Measure the voltage according to the value(s) in the table below.

      Standard:RH:

      TESTER CONNECTION AND SPECIFIED CONDITION STANDARD:RH

      Tester Connection Specified Condition
      A10-2(FR+)-Body ground 7.5 to 12 V

      LH:

      TESTER CONNECTION AND SPECIFIED CONDITION LH

      Tester Connection Specified Condition
      A9-2 (FL+) - Body ground 7.5 to 12 V
    1. NG: REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )
      Fig 5: Inspecting Master Cylinder Solenoid
      G02584509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. OK: GO TO NEXT STEP
  9. RECONFIRM PTC
    1. Clear the DTCs (see DTC CHECK/CLEAR  ).
    2. Drive the vehicle at a speed of approximately 20 mph (32 km/h) or more for 60 seconds or more.
    3. Check if the same pending DTCs are detected (see DTC CHECK/CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

      Result:

      RESULT DESCRIPTION (1 OF 2)

      DTC is output A
      DTC is not output (When troubleshooting in accordance with the DTC CHART.) B
      DTC is not output (When troubleshooting in accordance with the PROBLEM SYMPTOMS TABLE.) C
    1. B: END
    2. C: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
    3. A: GO TO NEXT STEP
  10. REPLACE FRONT SPEED SENSOR
    1. Replace the SPEED SENSOR FRONT LH .
      NOTE: Check the speed sensor signal after replacement (see TEST MODE PROCEDURE  ).

      NEXT

  11. RECONFIRM DTC
    1. Clear the DTCs (see DTC CHECK/CLEAR  ).
    2. Drive the vehicle at a speed of approximately 20 mph (32 km/h) or more for 60 seconds or more.
    3. Check if the same pending DTCs are detected (see DTC CHECK/CLEAR  ).

      HINT:

      Reinstall the sensors, connectors, etc. and restore the previous vehicle conditions before rechecking for DTCs.

      Result:

      RESULT DESCRIPTION (2 OF 2)

      DTC is output A
      DTC is not output B
    1. B: END
    2. A: GO TO NEXT STEP
  12. INSPECT SPEED SENSOR ROTOR
    1. Remove the front axle w/ ABS rotor bearing assy (see REPLACEMENT ).
    2. Check the sensor rotor.

      OK:

      No scratches, oil, or foreign matter on the rotors.

    1. NG: CLEAN OR REPLACE FRONT AXLE W/ ABS ROTOR BEARING ASSY (SPEED SENSOR ROTOR) ( REPLACEMENT  )
      NOTE: Check the speed sensor signal after cleaning/replacement (see TEST MODE PROCEDURE  ).
    2. OK: GO TO NEXT STEP

      REPLACE MASTER CYLINDER SOLENOID (SEE  OVERHAUL  )
