Front Seat Belt With PRETENSIONER: Disposal

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

When scrapping vehicles equipped with a seat belt pretensioner or disposing of a front seat outer belt (with seat belt pretensioner) always first active the seat belt pretensioner in accordance with the procedure described below. If any abnormality occurs in the seat belt pretensioner operation, contact the SERVICE DEPT. of the TOYOTA MOTOR SALES, U.S.A., INC. When disposing of a front seat outer belt (with seat belt pretensioner) activated in a collision, follow the same procedure given in step  d in "DISPOSAL".

CAUTION:
  • Never dispose of front seat outer belt which has an inactivated pretensioner.
  • The seat belt pretensioner produces a sizeable exploding sound when it activates, so perform the operation out-of-door and where it will not create a nuisance to nearby residents.
  • When activating a front seat outer belt (with seat belt pretensioner), perform the operation at least 10 m (33 ft) away from the front seat outer belt.
  • Use gloves and safety glasses when handling a front seat belt with activated pretensioner.
  • Always wash your hands with water after completing the operation.
  • Do not apply water, etc. to a front seat outer belt with activated pretensioner.
  • When activating the seat belt pretensioner, always use the specified SST. (SRS Airbag Deployment Tool) Perform the operation in a place away from electrical noise.

SST 09082-00700

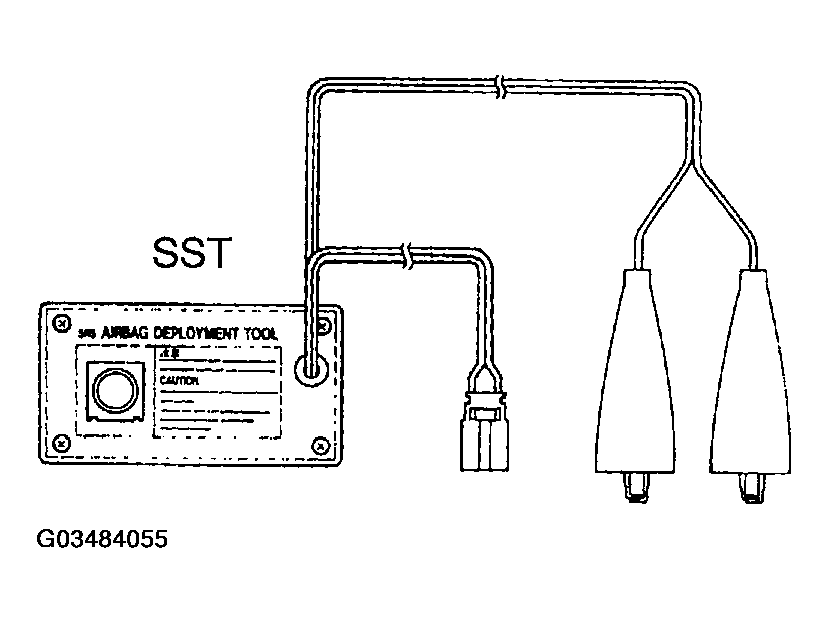

Fig 1: Checking Function Of SST
G03484055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. DISPOSE FRONT SEAT OUTER BELT ASSY RH (WHEN SCRAPPING VEHICLE DEPLOYMENT METHOD)

    HINT:

    Check that the battery positive voltage is above 12 V.

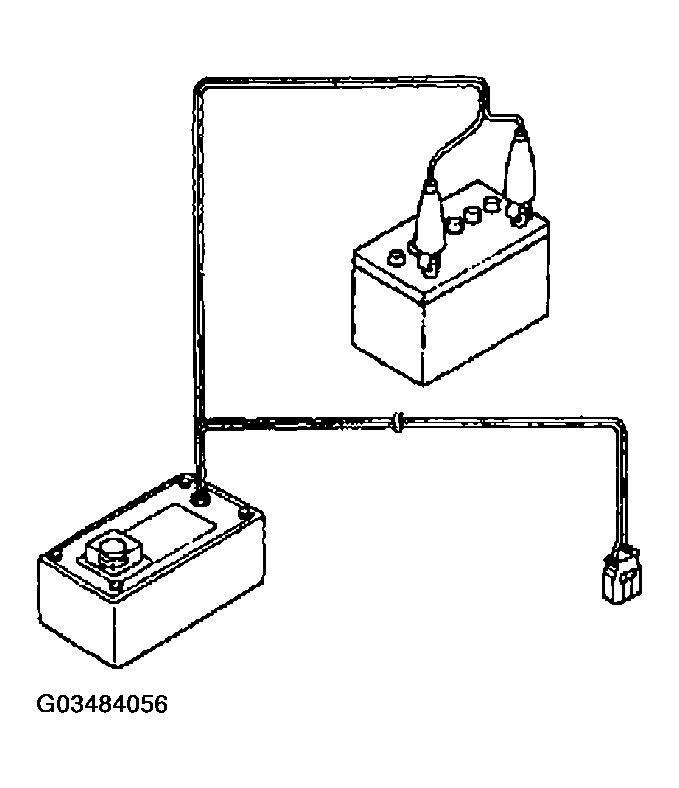

    Fig 2: Checking Battery Positive Voltage Is Above 12 V
    G03484056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check functioning of SST.
      CAUTION: When activating the seat belt pretensioner, always use a specified SST.

      SST 09082-00700,09082-00770

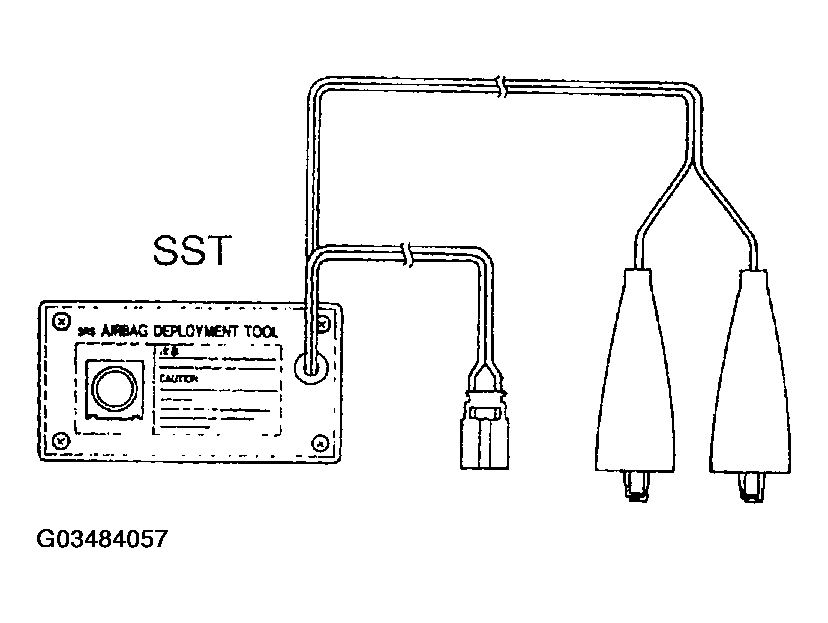

      Fig 3: Checking Function Of SST
      G03484057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the SST to the battery.

        Connect the red clip of the SST to the battery positive (+) terminal and the black clip to the battery negative (-) terminal.

        HINT:

        Do not connect the yellow connector which will be connected to the seat belt pretensioner.

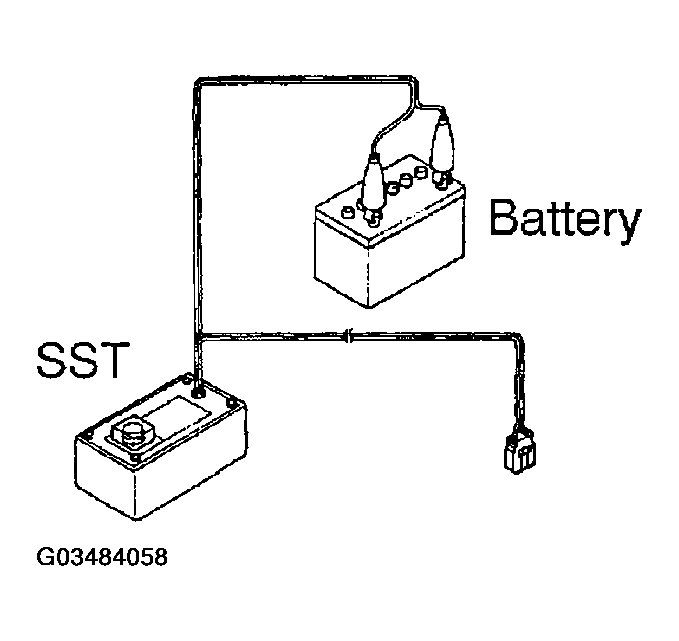

        Fig 4: Connecting SST To Battery
        G03484058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Check functioning of SST.

        Press the SST activation switch, and check that the LED of the SST activation switch lights up.

      CAUTION: If the LED lights up when the activation switch is not pressed, the SST probably malfunctions, so definitely do not use the SST.

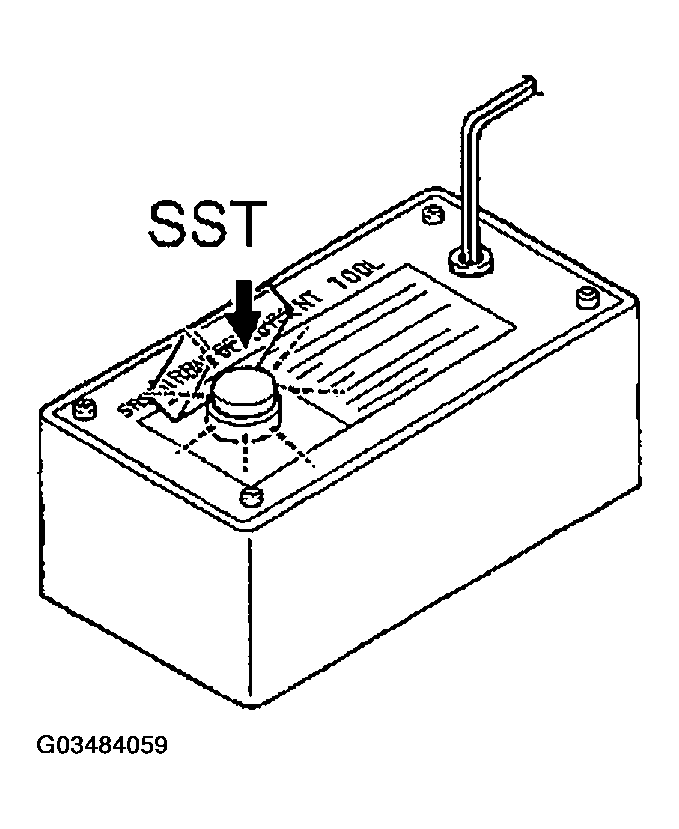

      Fig 5: Identifying SST Activation Switch
      G03484059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the pretensioner connector.
      1. Remove the front door scuff plate RH (See REPLACEMENT ) .
      2. Remove the rear door scuff plate RH (See REPLACEMENT ) .
      3. Remove the front door opening trim weather strip RH (See REPLACEMENT ) .
      4. Remove the rear door opening trim weather strip RH (See REPLACEMENT ) .
      5. Remove the center pillar garnish lower RH (See REPLACEMENT ) .
      6. Remove the center pillar garnish upper RH (See REPLACEMENT ) .
      7. Disconnect the pretensioner connector as shown in Fig 6.

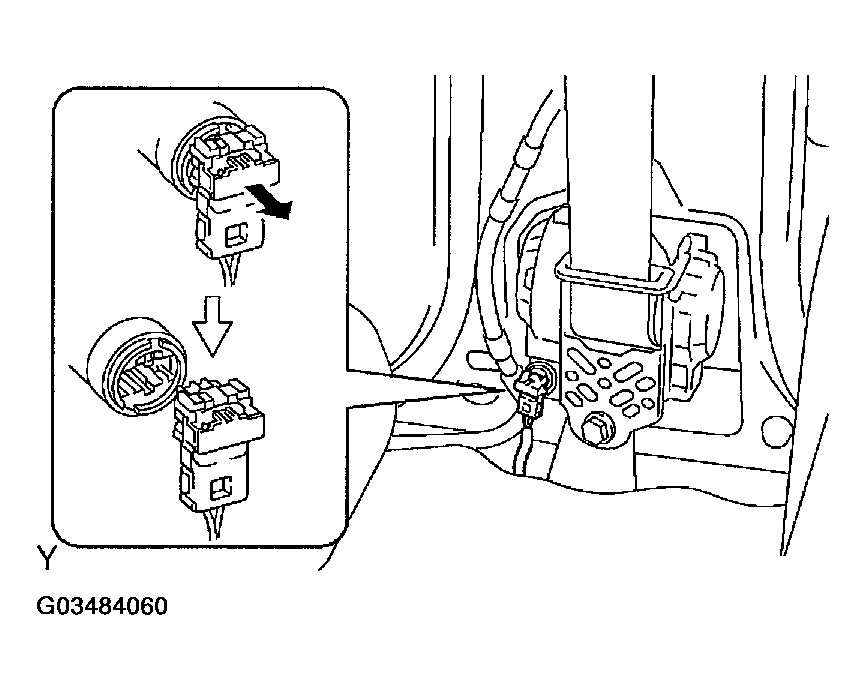

        8. Fig 6: Disconnecting Pretensioner Connector
        G03484060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the SST.
      1. Install the floor anchor of the seat belt.
      2. Connect the 2 SSTs, then connect them to the seat belt pretensioner.

        SST 09082-00700,09082-00770

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

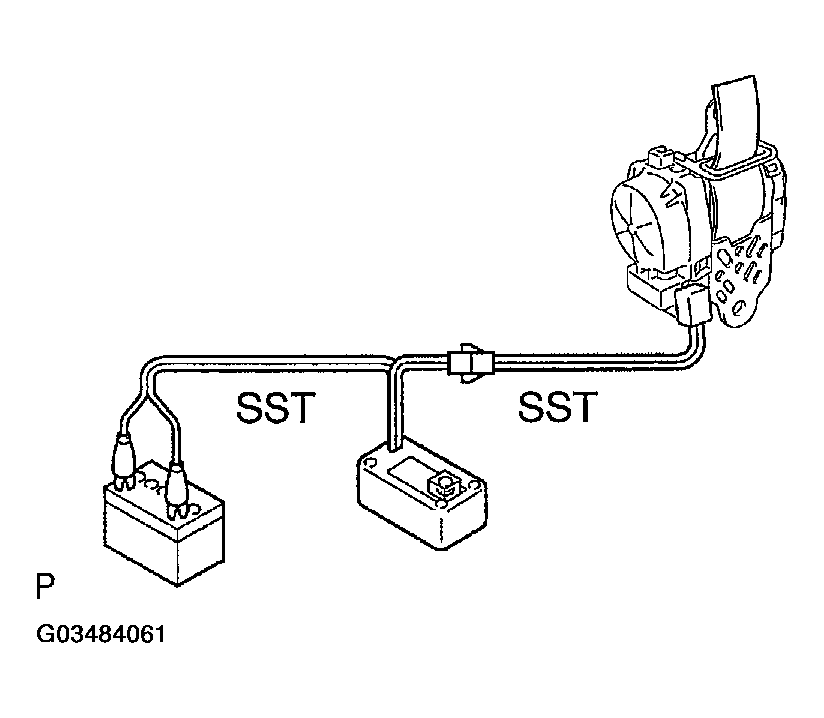

        Fig 7: Connecting 2 SSTs To Seat Belt Pretensioner
        G03484061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Move the SST at least 10 m (33 ft) away from the front of the vehicle.
      4. Close all the doors and windows of the vehicle.
        NOTE: Take care not to damage the SST wire harness.
      5. Connect the SST red clip to the battery positive (+) terminal and the black clip to the negative (-) terminal.

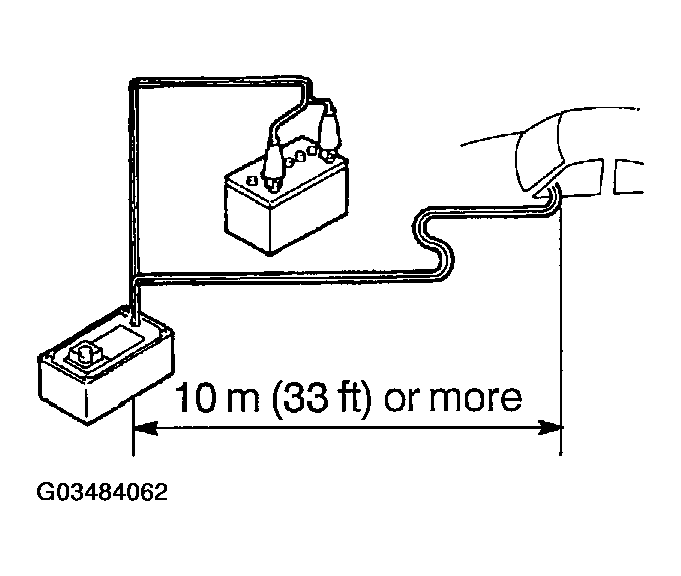

        Fig 8: Moving SST At Least 10 M (33 Ft) Away From Front Of Vehicle
        G03484062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Activate the seat belt pretensioner.
      1. Confirm that no one is inside the vehicle or within 10 m (33 ft) area around the vehicle.
      2. Press the SST activation switch and activate the seat belt pretensioner.

      HINT:

      The seat belt pretensioner operates simultaneously with the LED of the SST activation switch lighting up.

    5. Dispose of the front seat outer belt (with seat belt pretensioner).
    CAUTION:
    • The rear outer belt is very hot when the seat belt pretensioner is activated, so leave it alone for at least 30 minutes after activation.
    • Use gloves and safety glasses when handling a front seat outer belt with activated seat belt pretensioner.
    • Always wash your hands with water after completing the operation.
    • Do not apply water, etc. to a front seat outer belt with activated seat belt pretensioner.

    HINT:

    When scrapping a vehicle, activate the seat belt pretensioner and scrap the vehicle with activated front seat outer belt being installed.

  2. DISPOSE FRONT SEAT OUTER BELT ASSY RH (WHEN DISPOSING OF AIRBAG ASSEMBLY DEPLOYMENT METHOD)
    NOTE:
    • When disposing of a front seat outer belt (with seat belt pretensioner) only, never use the customer's vehicle to activate the seat belt pretensioner.
    • Be sure to follow the procedure given in step  d when activating the seat belt pretensioner.
    1. Remove the front seat outer belt (See REPLACEMENT  ).

      HINT:

      Cut the belt near the seat belt retractor.

    2. Check functioning of SST (See step  a).

      SST 09082-00700,09082-00770

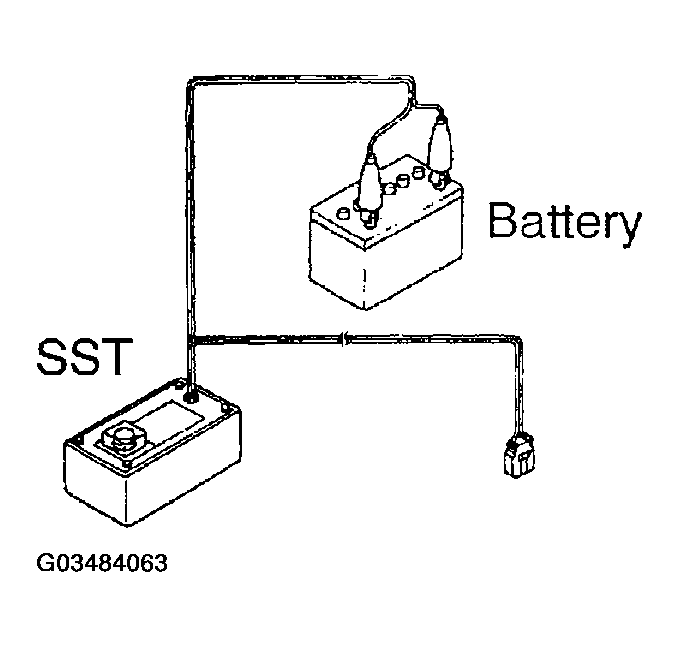

      Fig 9: Checking Functioning Of SST
      G03484063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the SST.
      1. Connect the 2 SSTs, then connect them to the seat belt pretensioner.

        SST 09082-00700,09082-00770

        NOTE: To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the twin lock.

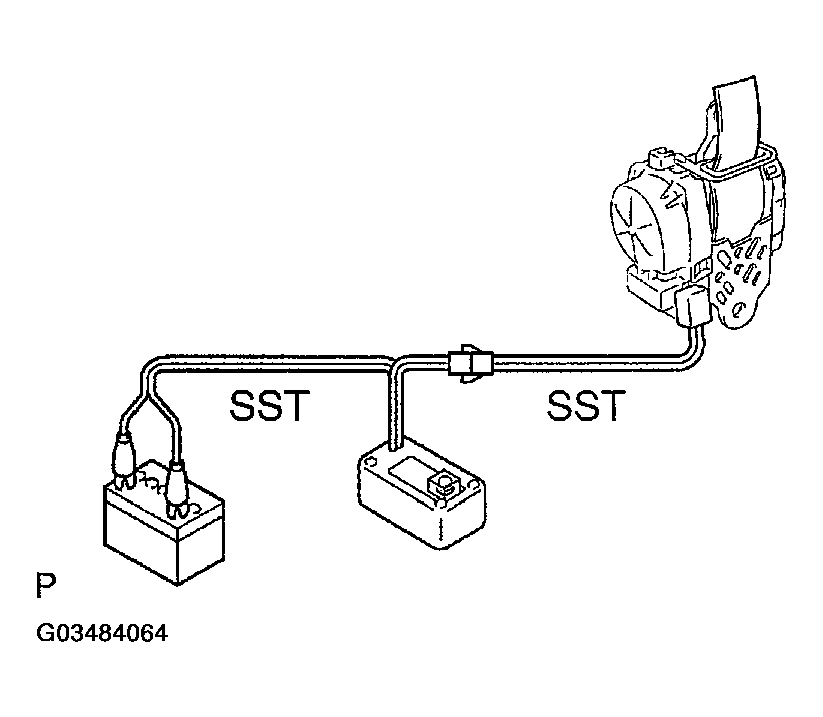

        Fig 10: Connecting 2 SSTs & Seat Belt Pretensioner
        G03484064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Place the front seat outer belt on the ground and cover it with the disc wheel with tire.
        NOTE: Place the front seat outer belt as shown in Fig 11.

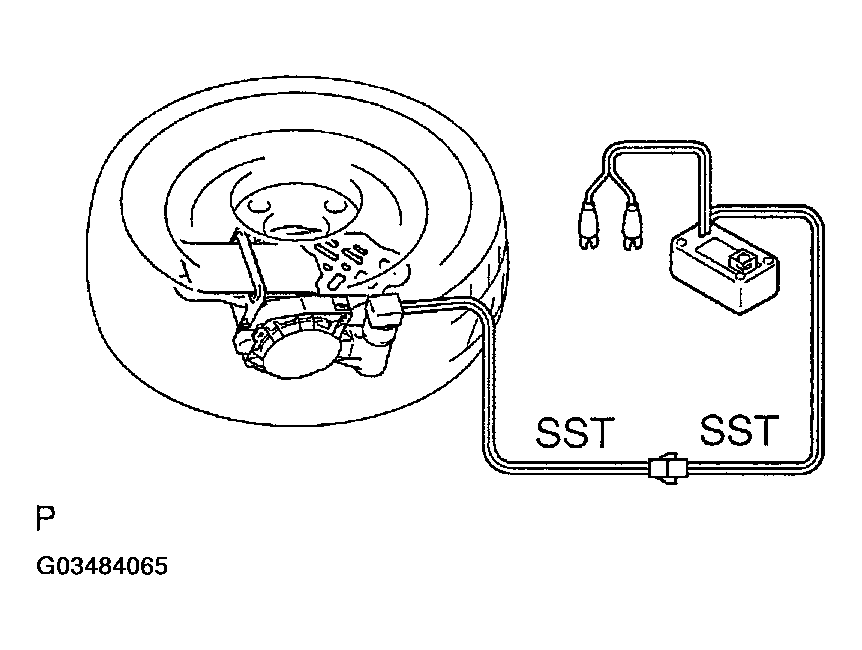

        3. Fig 11: Placing Front Seat Outer Belt On Ground And Cover It With Disc Wheel With Tire
        G03484065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Move the SST at least 10 m (33 ft) away from the disc wheel.

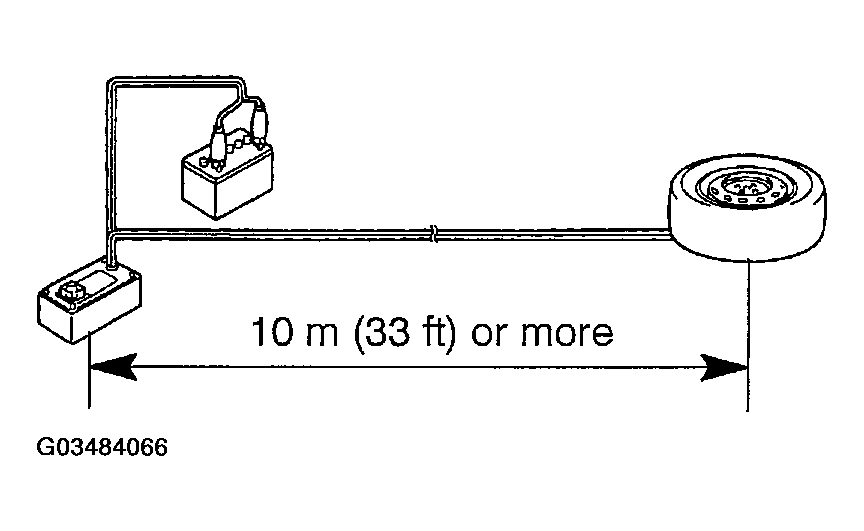

        4. Fig 12: Moving SST At Least 10 M (33 FT) Away From Disc Wheel
        G03484066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Take care not to damage the SST wire harness.
    4. Activate the seat belt pretensioner.
      1. Connect the SST red clip to the battery positive (+) terminal and black clip to the battery negative (-) terminal.
      2. Check that no one is within 10 m (33 ft) area around the disc wheel. Press the SST activation switch and activate the seat belt pretensioner.

      HINT:

      The seat belt pretensioner operates simultaneously with the LED of the SST activation switch lighting up.

    5. Dispose of the front seat outer belt (with seat belt pretensioner).
      1. Remove the disc wheel and SST.
      2. Place the front seat outer belt in a vinyl bag, tie the end tightly and dispose of it in the same way as other general parts.

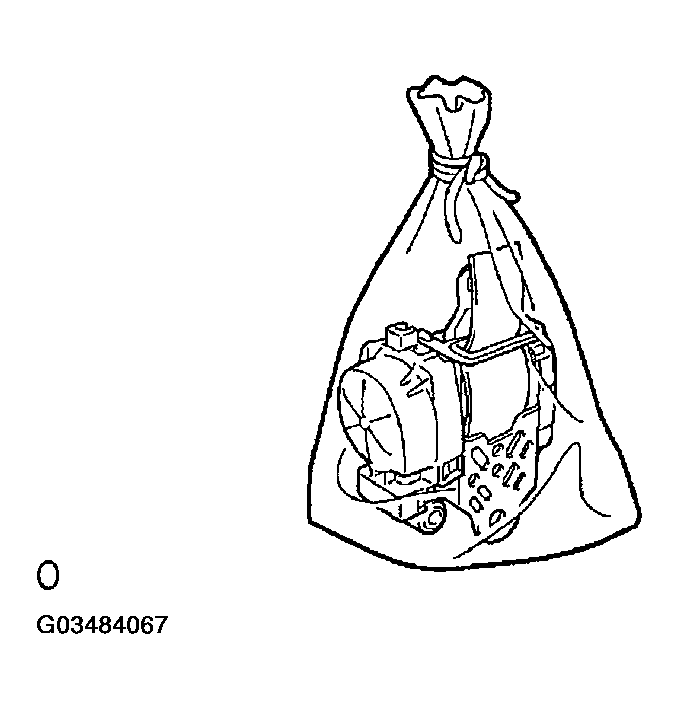

        Fig 13: Placing Front Seat Outer Belt In Vinyl Bag
        G03484067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
