Check Torque Converter Clutch Installation
Using Calipers And A Straight Edge, Measure From The Installed Surface Of The Torque Converter Clutch To The Front Surface Of The Transmission Housing.

Correct Distance: More Than 17.1 Mm (0.673 In.)

If The Distance Is Less Than The Standard, Check For An Improper Installation.

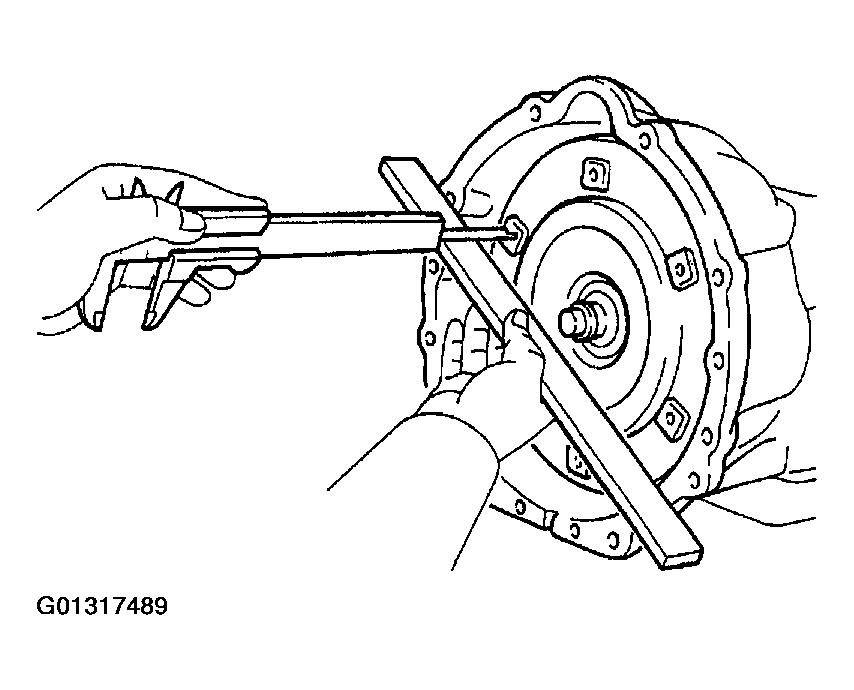

Fig 1: Measuring Torque Converter Clutch To Front Surface Of Transmission Housing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Install Transmission
Installation Is In The Reverse Order Of Removal (See removal ).

Hint:

After Installation, Check And Inspect Items As Follows.
- Adjust The Shift Lever Position (See Pre-Check ).
- Check Fluid Level (See Pre-Check ).
- Do The Road Test (See Pre-Check ).
