Automatic Transmission Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430 and 2002 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Level Gauge
  2. Raise Vehicle
    NOTE: Make Sure That The Vehicle Is Securely Supported.
  3. Remove Engine Under Cover
  4. Remove Front Suspension Protector
  5. Remove Exhaust Pipe
    1. Disconnect The 2 Heated Oxygen Sensors.

      Torque: 44 N.M (450 Kgf.Cm, 32 Ft.Lbf)

      Hint:

      At The Time Of Installation, Please Refer To The Following Items.

      • Before Installing The Heated Oxygen Sensor, Twist The Sensor Wire Counterclockwise 3 And 1/2 Turns.
      • After Installing The Heated Oxygen Sensor Wire Is Not Twisted. If It Is Twisted, Remove The Heated Oxygen Sensor And Reinstall It.
    2. Remove The 4 Bolts, Nuts And 2 Gaskets From The Lh And Rh Front Twc (Unleaded Gasoline) Or 2 Sub-Mufflers (Leaded Gasoline).

      Torque: 43 N.M (440 Kgf.Cm, 32 Ft.Lbf)

      Hint:

      At The Time Of Installation, Please Refer To The Following Item. Replace The Used Nuts And Gaskets With New Ones.

    3. Remove The 2 Bolts And Support Bracket.

      Torque: 43 N.M (440 Kgf.Cm, 32 Ft.Lbf)

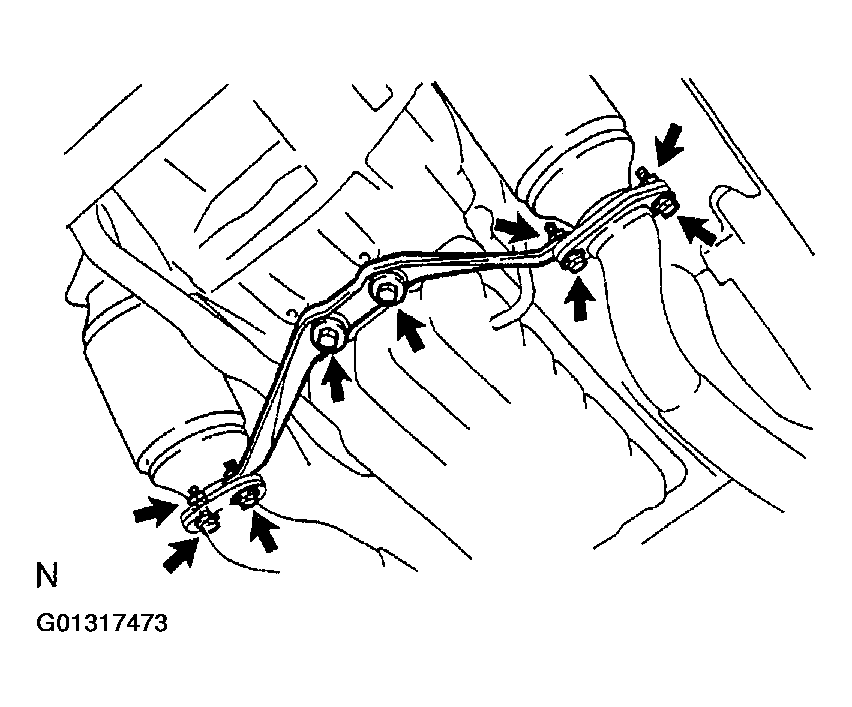

      Fig 1: Identifying Bolts
      G01317473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove The 4 Bolts And Center Floor Cross Member Brace.

      Torque: 13 N.M (130 Kgf.Cm, 9 Ft.Lbf)

    5. Remove The Exhaust Pipe.

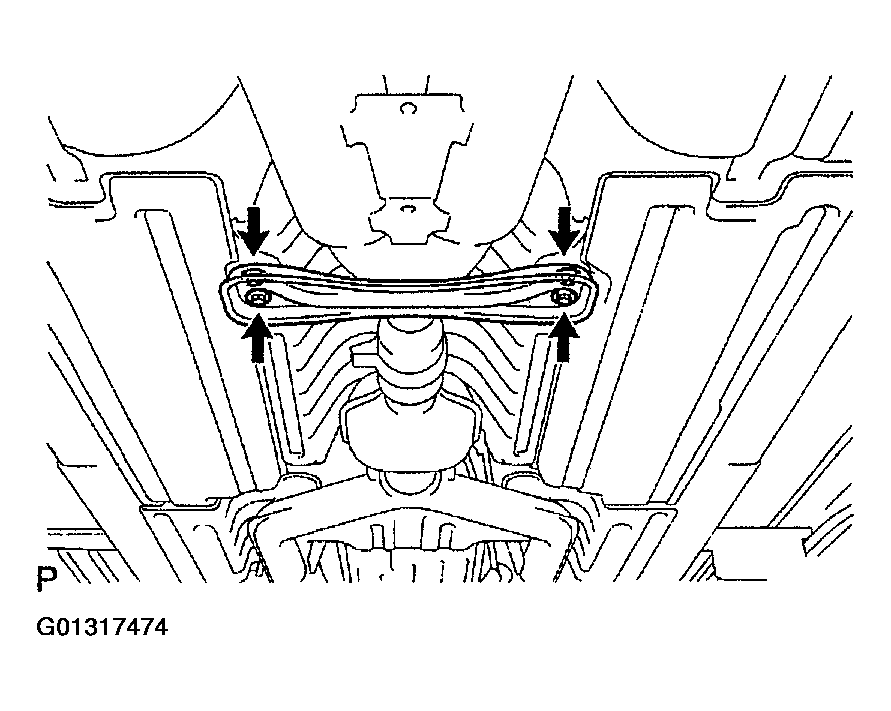

      Fig 2: Removing Bolts And Center Floor Cross Member Brace
      G01317474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. Remove Lh And Rh Front Twc

    Remove The 6 Nuts, 2 Gaskets, Lh And Rh Front Twc.

    Torque: 62 N.M (630 Kgf.Cm, 46 Ft.Lbf)

    Hint:

    At The Time Of Installation, Please Refer To The Following Item. Replace The Used Nuts And Gaskets With New Ones.

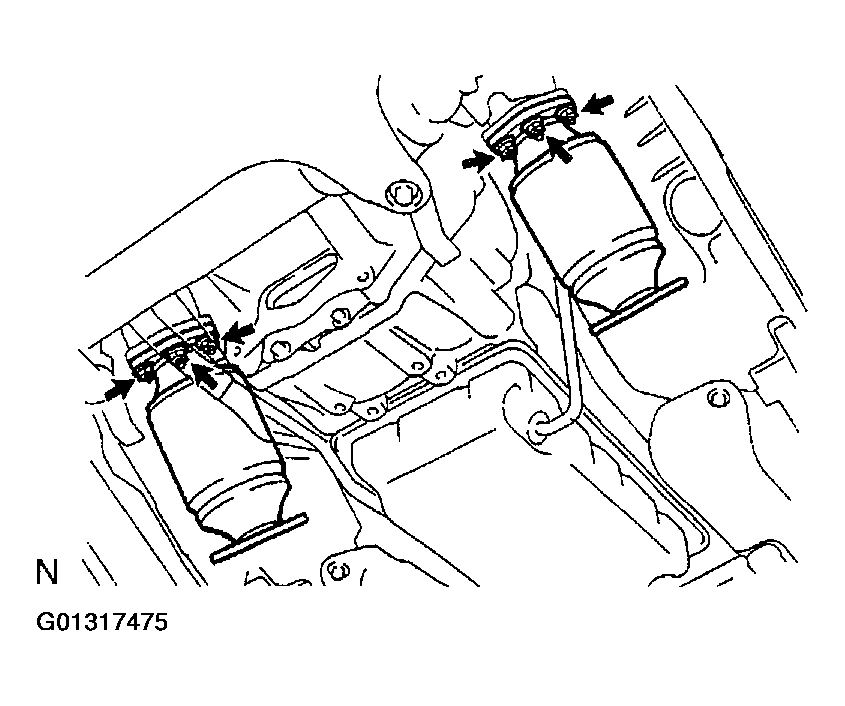

    Fig 3: Removing Lh & Rh Front Twc
    G01317475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. Remove Engine Rear Mounting Member Bracket Plate

    Remove The 3 Bolts And Bracket Plate.

    Torque: 5.4 N.M (55 Kgf.Cm, 48 In.Lbf)

  8. Remove 2 Bolts And Filler Pipe

    Hint:

    At The Time Of Installation, Please Refer To The Following Item. Replace The Used O-Ring With A New One.

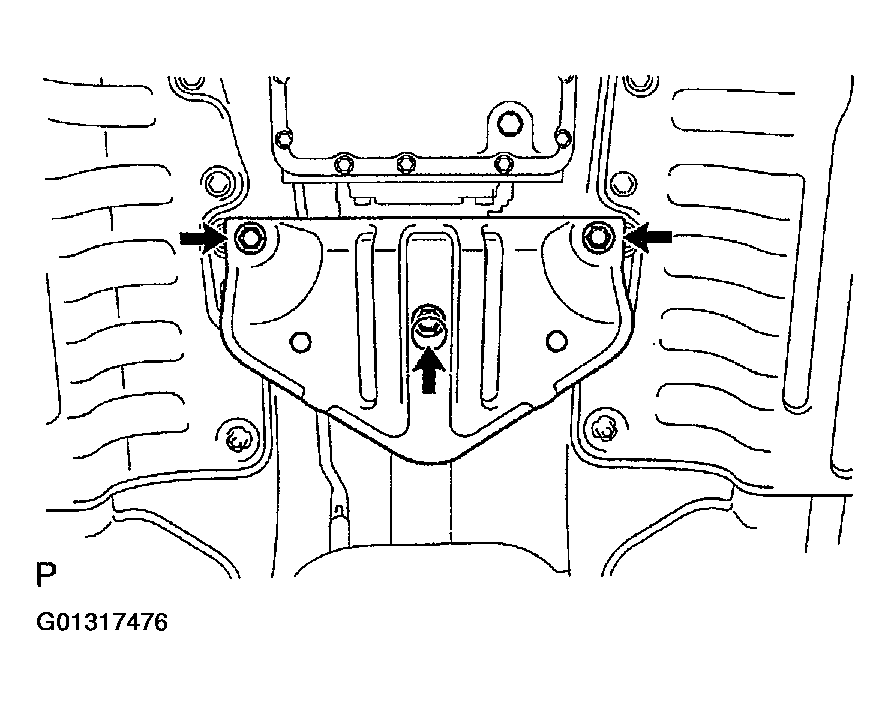

    Fig 4: Removing Bolts And Bracket Plate
    G01317476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Remove Heat Insulator

    Remove The 4 Bolts And Heat Insulator.

    Torque: 5.4 N.M (55 Kgf.Cm, 48 In.Lbf)

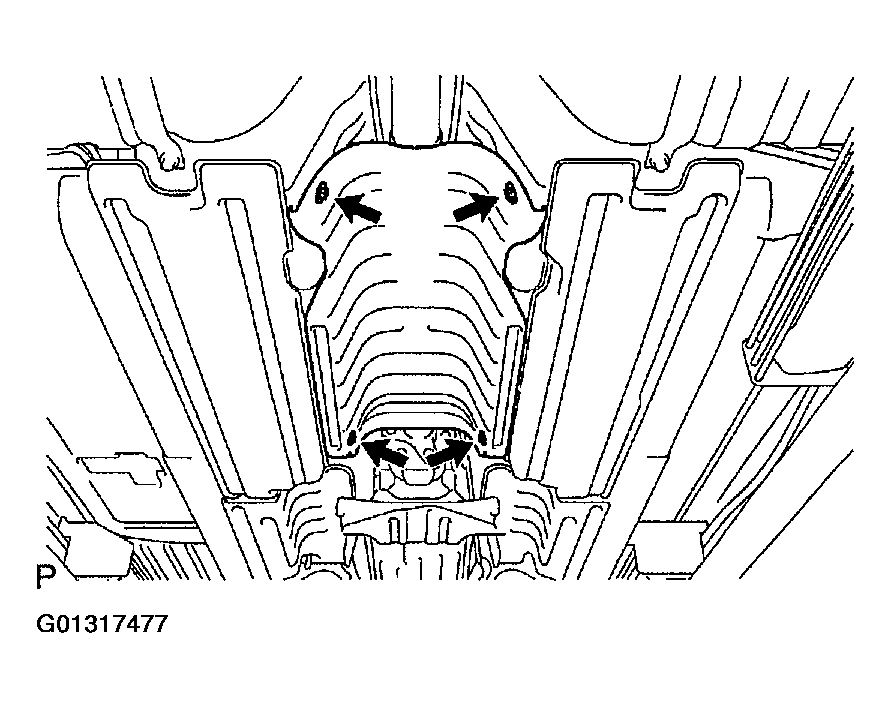

    Fig 5: Removing Bolts And Heat Insulator
    G01317477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. Remove Propeller Shaft Heat Insulator

    Remove The 2 Bolts And Propeller Shaft Heat Insulator.

    Torque: 5.4 N.M (55 Kgf.Cm, 48 In.Lbf)

  11. Remove Propeller Shaft

    (See  Removal  )

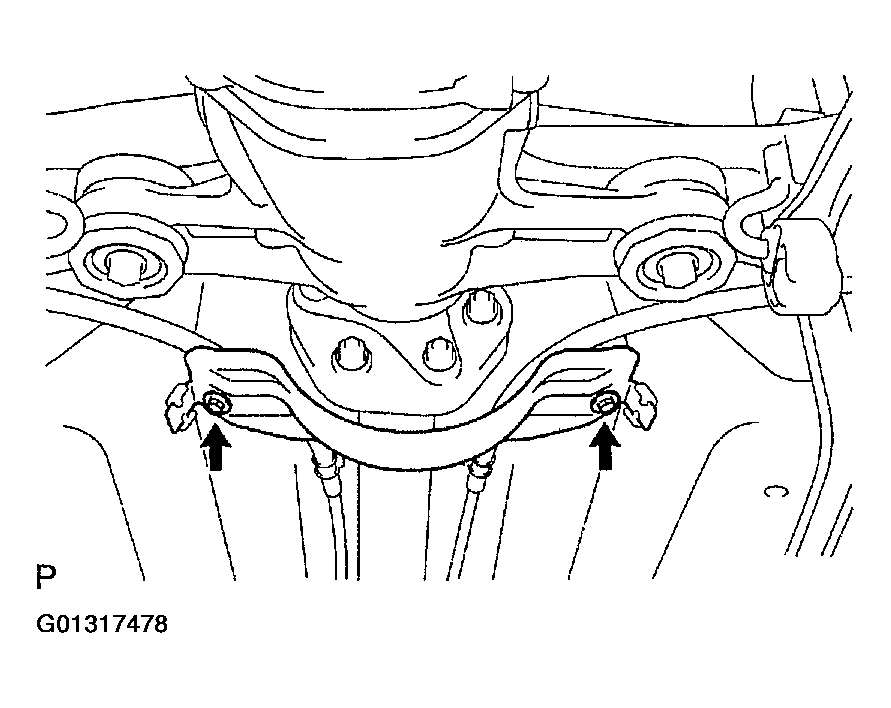

    Fig 6: Removing Bolts And Propeller Shaft Heat Insulator
    G01317478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. Remove Shift Control Rod

    Remove The Nut And Disconnect The Rod.

    Torque: 13 N.M (130 Kgf.Cm, 9 Ft.Lbf)

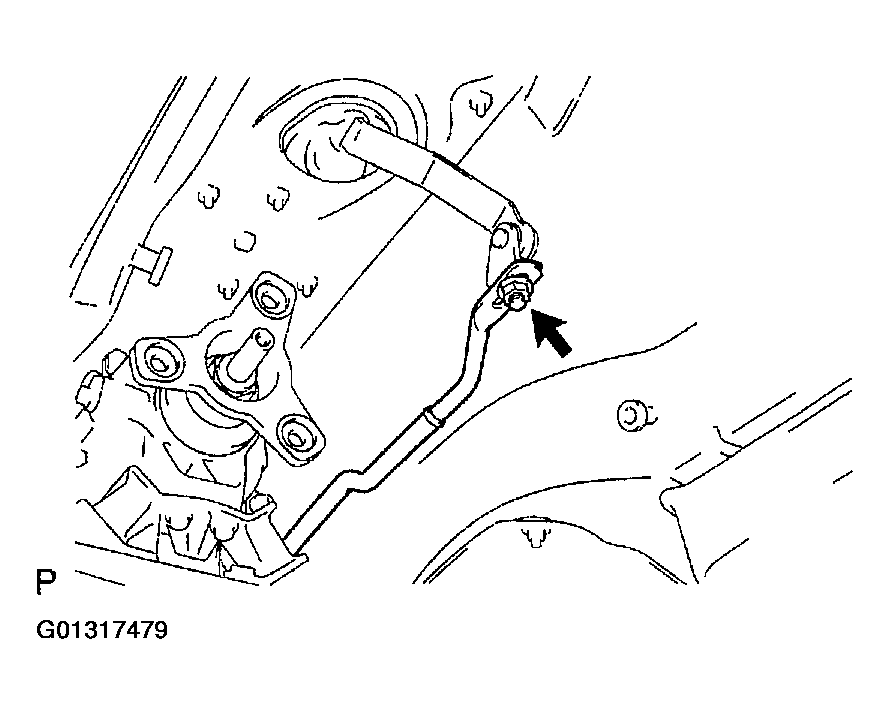

    Fig 7: Disconnecting Control Rod
    G01317479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. Disconnect Oil Cooler Pipe
    1. Loosen The 2 Union Nuts From The Transmission.

      Torque: 44 N.M (450 Kgf.Cm, 32 Ft.Lbf)

      NOTE: Be Careful No To Damage The Oil Cooler Pipe.

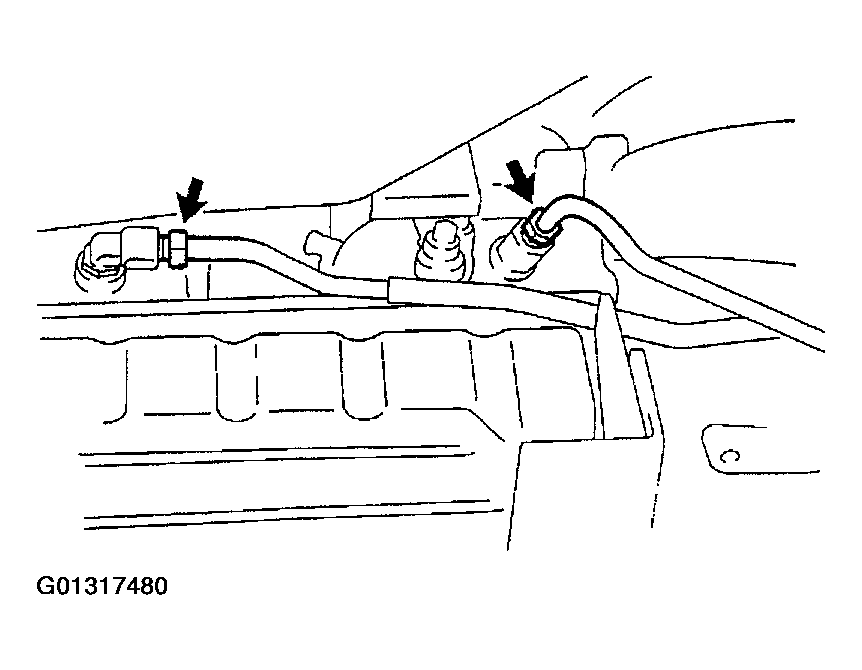

      Fig 8: Loosening Union Nuts
      G01317480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect The 3 Set Bolts Of The Clamp.

      Torque: 4.9 N.M (50 Kgf.Cm, 43 In.Lbf)

    3. Disconnect The 2 Oil Cooler Pipes From The Transmission.

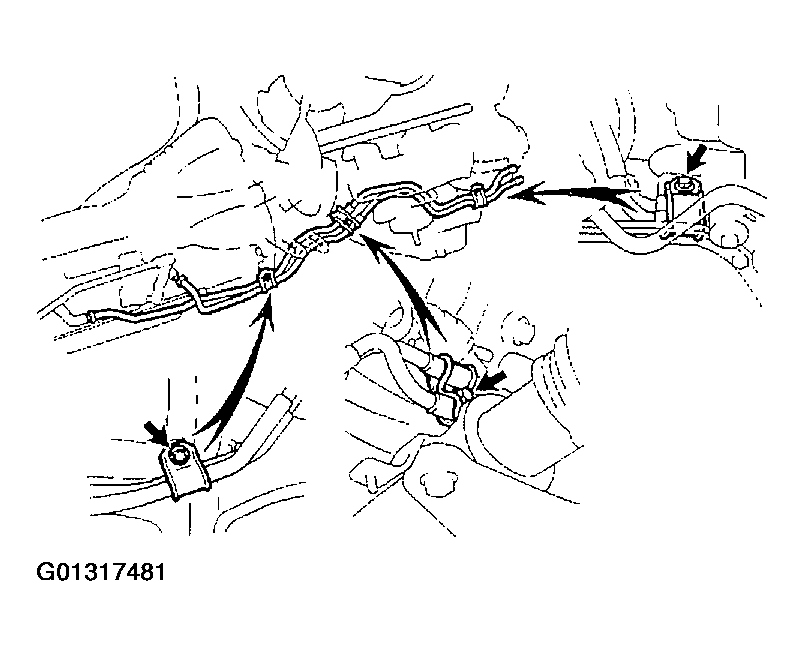

      Fig 9: Disconnecting Set Bolts Of Clamp
      G01317481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. Remove Torque Converter Clutch Mounting Bolt
    1. Remove The 2 Bolts And Flywheel Housing Under Cover.

      Torque: 18 N.M (185 Kgf.Cm, 13 Ft.Lbf)

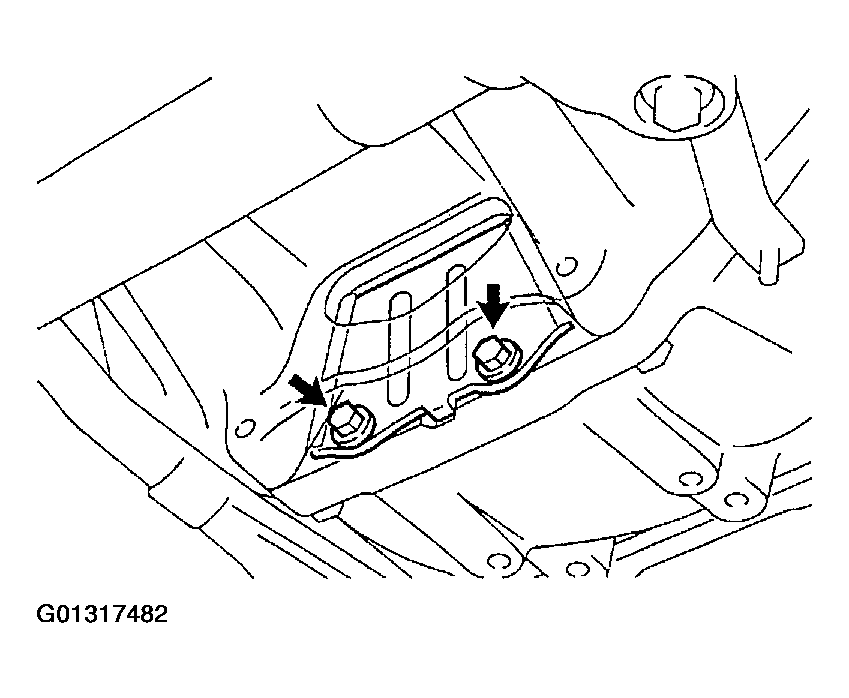

      Fig 10: Removing Bolts And Flywheel Housing Under Cover
      G01317482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn The Crankshaft To Gain Access To Each Bolt.
    3. Hold The Crankshaft Pulley Nut With A Wrench And Remove The 6 Bolts.

      Torque: 48 N.M (490 Kgf.Cm, 35 Ft.Lbf)

      Hint:

      At The Time Of Installation, Please Refer To The Following Item. First Install Black Colored Bolt And Then The 5 Other Bolts.

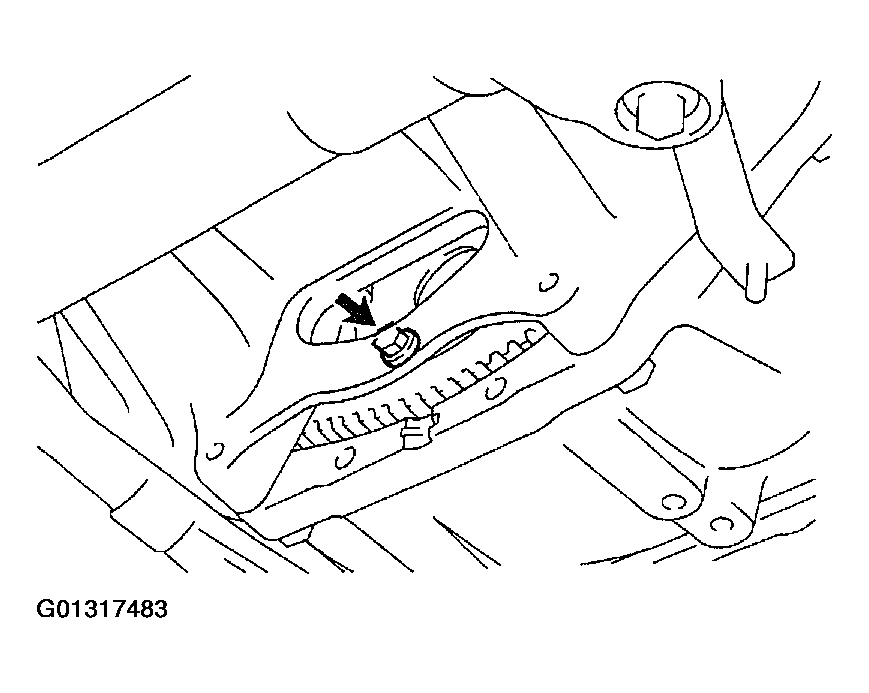

      Fig 11: Turning Crankshaft To Gain Access To Each Bolt
      G01317483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. Support Transmission With Jack

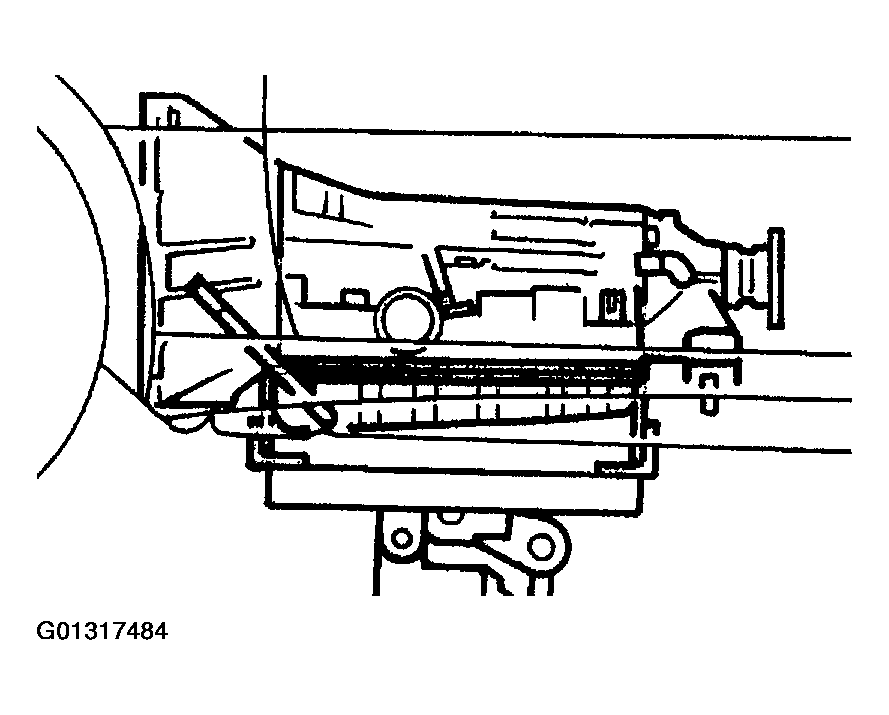

    Fig 12: Supporting Transmission With Jack
    G01317484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. Remove Engine Rear Mounting 4 Set Bolts

    Torque: 26 N.M (270 Kgf.Cm, 20 Ft.Lbf)

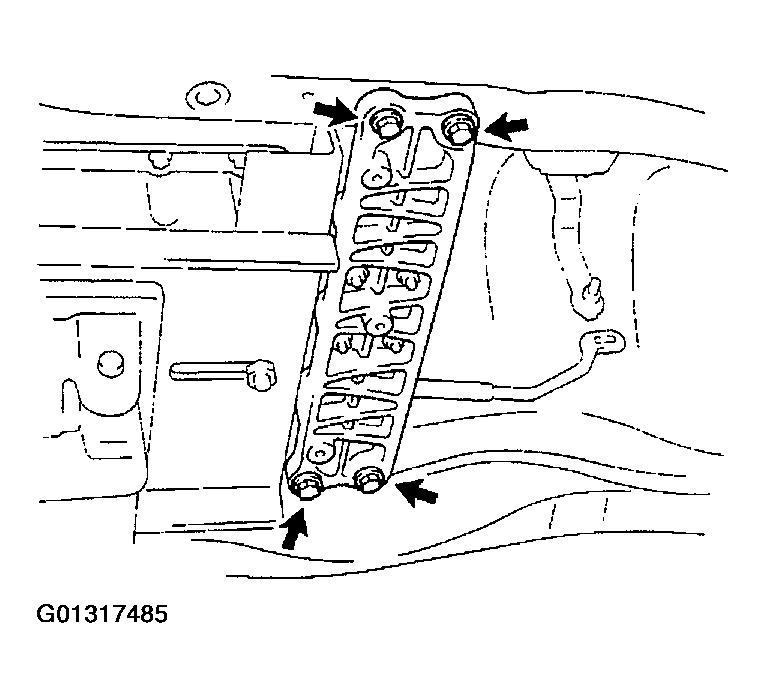

    Fig 13: Removing Engine Rear Mounting Set Bolts
    G01317485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. Disconnect Connectors And Wire Harness
    1. Tilt Down The Transmission.
      NOTE: Take Care So That The Cooling Fan Does Not Come In Contact With The Fan Shroud.
    2. Disconnect The Following Connectors:
      1. O/D Direct Clutch Speed Sensor Connector
      2. Vehicle Speed Sensor Connector
      3. Park/Neutral Position Switch Connector
      4. Solenoid Connector
    3. Disconnect The Wire Harness From The Clamp On Transmission.

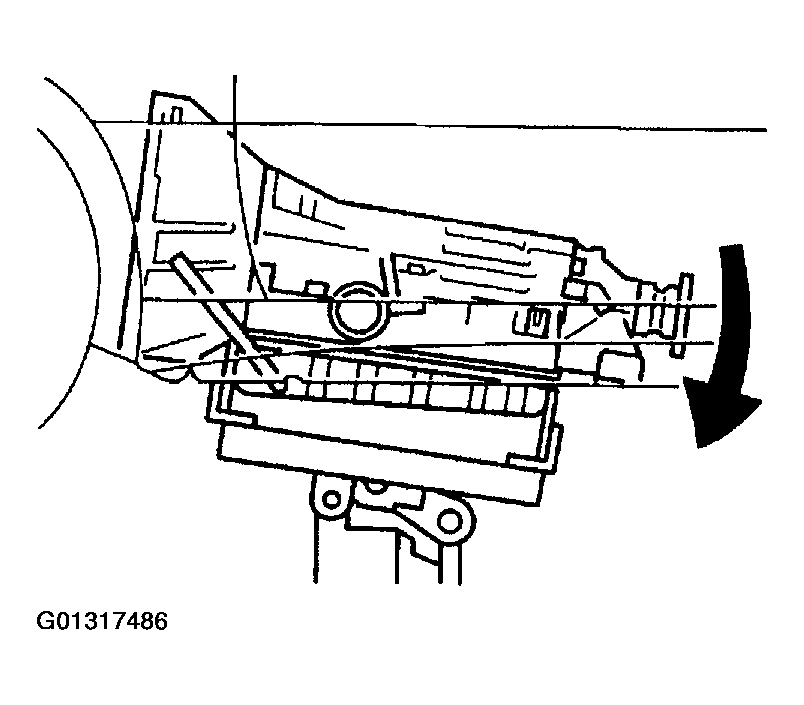

      Fig 14: Disconnecting Wire Harness From Clamp On Transmission
      G01317486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. Remove Transmission

    Remove The 10 Bolts And Transmission.

    Torque:

    14 Mm Head Bolt: 37 N.M (380 Kgf.Cm, 27 Ft.Lbf)

    17 Mm Head Bolt: 72 N.M (730 Kgf.Cm, 53 Ft.Lbf)

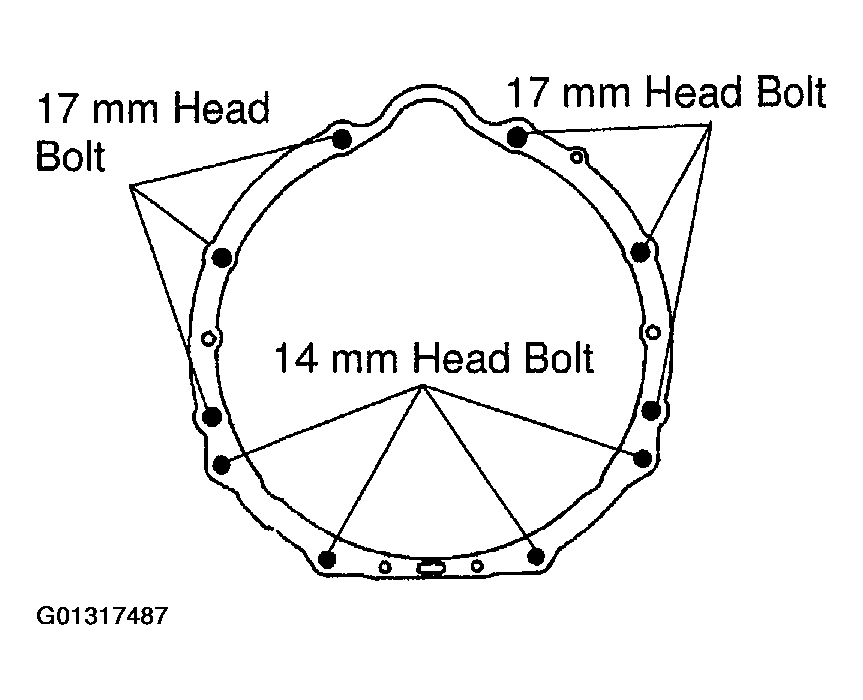

    Fig 15: Removing Bolts
    G01317487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Hint:

    At The Time Of Installation, Please Refer To The Following Item.

    Lift The Engine Front Side.

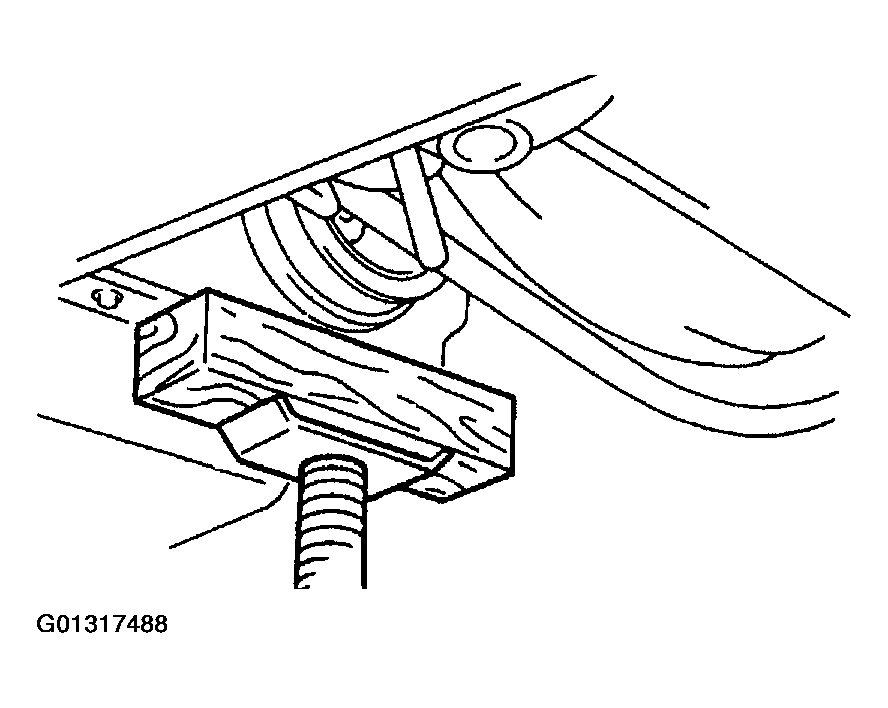

    Fig 16: Lifting Engine Front Side
    G01317488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
