Rear Speaker ASSY No.2: Replacement

HINT:

COMPONENTS: See COMPONENTS

1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
2. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
3. REMOVE ROOF SIDE GARNISH INNER RH (See )
4. REMOVE ROOF SIDE GARNISH INNER LH
5. REMOVE REAR SEAT SHOULDER BELT COVER (See  REPLACEMENT  )
6. REMOVE PACKAGE TRAY TRIM PANEL ASSY
   1. Remove the 3 bolts and floor anchor of the seat belt.
   2. Pull the package tray trim panel assy upward to disengage 2 clips.
   3. Put the anchor part of the seat belt through the slit part.
   4. Disconnect the connector.
   5. w/o RR window shade assy:

      Pull it as shown in the illustration to disengage 6 claws, and remove the package tray trim panel assy.

   6. w/ RR window shade assy:

      Pull it as shown in the illustration and remove the package tray trim panel assy.

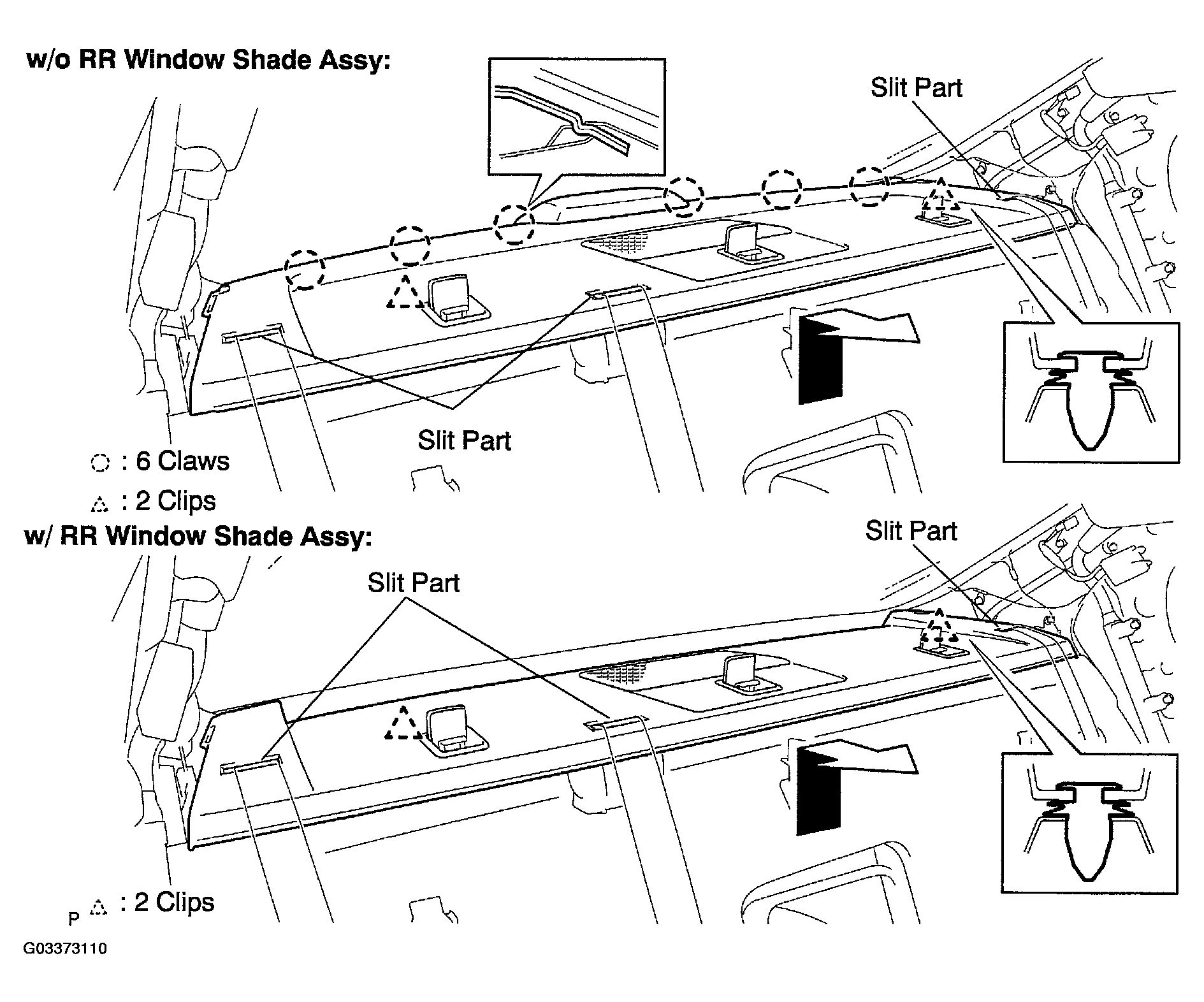

      Fig 1: Removing Package Tray Trim Panel Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER (See  REPLACEMENT  )
8. REMOVE REAR SEAT INNER W/CENTER BELT ASSY RH (See  REPLACEMENT  )
9. REMOVE REAR SEAT INNER W/CENTER BELT ASSY LH (See  REPLACEMENT  )
10. REMOVE ROOM PARTITION PANEL INSULATOR
11. REMOVE REAR SPEAKER ASSY NO.2
    1. Disconnect the connector.
    2. Remove the 4 screws and rear speaker assy No.2.

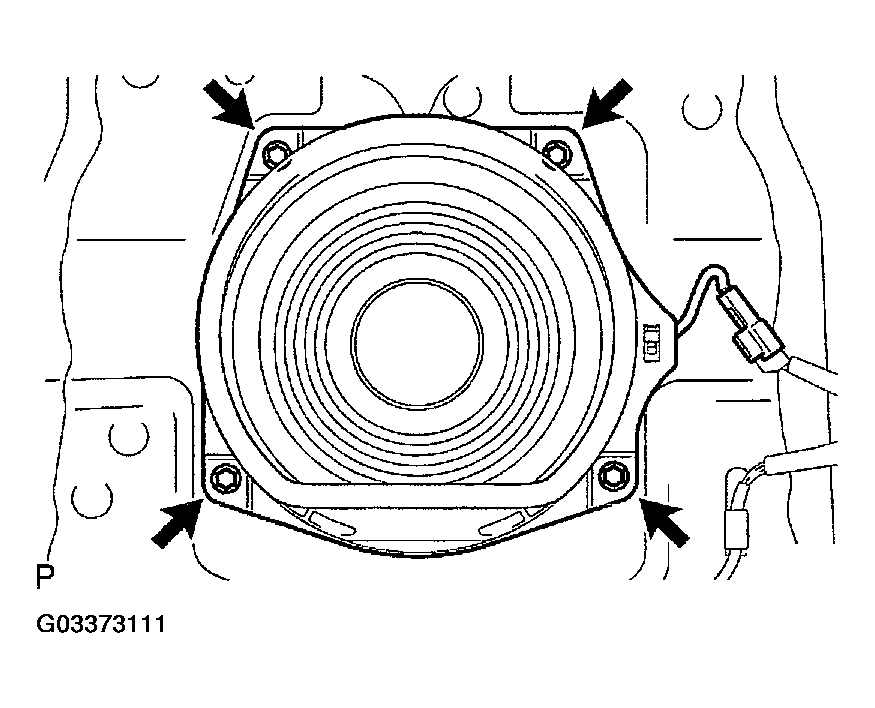

       Fig 2: Removing 4 Screws And Rear Speaker Assy No.2

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. INSTALL REAR SEAT INNER W/CENTER BELT ASSY RH (See  REPLACEMENT  )
13. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER (See  REPLACEMENT  )
14. INSTALL REAR SEAT INNER W/CENTER BELT ASSY LH (See )
15. INSTALL ROOF SIDE GARNISH INNER RH (See )
16. INSTALL ROOF SIDE GARNISH INNER LH
17. INSTALL REAR SEAT BACK ASSY (See  OVERHAUL  )
18. INSTALL REAR SEAT CUSHION ASSY (See  OVERHAUL  )
