Section 445 (Rear Seat): Overhaul

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR SEAT CUSHION ASSY
    1. Holding up the front end of the cushion assembly, disengage the clips and pull out the cushion assembly forward to remove it.

      A: 100 mm (3.94 in.) or less

      NOTE: The cushion frame will be deformed unless holding the clips around the roots.

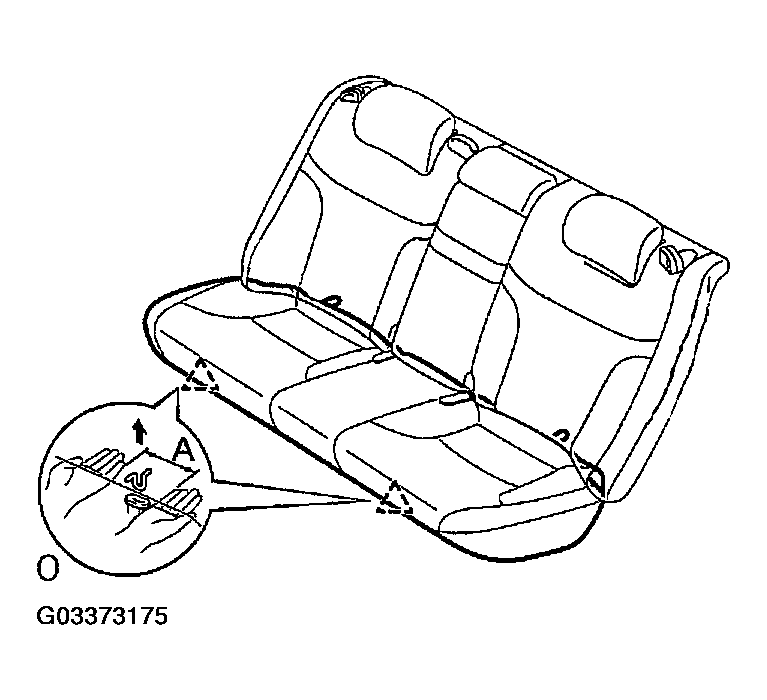

      Fig 1: Removing Clips And Pulling Out Cushion Assembly
      G03373175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR SEAT BACK ASSY
    1. Using a screwdriver to disengage the clips, pull out the belt from the rear shoulder belt guide RH.
    2. Using a screwdriver to disengage the clips, pull out the belt from the rear shoulder belt guide LH.

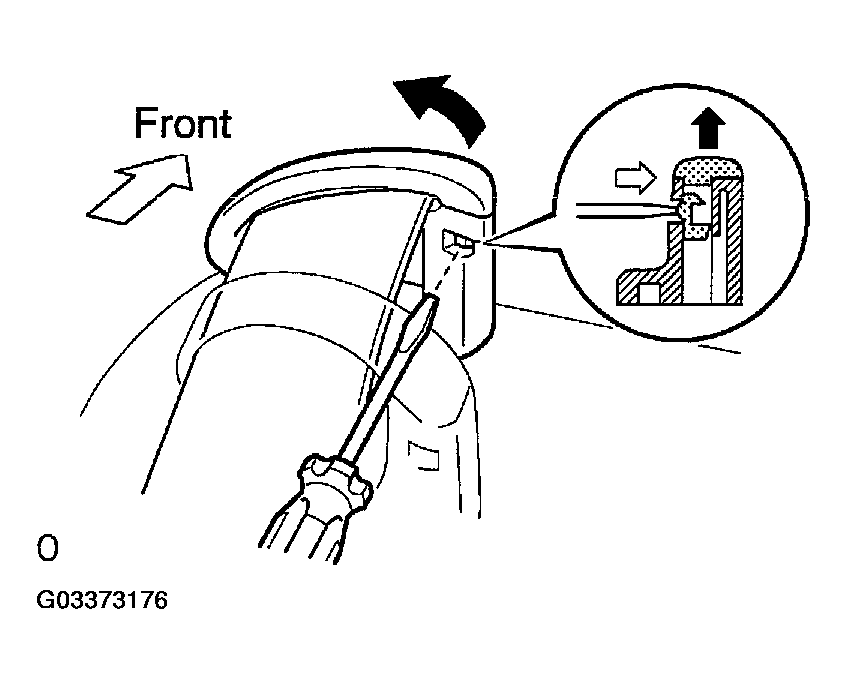

      Fig 2: Removing Clips
      G03373176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver to disengage the clips, pull out the belt from the rear shoulder belt guide center.

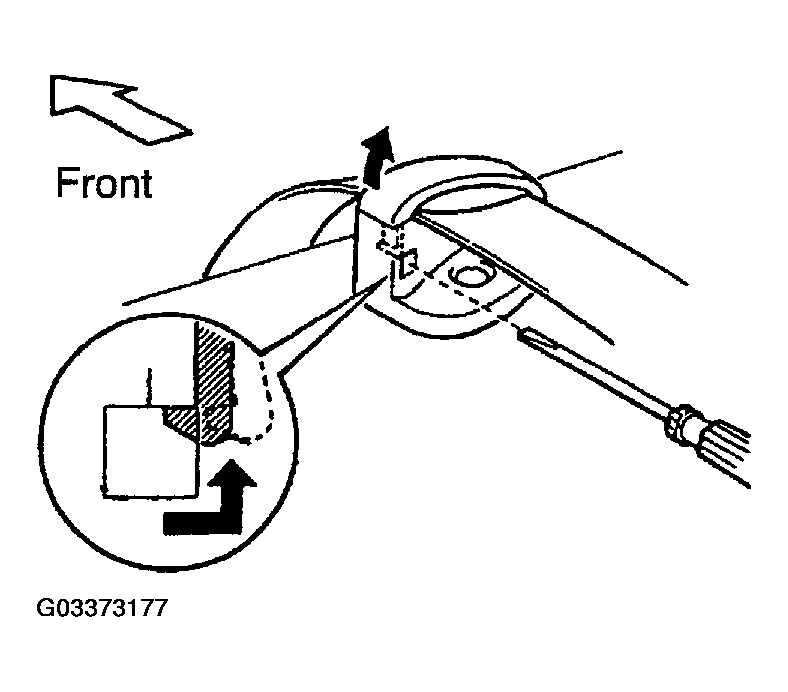

      Fig 3: Removing Clips And Pulling Out Belt From Rear Shoulder Belt Guide Center
      G03373177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 4 bolts.
    5. Holding up the rear seat back assembly to disengage the hooks, remove the rear seat back assembly.

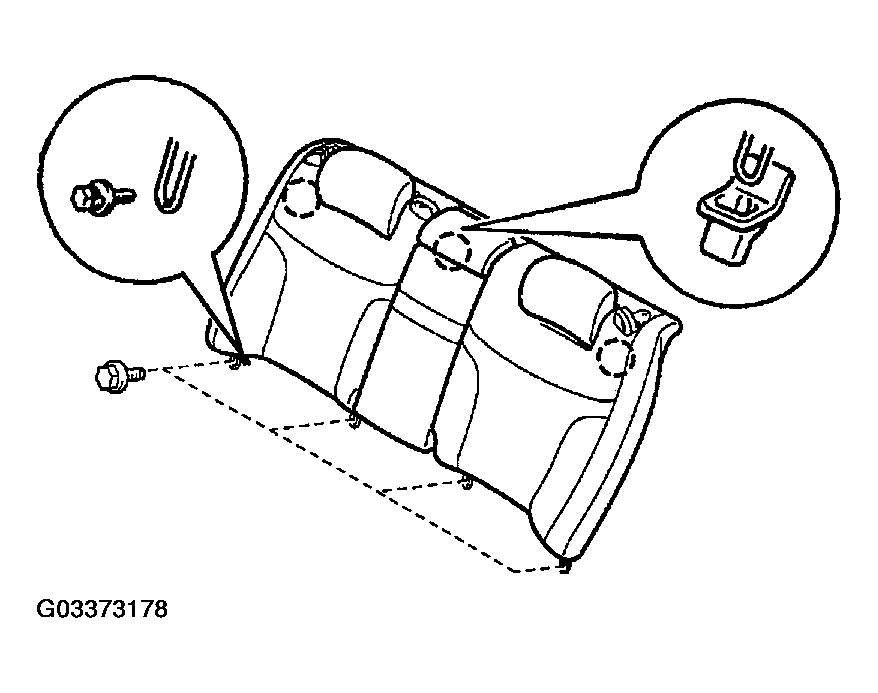

      Fig 4: Removing Bolts
      G03373178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR SEAT SHOULDER BELT GUIDE RH
    1. Remove the 2 screws and the rear seat shoulder belt guide RH.
  4. REMOVE REAR SEAT SHOULDER BELT GUIDE CENTER
    1. Remove the 2 screws and rear seat shoulder belt guide center.
  5. REMOVE REAR SEAT SHOULDER BELT GUIDE LH
    1. Remove the 2 screws and rear seat shoulder belt guide LH.
  6. REMOVE REAR SEAT HEADREST ASSY
  7. REMOVE REAR SEAT HEADREST ASSY CENTER
  8. REMOVE REAR SEAT HEADREST SUPPORT
  9. REMOVE REAR SEAT ARMREST ASSY CENTER
    1. Remove the 2 nuts and the center armrest assembly.
    2. Remove the 2 bolts and the rear seat armrest assembly center.
  10. REMOVE BENCH TYPE REAR SEAT BACK COVER
    1. Remove the hog rings and the rear seat back cover.
  11. REMOVE BENCH TYPE REAR SEAT CUSHION COVER
    1. Remove the hog rings and the rear seat cushion cover.
  12. INSTALL BENCH TYPE REAR SEAT CUSHION COVER
    1. Using hog ring pliers, install new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing hog rings, take care to prevent wrinkles as little as possible.

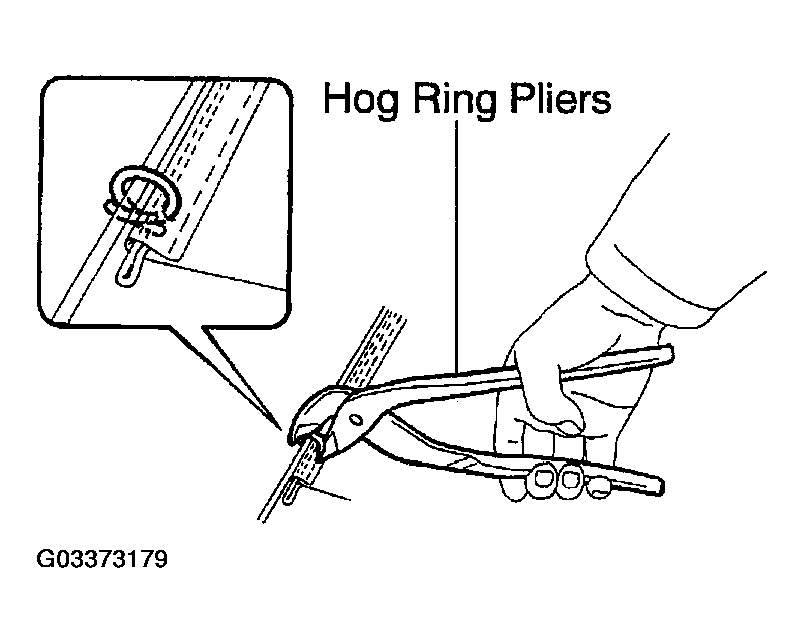

        Fig 5: Installing Hog Rings
        G03373179Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL BENCH TYPE REAR SEAT BACK COVER
    1. Using hog ring pliers, install new hog rings.
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, take care to prevent wrinkles as little as possible.
        Fig 6: Installing Hog Rings
        G03373180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL REAR SEAT BACK ASSY
    1. Install the bench type rear seat back assembly with the 4 bolts.

      Torque: 18.1 N.m (185 kgf.cm, 13 ft.lbf)

  15. INSTALL REAR SEAT CUSHION ASSY
    NOTE: Securely engage the rear seat cushion wire to the pipe child restraint seat anchor bracket sub-assembly.

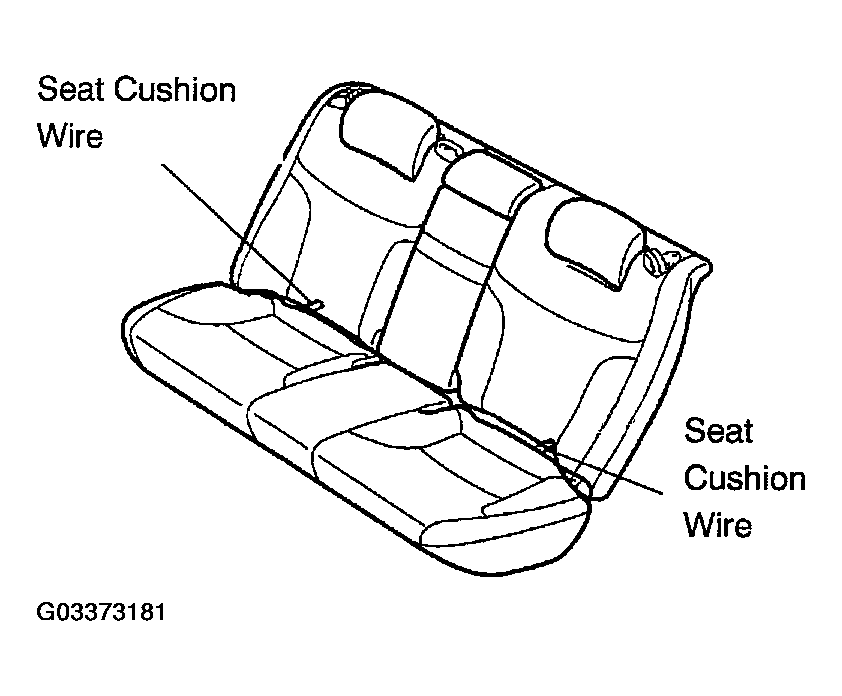

    Fig 7: Identifying Rear Seat Cushion Wire
    G03373181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
