Navigation Antenna ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

  1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  2. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
  3. REMOVE ROOF SIDE GARNISH INNER RH (See )
  4. REMOVE ROOF SIDE GARNISH INNER LH
  5. REMOVE REAR SEAT SHOULDER BELT COVER (See  REPLACEMENT  )
  6. REMOVE PACKAGE TRAY TRIM PANEL ASSY (See  REPLACEMENT   )
  7. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER (See  REPLACEMENT  )
  8. REMOVE REAR SEAT INNER W/CENTER BELT ASSY RH (See  REPLACEMENT  )
  9. REMOVE REAR SEAT INNER W/CENTER BELT ASSY LH (See  REPLACEMENT  )
  10. REMOVE ROOM PARTITION PANEL INSULATOR
  11. REMOVE NAVIGATION ANTENNA ASSY
    1. Disconnect the connector.
    2. Remove the screw and 6 clamps, then remove the navigation antenna assy.

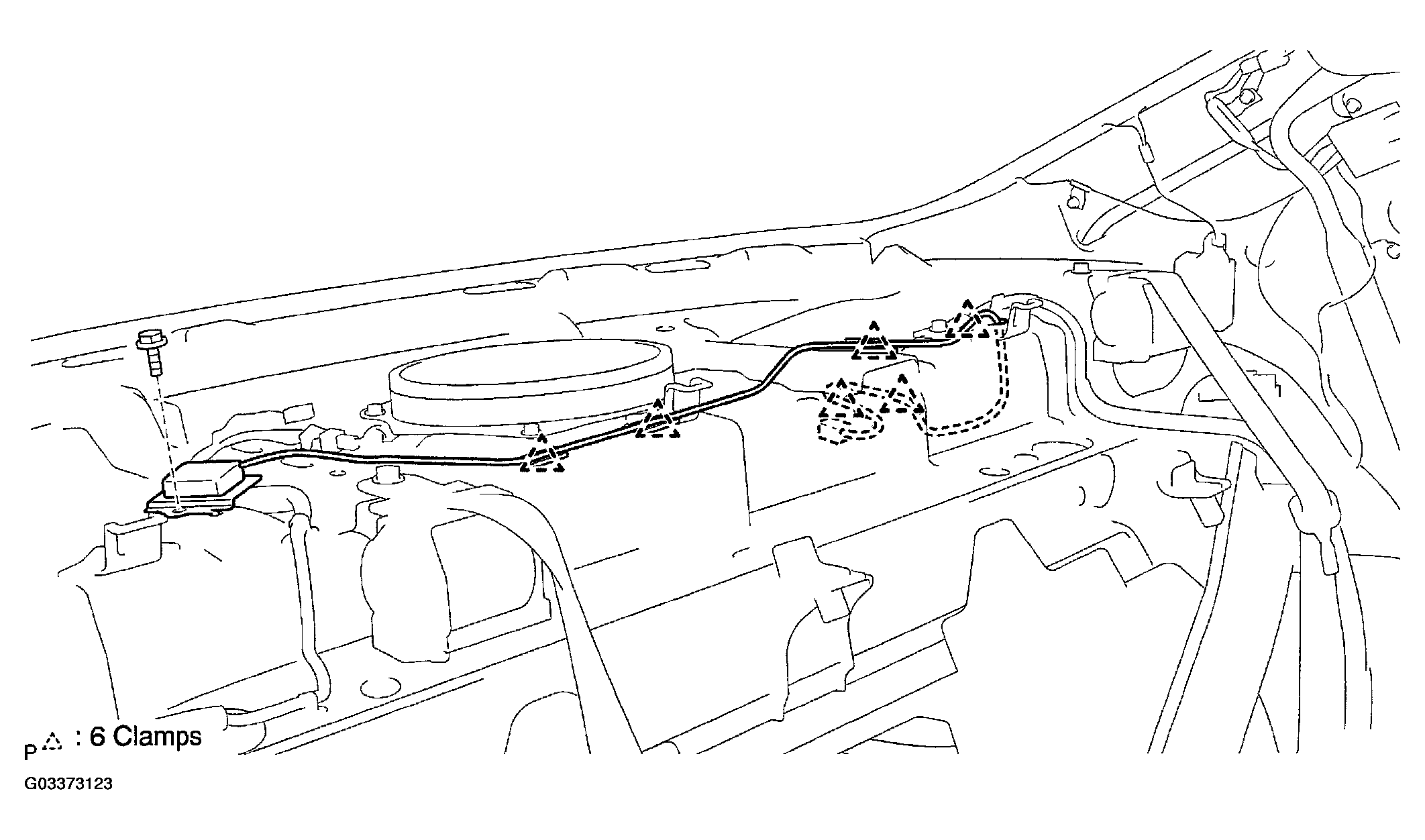

      Fig 1: Removing Screw, Clamps And Navigation Antenna Assy
      G03373123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL REAR SEAT INNER W/CENTER BELT ASSY RH (See  REPLACEMENT  )
  13. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER (See )
  14. INSTALL REAR SEAT INNER W/CENTER BELT ASSY LH (See )
  15. INSTALL ROOF SIDE GARNISH INNER RH (See )
  16. INSTALL ROOF SIDE GARNISH INNER LH
  17. INSTALL REAR SEAT BACK ASSY (See  OVERHAUL  )
  18. INSTALL REAR SEAT CUSHION ASSY (See  OVERHAUL  )
