Blower ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Lexus ES 330, 2003 Lexus ES 300, and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See REPLACEMENT , REPLACEMENT )
REMOVE HEATER TO FOOT DUCT NO.1 (See OVERHAUL )
REMOVE BLOWER ASSY (See OVERHAUL )
REMOVE AIR REFINER ELEMENT
REMOVE COWL WIRE NO.2
1. Remove the clamp and cowl wire No. 2.

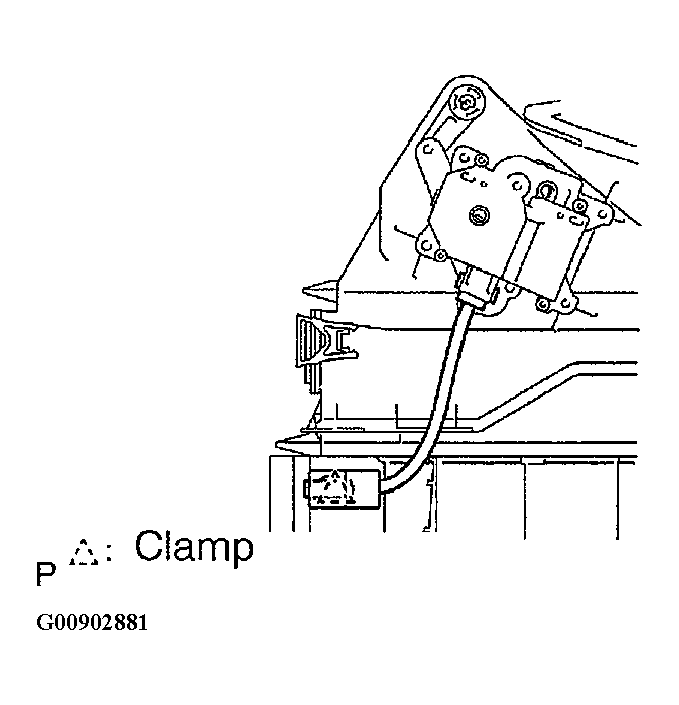

  Fig 1: Removing Cowl Wire No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RECIRCULATION DAMPER SERVO SUB-ASSY
1. Remove the 3 screws and recirculation damper servo sub-assy.

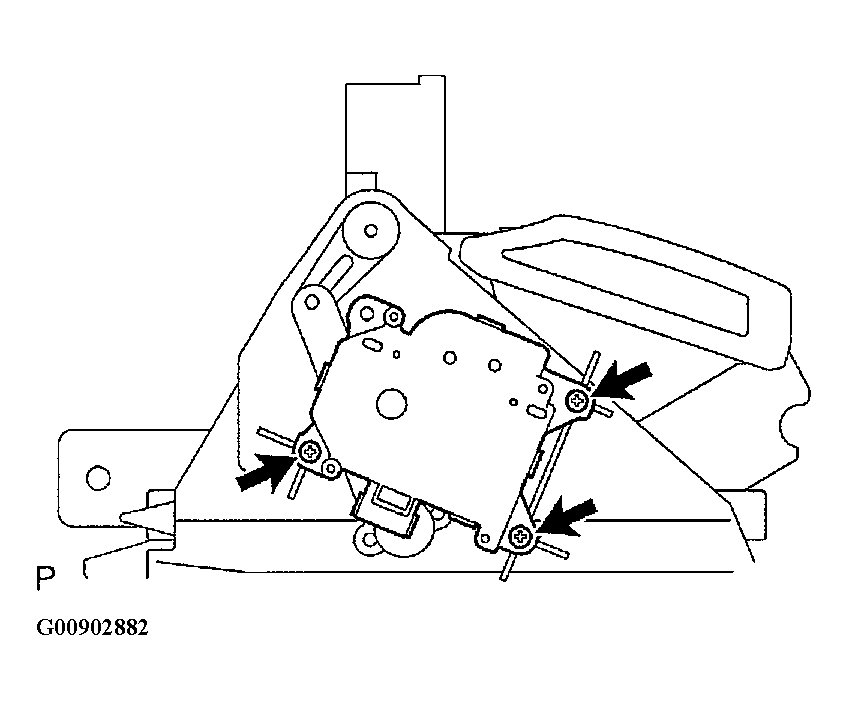

  Fig 2: Removing Recirculation Damper Servo Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE INSTRUMENT PANEL NO.3 WIRE
1. Disconnect the connectors, remove the 2 clamps and instrument panel No. 3 wire.

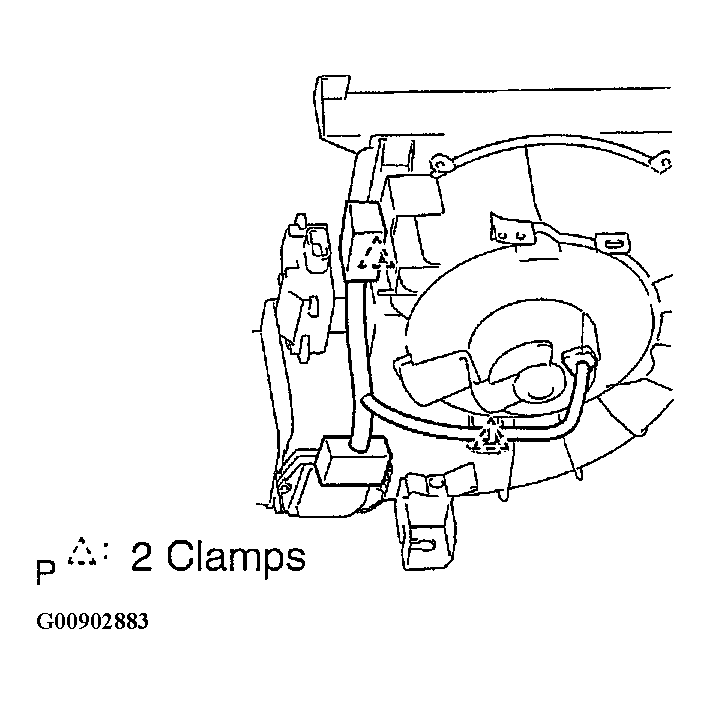

  Fig 3: Removing Instrument Panel No.3 Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER MOTOR CONTROL
1. Remove the 2 screws and blower motor control.

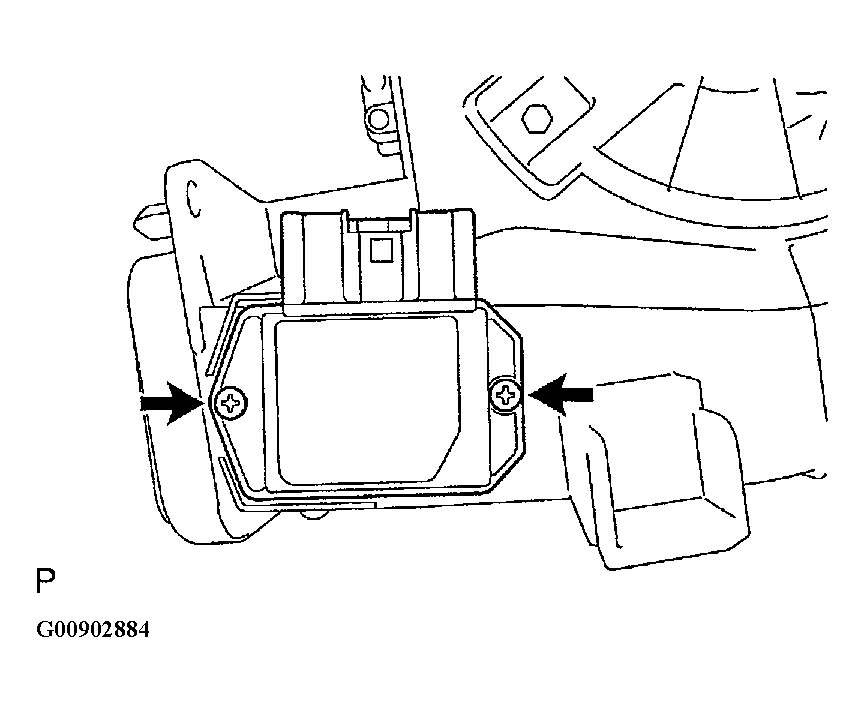

  Fig 4: Removing Blower Motor Control
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER W/FAN MOTOR SUB-ASSY
1. Remove the 3 screws and blower w/fan motor sub-assy.

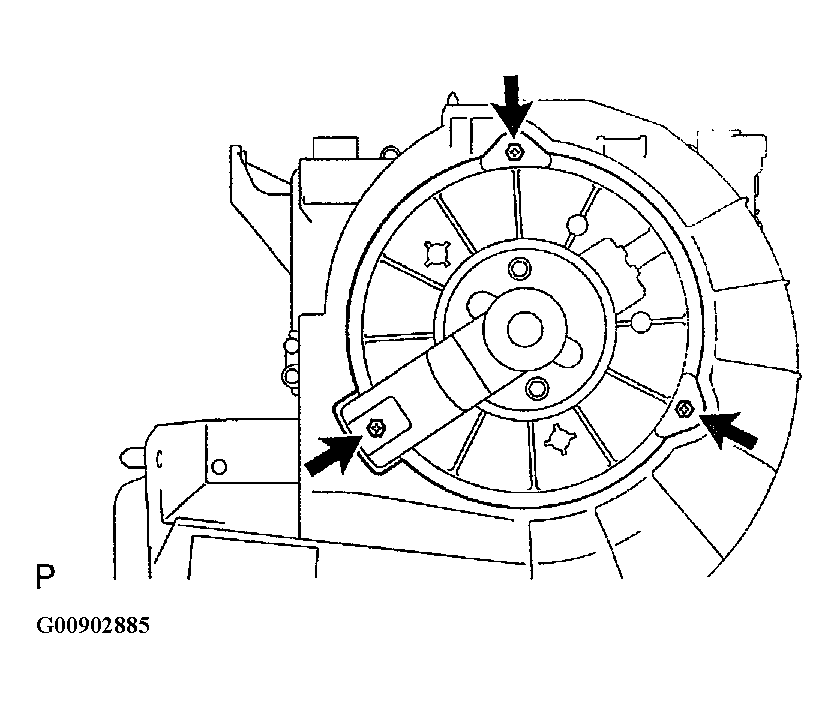

  Fig 5: Removing Blower W/Fan Motor Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BLOWER ASSY (See OVERHAUL )
INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY (See REPLACEMENT , REPLACEMENT )
