Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK HEATER CONTROL HOUSING SUB-ASSY (SECURITY INDICATOR LIGHT)
    1. Apply about 5 V positive voltage between positive (+) lead to terminal LP (A14-10) and negative (-) lead to terminal GND (A15-21) of the heater control housing sub-assy.

      Standard: Security indicator light comes on

      NOTE:
      • If the positive (+) lead and the negative (-) lead are incorrectly connoted, the indicator light does not light up.
      • Voltage of 5 V or more will damage the indicator light.
      • If the voltage is too low, the light does not light up.

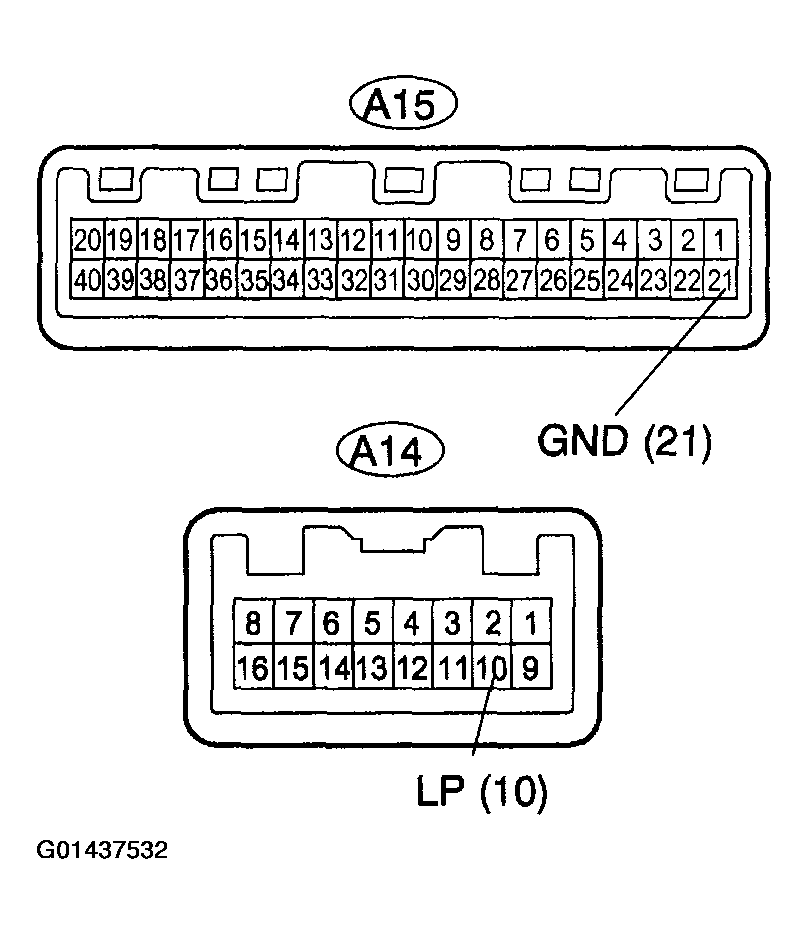

      Fig 1: Identifying Heater Control Housing Connector Terminals
      G01437532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPLACE HEATER CONTROL HOUSING SUB-ASSY (See  OVERHAUL  )

      OK: Go to next step.

  2. CHECK WIRE HARNESS (THEFT WARNING ECU ASSY - HEATER CONTROL HOUSING SUB-ASSY)
    1. Disconnect the theft warning ECU assy and A14 heater control housing sub-assy connectors.
    2. Check the continuity between the theft warning ECU assy connector and heater control housing sub-assy connector, as shown in Fig 2 and Fig 3.

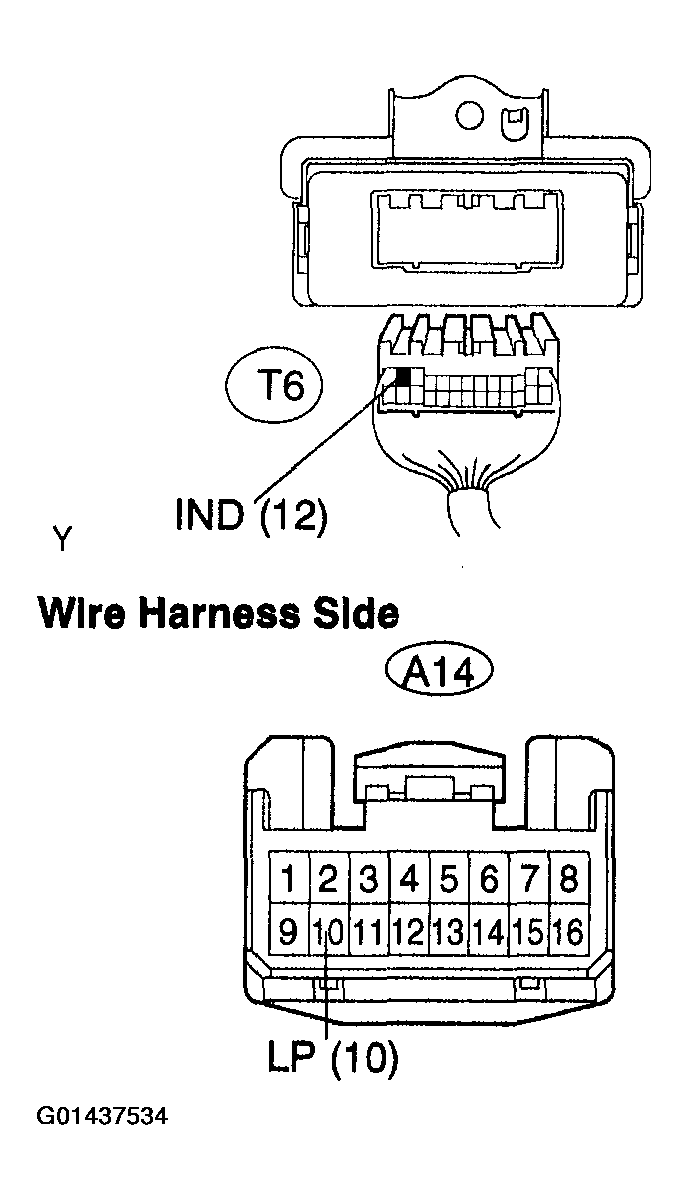

      Fig 2: Identifying Theft Warning ECU Assy And Heater Control Housing Sub-Assy Connector
      G01437534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

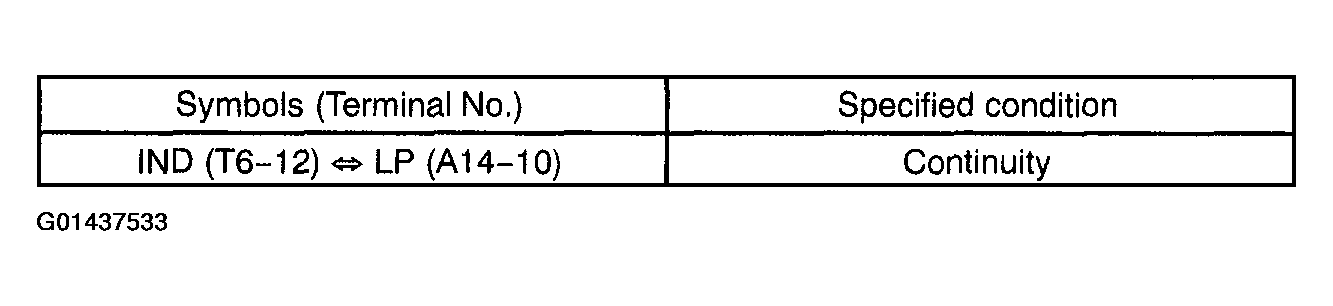

      Fig 3: Theft Warning ECU Assy And Heater Control Housing Sub-Assy Connector Continuity Specification Chart
      G01437533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

      OK: Go to next step.

  3. CHECK WIRE HARNESS (HEATER CONTROL HOUSING SUB-ASSY - BODY GROUND)
    1. Disconnect the A15 heater control housing sub-assy connector.
    2. Check the continuity between the A15 heater control housing sub-assy connector and the body ground, as shown in Fig 4 and Fig 5.

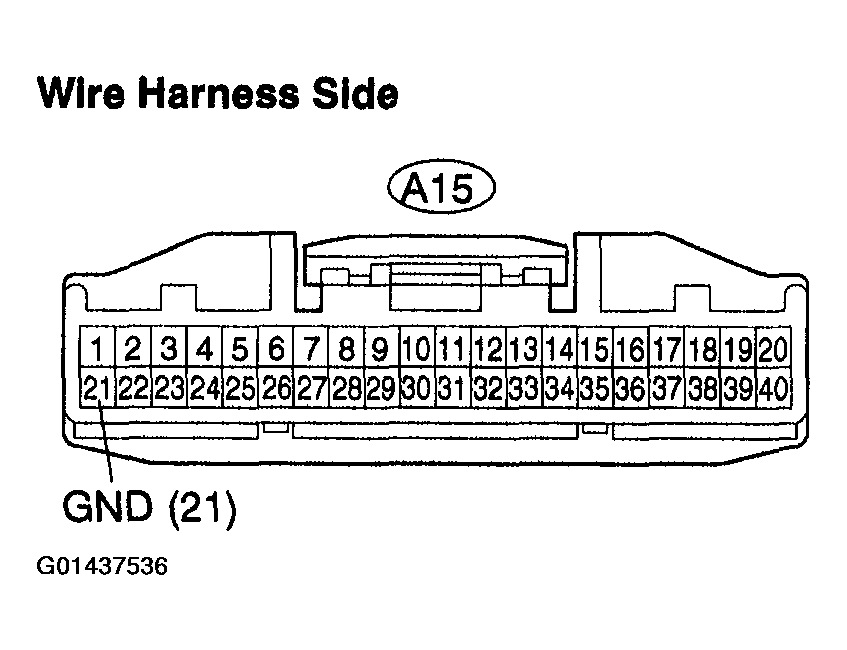

      Fig 4: Identifying A15 Heater Control Housing Sub-Assy Connectors
      G01437536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

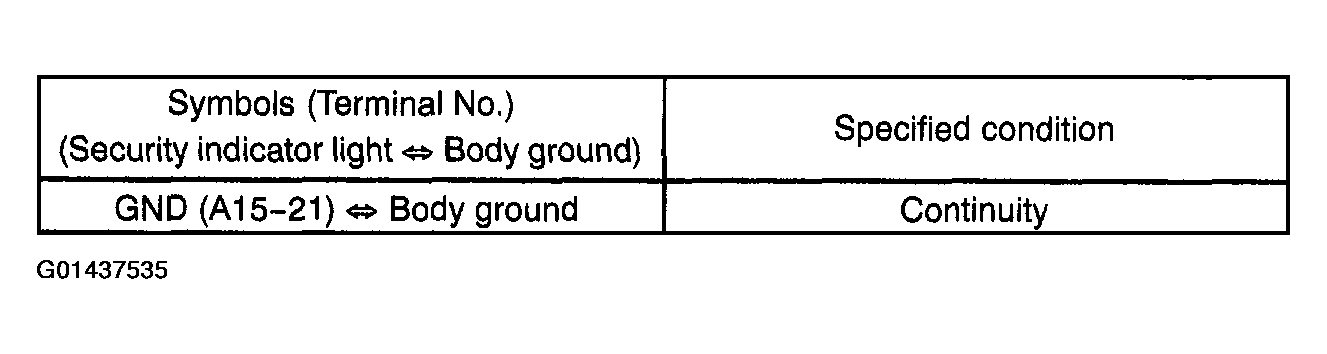

      Fig 5: A15 Heater Control Housing Sub-Assy Connector And Body Ground Continuity Specification Chart
      G01437535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE WIRE HARNESS AND CONNECTOR

      OK: CHECK AND REPLACE THEFT WARNING ECU ASSY (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
