Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Read freeze frame data using hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When trouble shooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

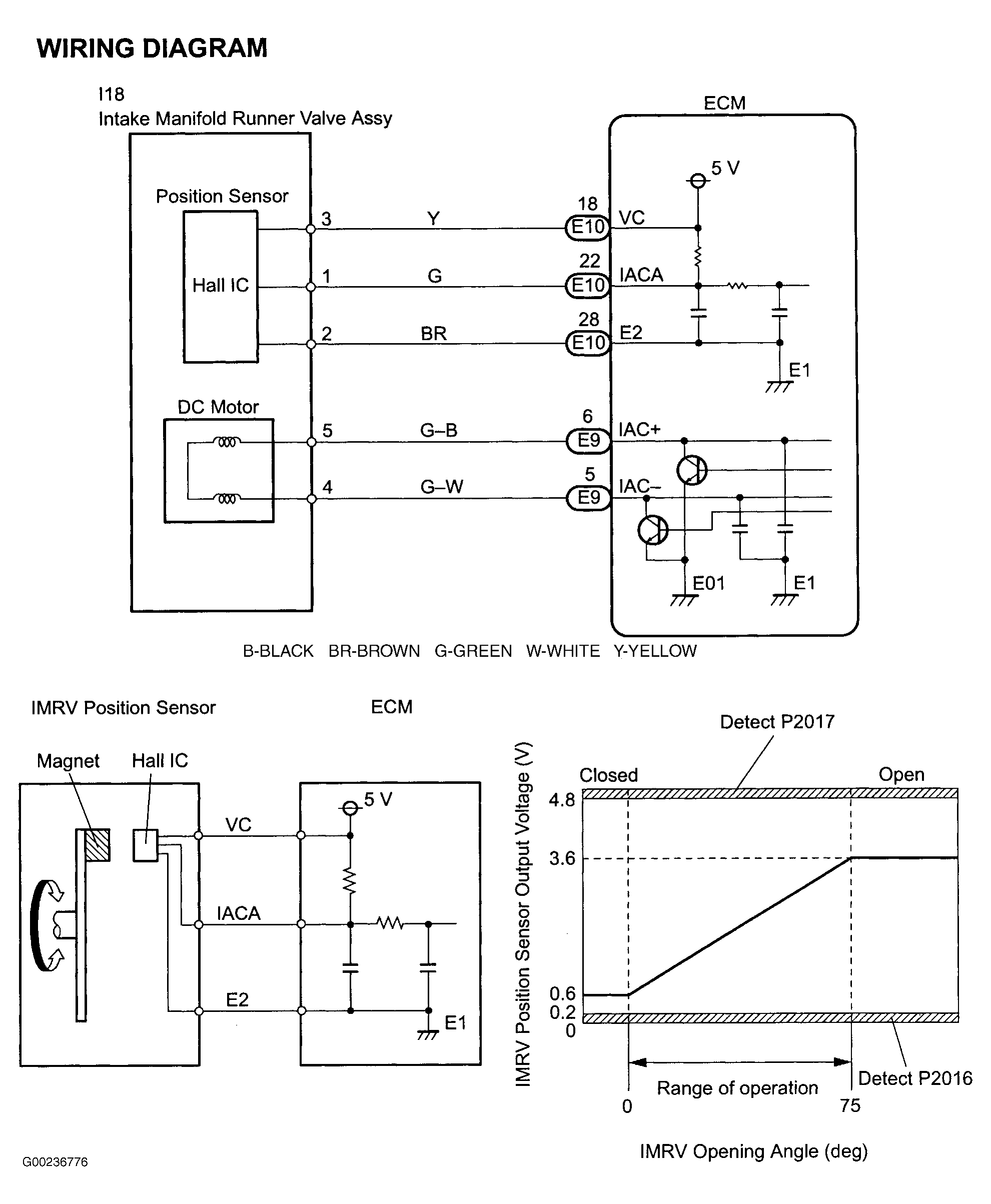

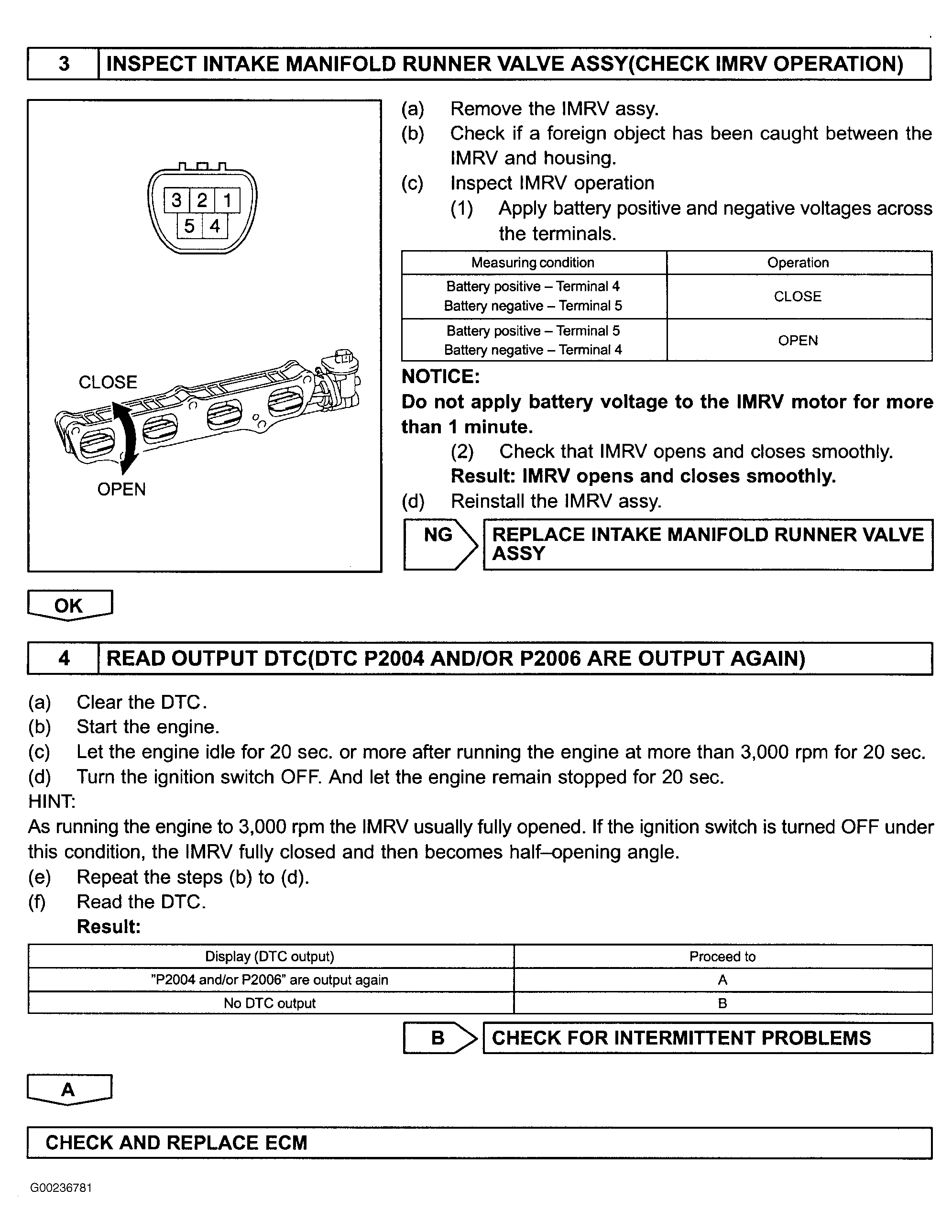

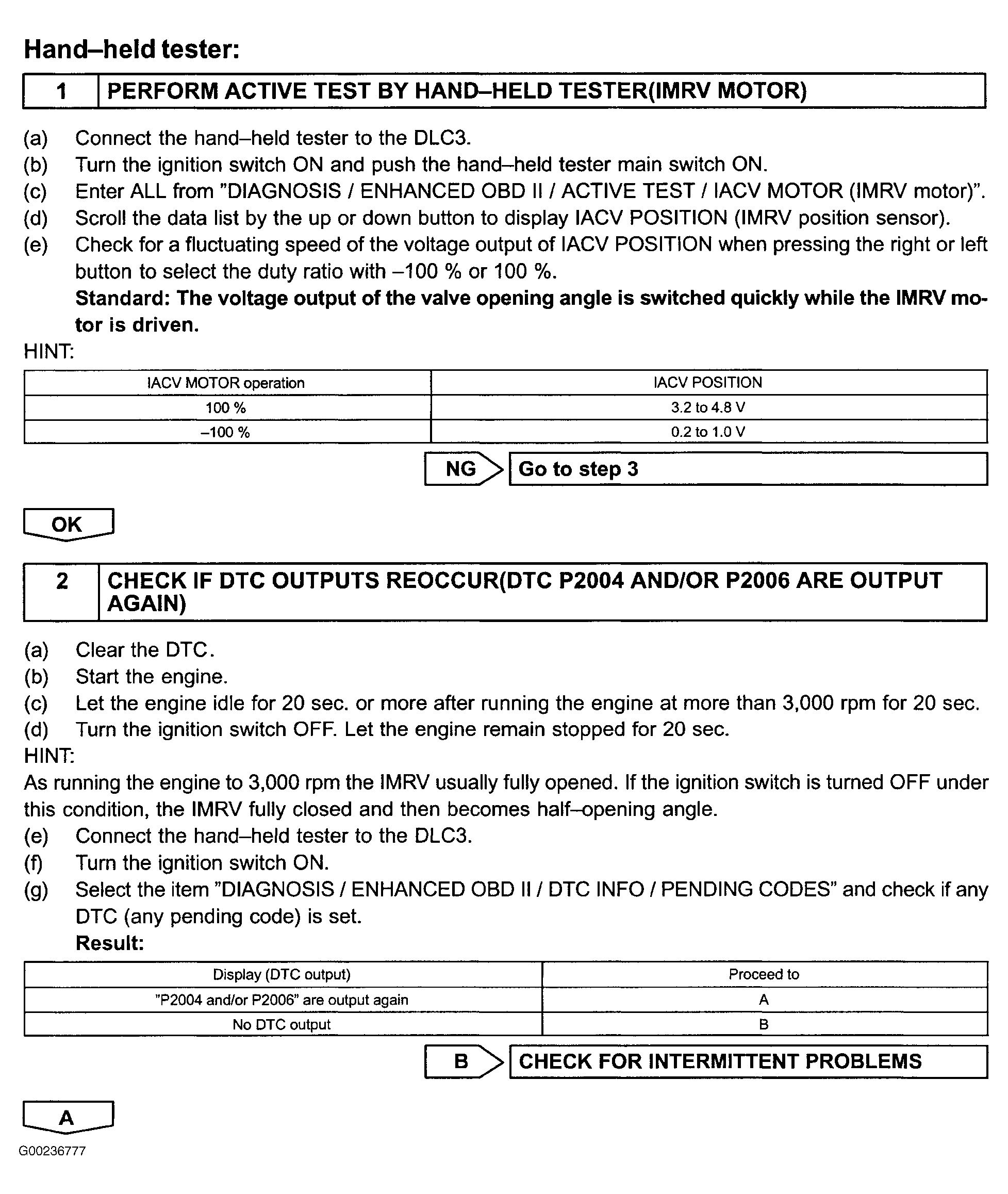

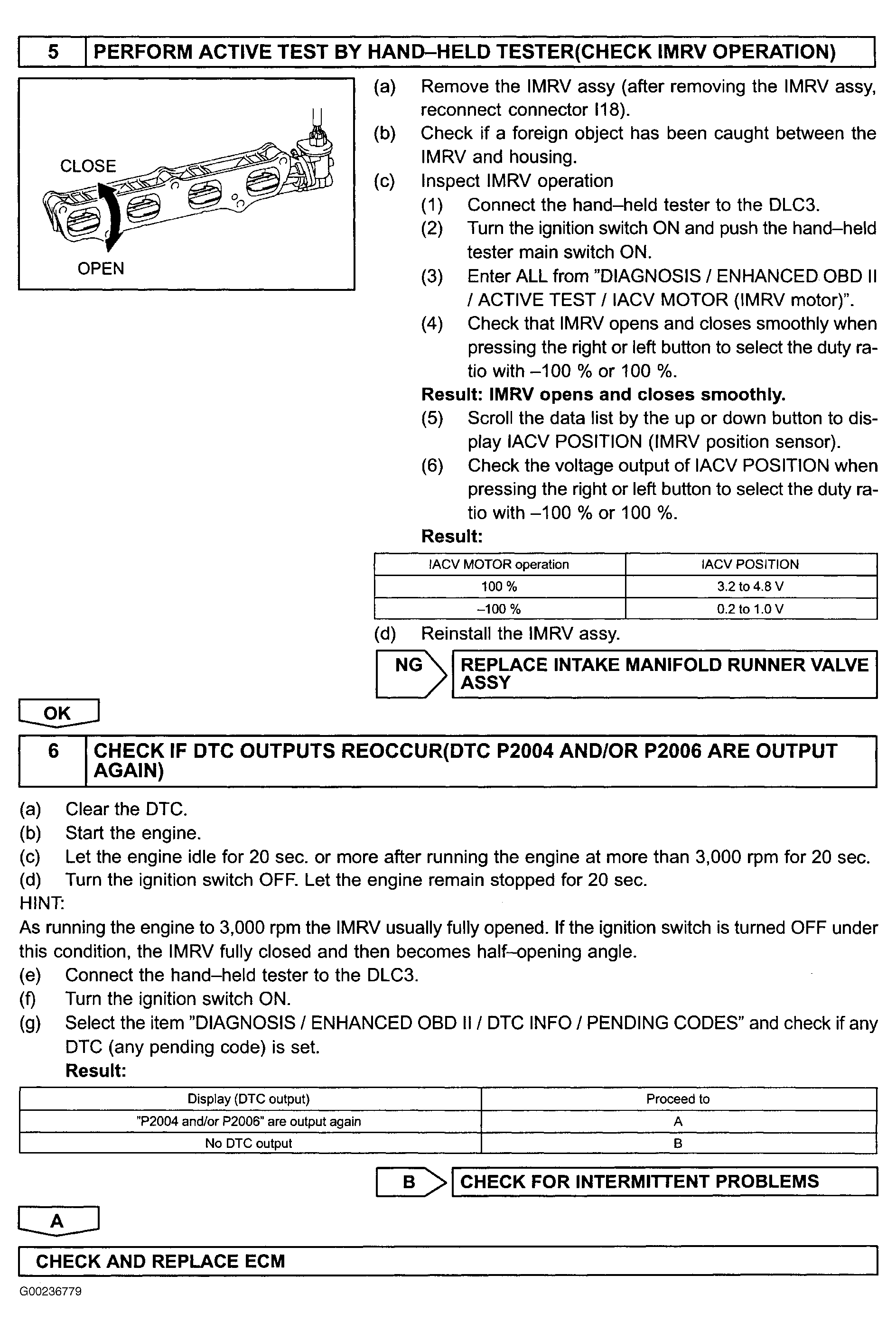

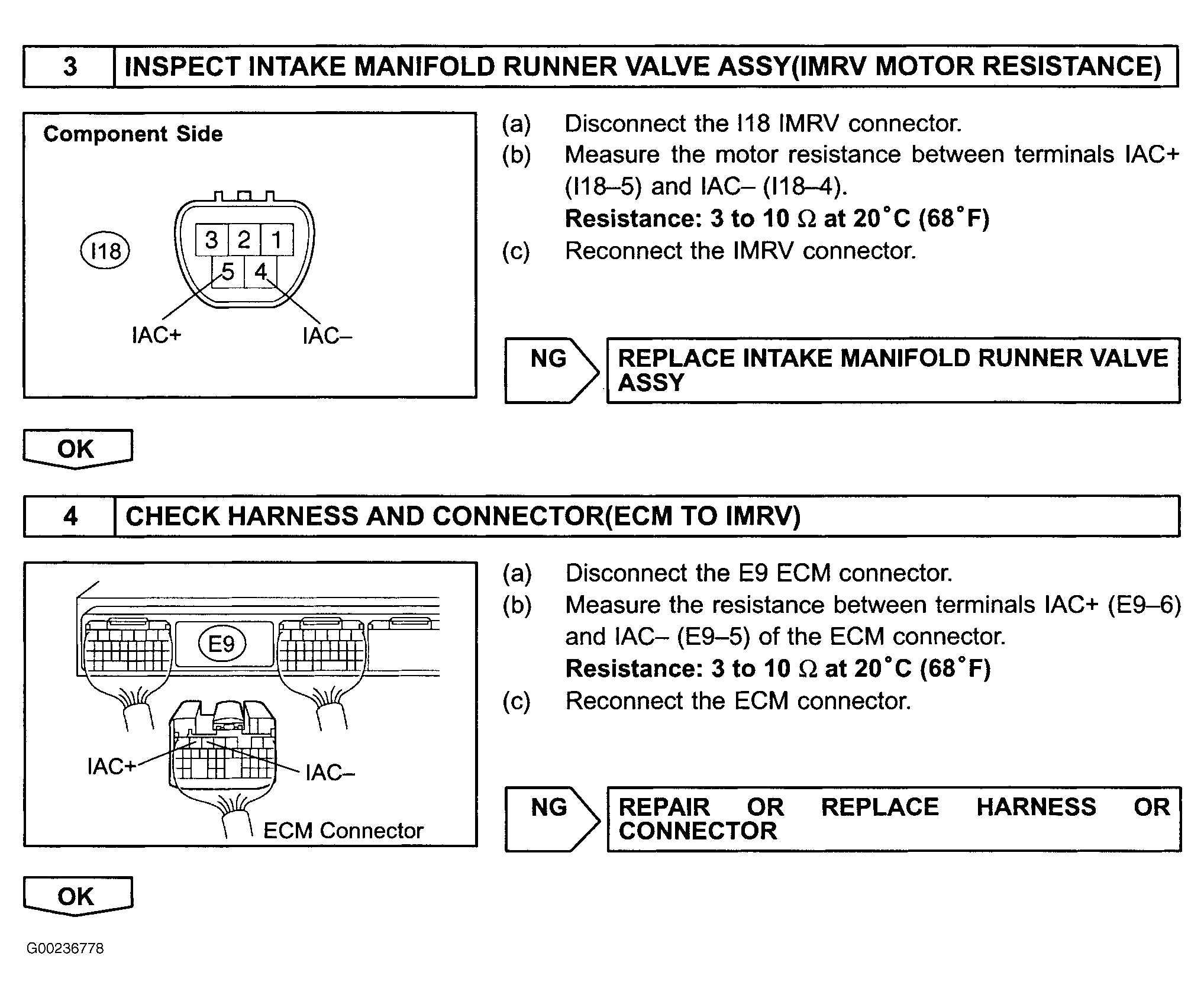

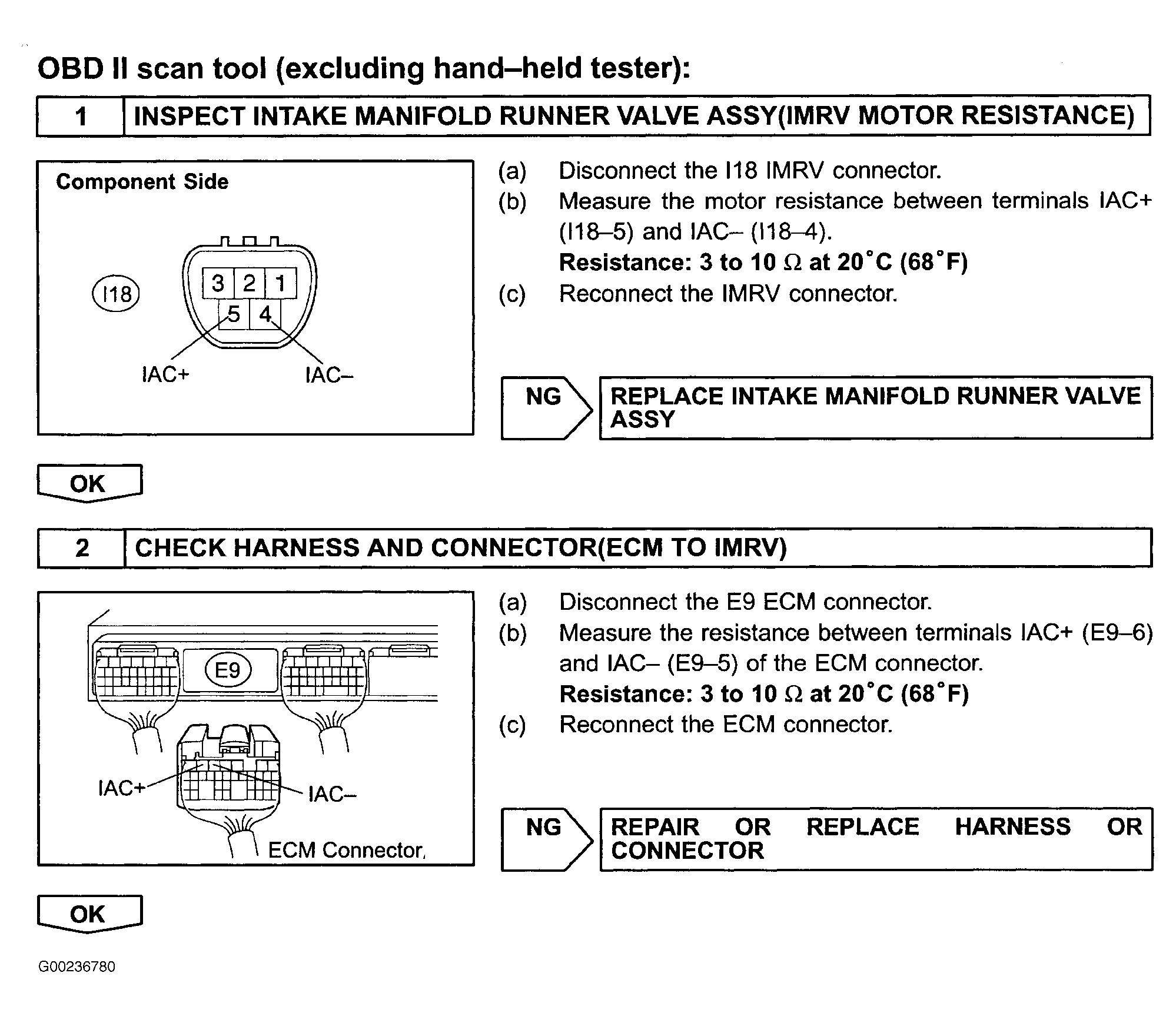

For wiring diagram, see Fig 1. For diagnosis and repair using the hand-held tester, see Fig 2-Fig 4 . For diagnosis and repair using the OBD II scan tool, see Fig 5 and Fig 6 . To clear DTC, see CLEARING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM. To read DTC, see RETRIEVING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article. To check the ECM, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM. For ECM location, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM.
