Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Camry. However, it is still accessible from the selected car via links, so may be relevant.

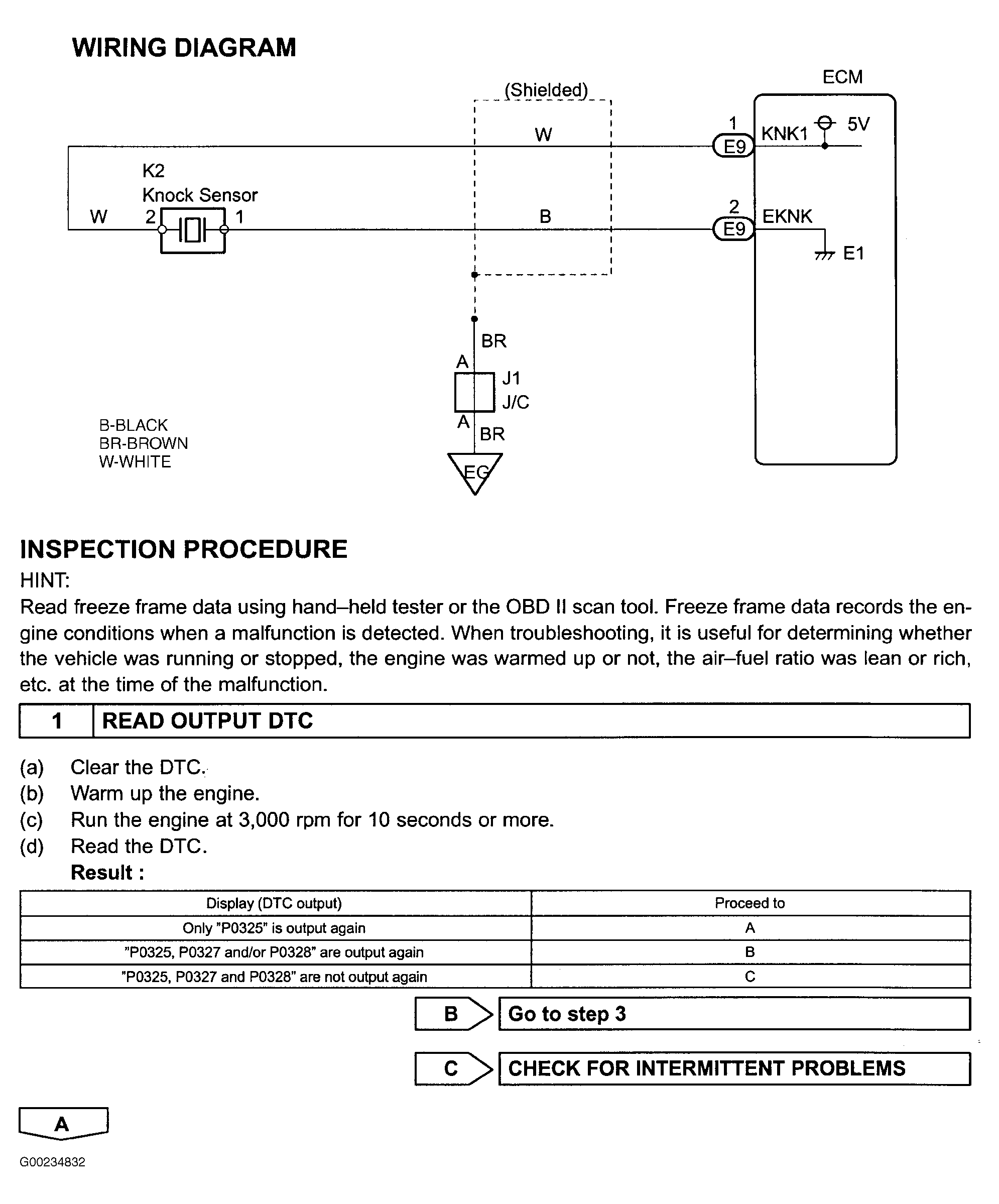

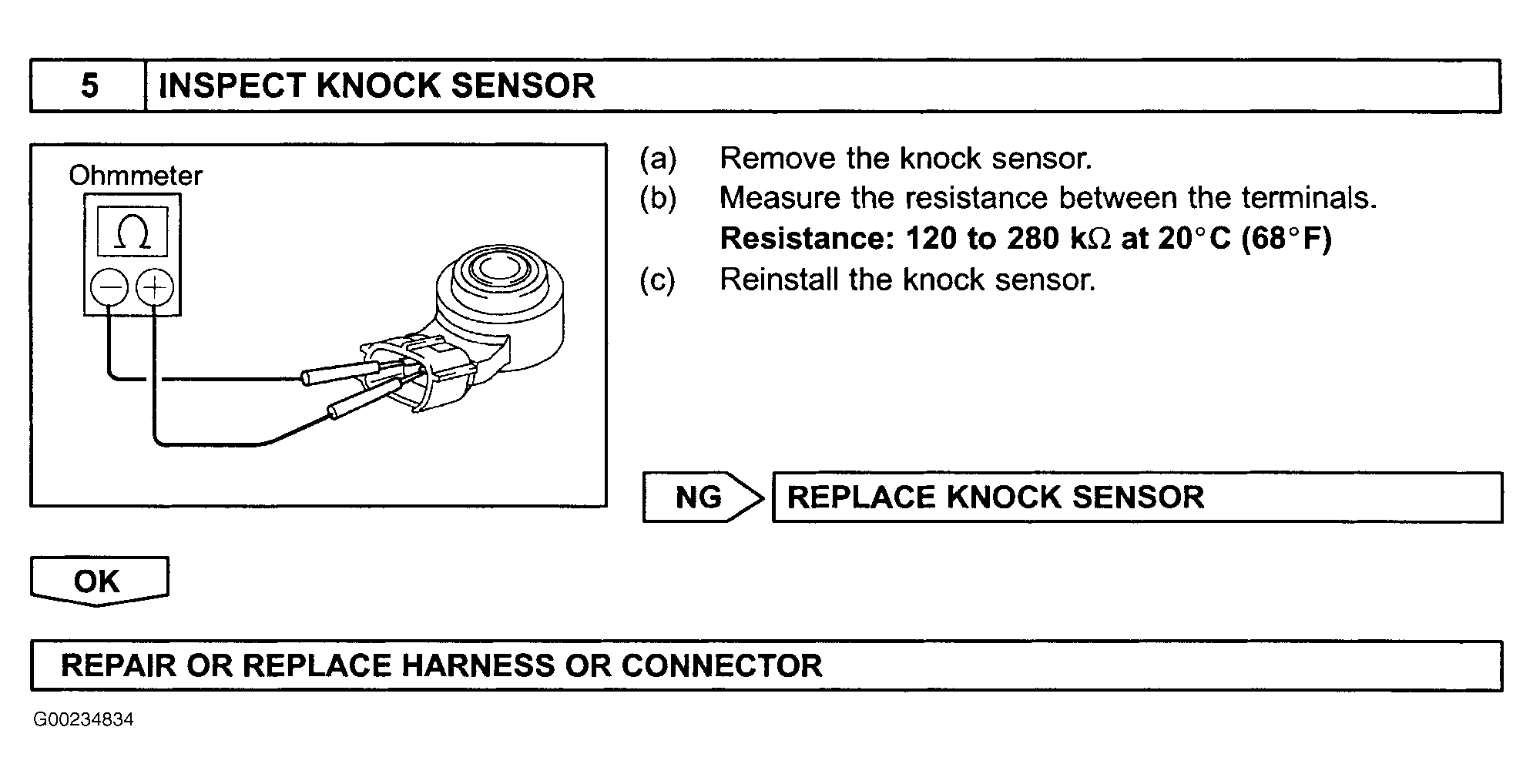

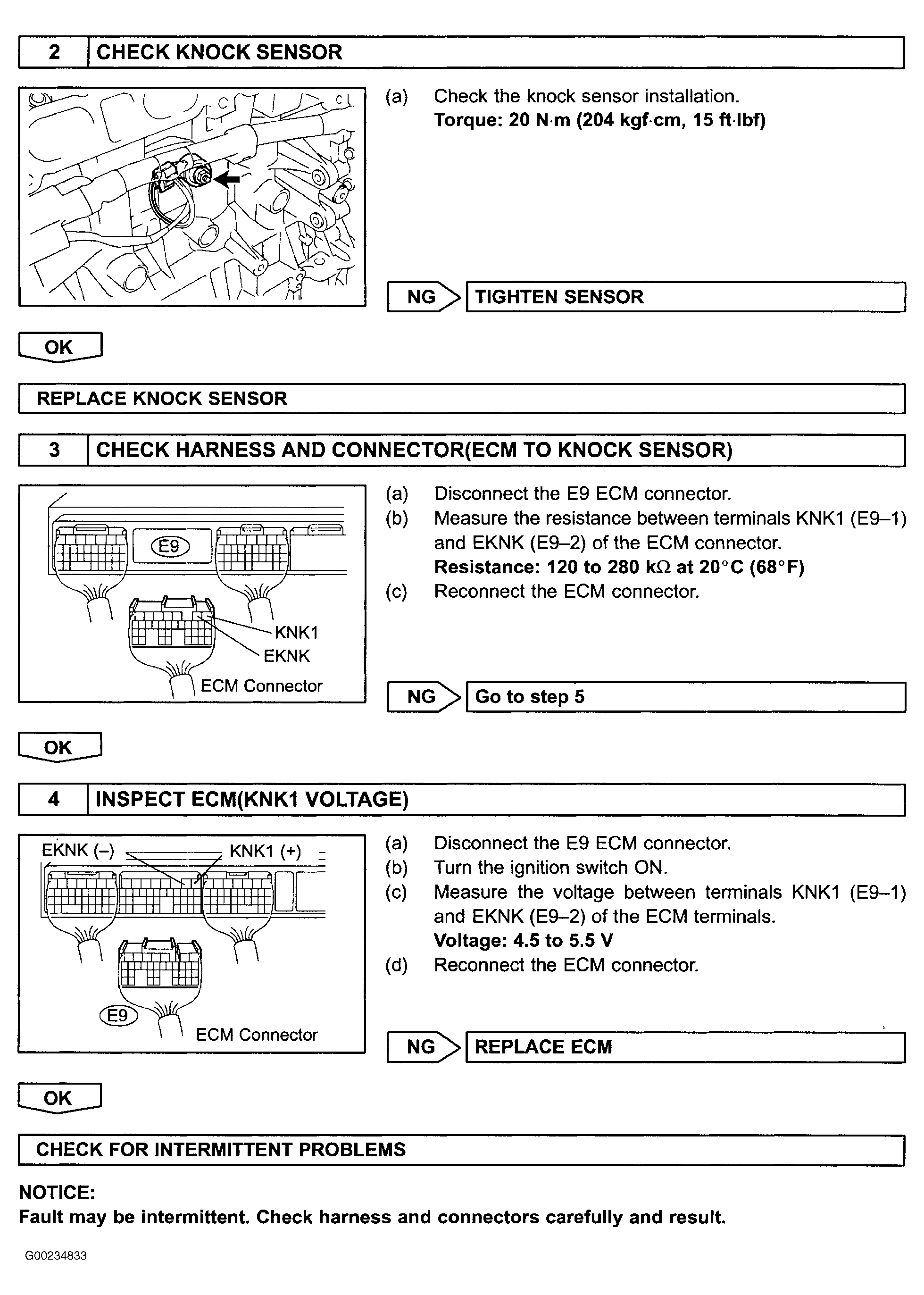

For diagnosis and repair, see Fig 1-Fig 3 . To clear DTC, see CLEARING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM. To read DTC, see RETRIEVING DIAGNOSTIC TROUBLE CODES under SELF-DIAGNOSTIC SYSTEM. For removal and installation of components, see REMOVAL & INSTALLATION - 4-CYLINDER article. For ECM location, see ENGINE CONTROL MODULE LOCATION under SELF-DIAGNOSTIC SYSTEM.
