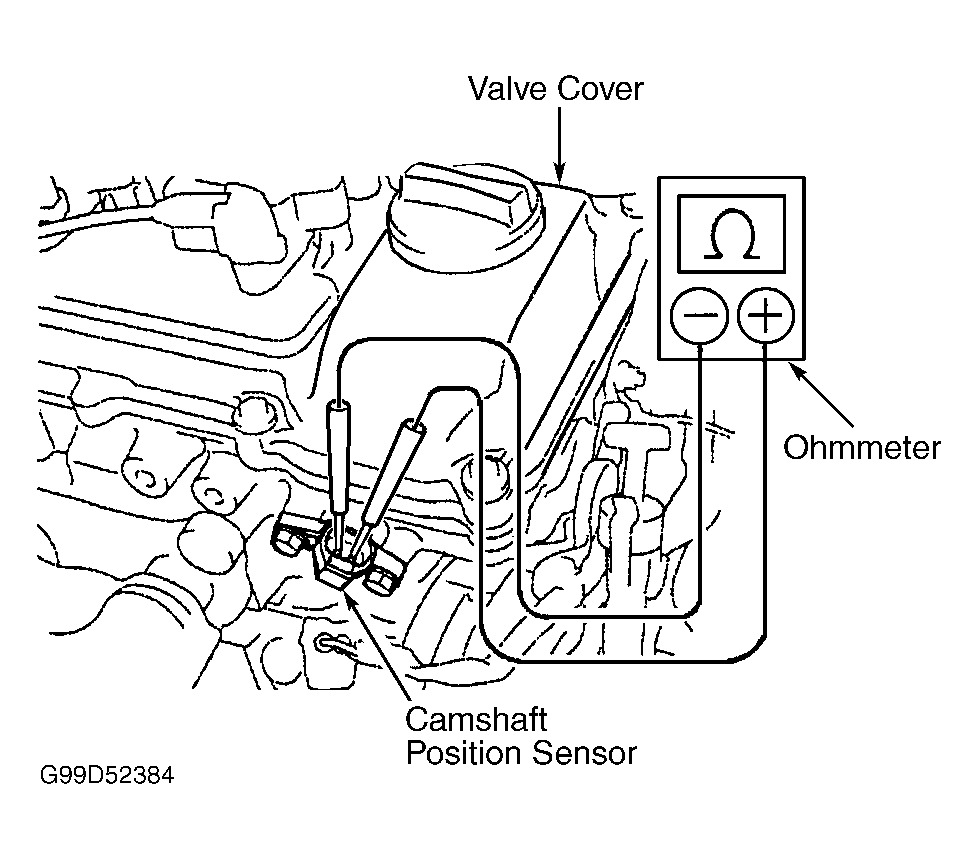

- Disconnect electrical connector at camshaft position sensor. Camshaft position sensor is located at flywheel end of front (radiator side) cylinder head, just below valve cover. See Fig 1.
- Using ohmmeter, check resistance between electrical terminals on camshaft position sensor. See Fig 1. Ensure camshaft position sensor resistance is within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - V6 & V8 article. Reinstall electrical connector on camshaft position sensor.
