Avalon, Highlander & Sienna
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

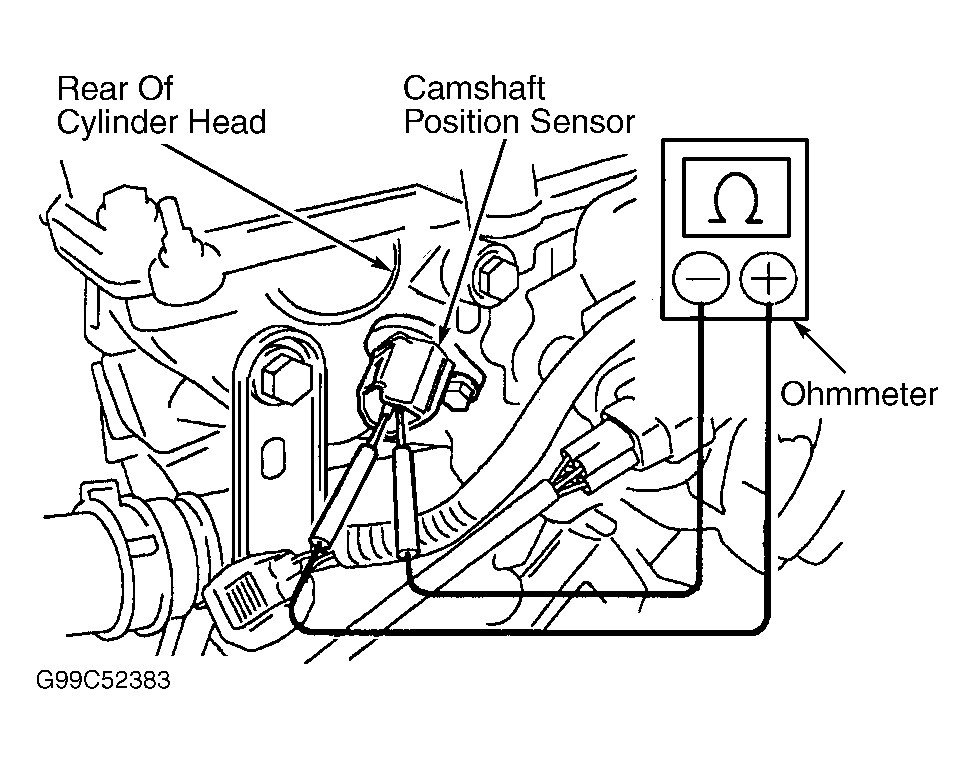

- Two camshaft position sensors are used. Camshaft position sensors are located at flywheel end of each cylinder head, just below valve cover. See Fig 1. Camshaft position sensors may also be referred to Variable Valve Timing (VVT) sensors. Remove necessary components for access to electrical connector at camshaft position sensor. Disconnect electrical connector at camshaft position sensor.
- Using ohmmeter, check resistance between electrical terminals on each camshaft position sensor. See Fig 1. Ensure camshaft position sensor resistance is within specification. See CAMSHAFT POSITION SENSOR RESISTANCE table. Replace camshaft position sensor if resistance is not within specification. See CAMSHAFT POSITION SENSOR under IGNITION SYSTEMS in REMOVAL, OVERHAUL & INSTALLATION - V6 & V8 article. Reinstall electrical connector on camshaft position sensor.
