CAMRY & CAMRY SOLARA

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor.
  2. Disconnect 6-pin electrical connector from throttle body for TP sensor. Using ohmmeter, check resistance between VC and E2 terminals on throttle body for TP sensor. See Fig 1. Replace throttle body assembly if resistance is not within specification. See THROTTLE POSITION SENSOR RESISTANCE  table.
THROTTLE POSITION SENSOR RESISTANCE

Application Throttle Position Terminals Ohms
Camry & Camry Solara
Fully Closed VC & E2 (1) 1200-3200
Fully Closed VTA & E2 (1) 1800-10,500
Fully Closed VTA2 & E2 (1) 1800-10,500
Celica (With 1ZZ-FE Engine)
Fully Closed VTA & E2 (1) 200-5700
Fully Open VTA & E2 (1) 2000-10,200
Closed Or Open VC-E2 (1) 2500-5900
Celica (With 2ZZ-GE Engine) (2)
Corolla & ECHO
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
Closed Or Open VC & E2 2500-5900
Highlander
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
Closed Or Open VC & E2 2500-5000
Matrix (1ZZ-FE & 2ZZ-GE Engines)
Fully Closed VTA & E2 2000-10,200
Fully Open VTA & E2 200-5700
Closed Or Open VC & E2 2500-6000
MR2 (With Standard Type Manual Transaxle)
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(3) VC & E2 2500-5900
MR2 (With Sequential Manual Transaxle)
(3) VC & E2 (1) 1200-3200
Prius
(3) VC & E2 (1) 1200-3200
RAV4
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(3) VC & E2 2500-5900
Tacoma (4)
Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
(3) VC & E2 2500-5900
(1) Resistance at 68°F (20°C).
(2) For inspection specifications on Throttle Position (TP) sensor of a Celica equipped with 2ZZ-GE Engine, see CELICA .
(3) Manufacturer does not specify throttle position when measuring resistance.
(4) Apply vacuum to throttle opener before checking TP sensor.

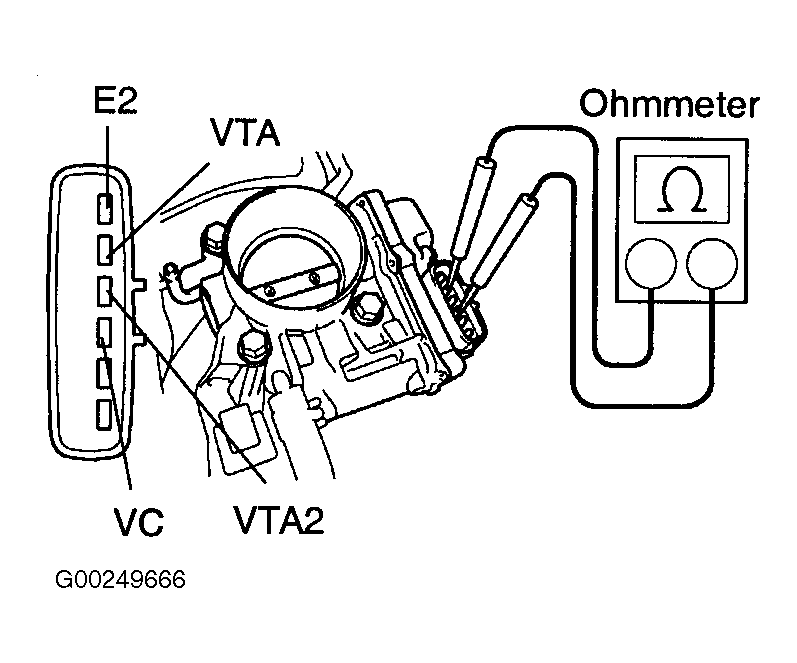

Fig 1: Identifying Throttle Position Sensor Terminals (Camry & Camry Solara)
G00249666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
