Throttle Position Sensor: CELICA

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For inspection of Throttle Position (TP) sensor, see Fig 1-Fig 10 .

Fig 1: Identifying Throttle Position Sensor Terminals (Celica)

G99F52824

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Inspecting Throttle Position Sensor (Celica 1 Of 9)

G00249667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

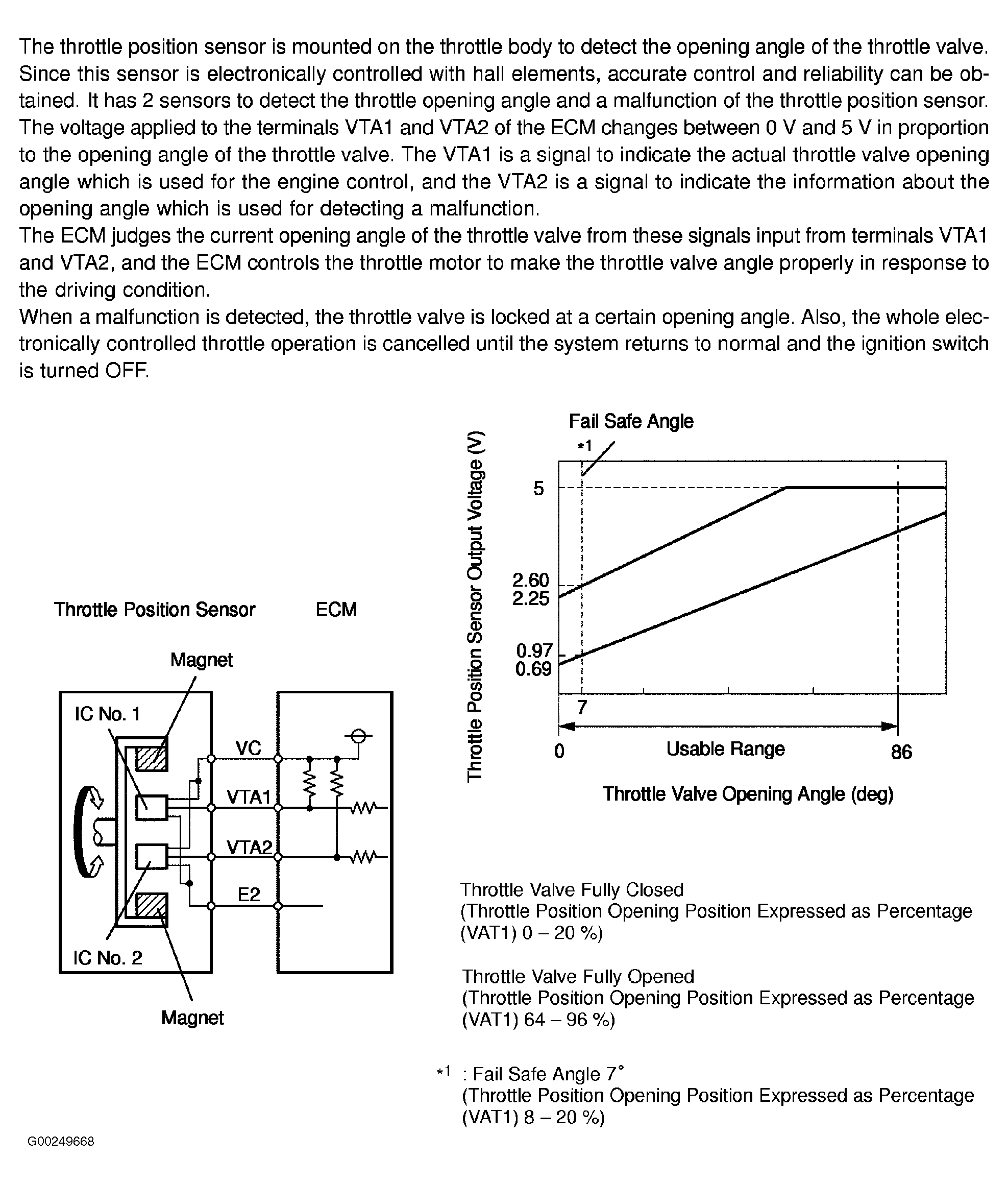

Fig 3: Inspecting Throttle Position Sensor (Celica 2 Of 9)

G00249668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

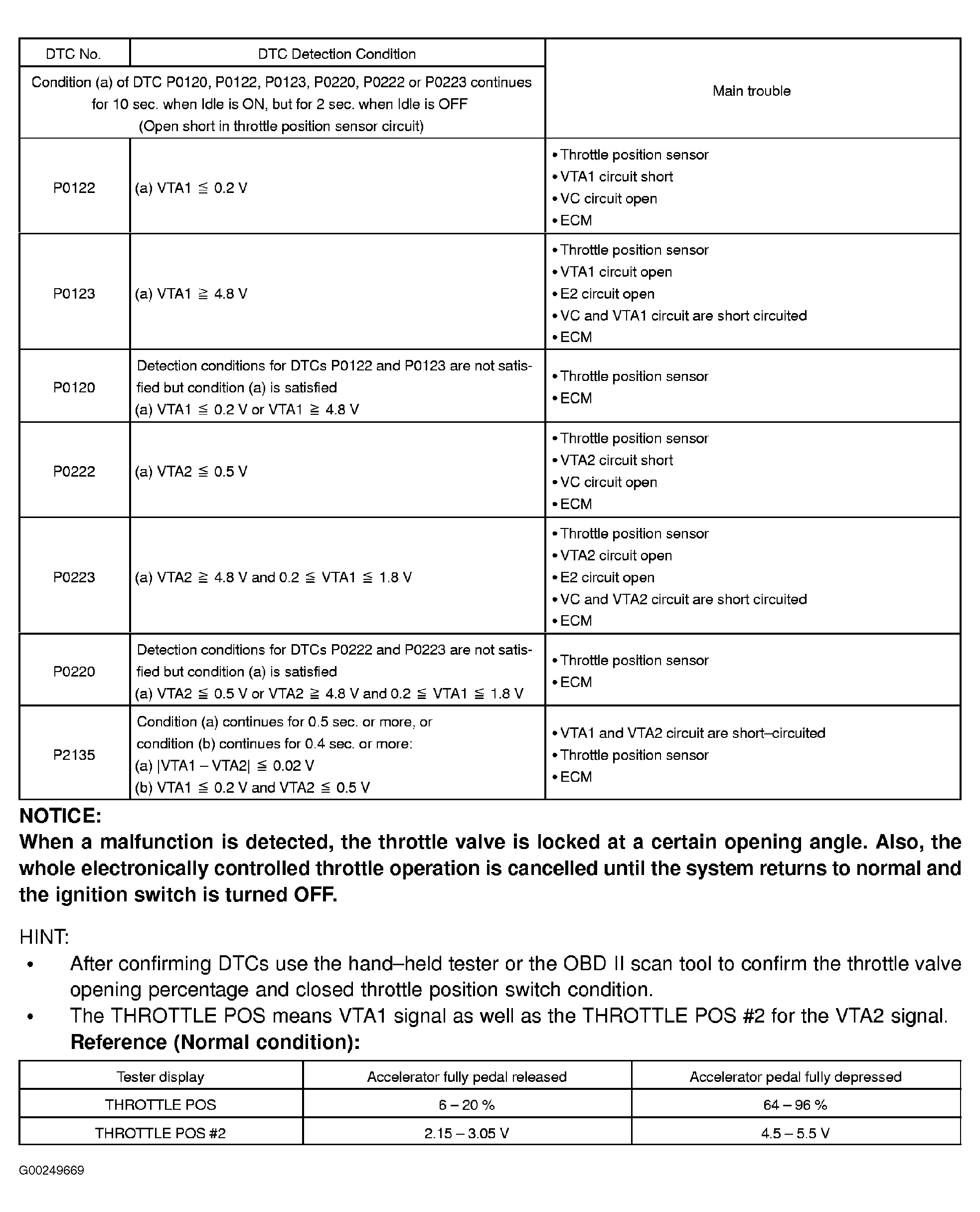

Fig 4: Inspecting Throttle Position Sensor (Celica 3 Of 9)

G00249669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Inspecting Throttle Position Sensor (Celica 4 Of 9)

G00249670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

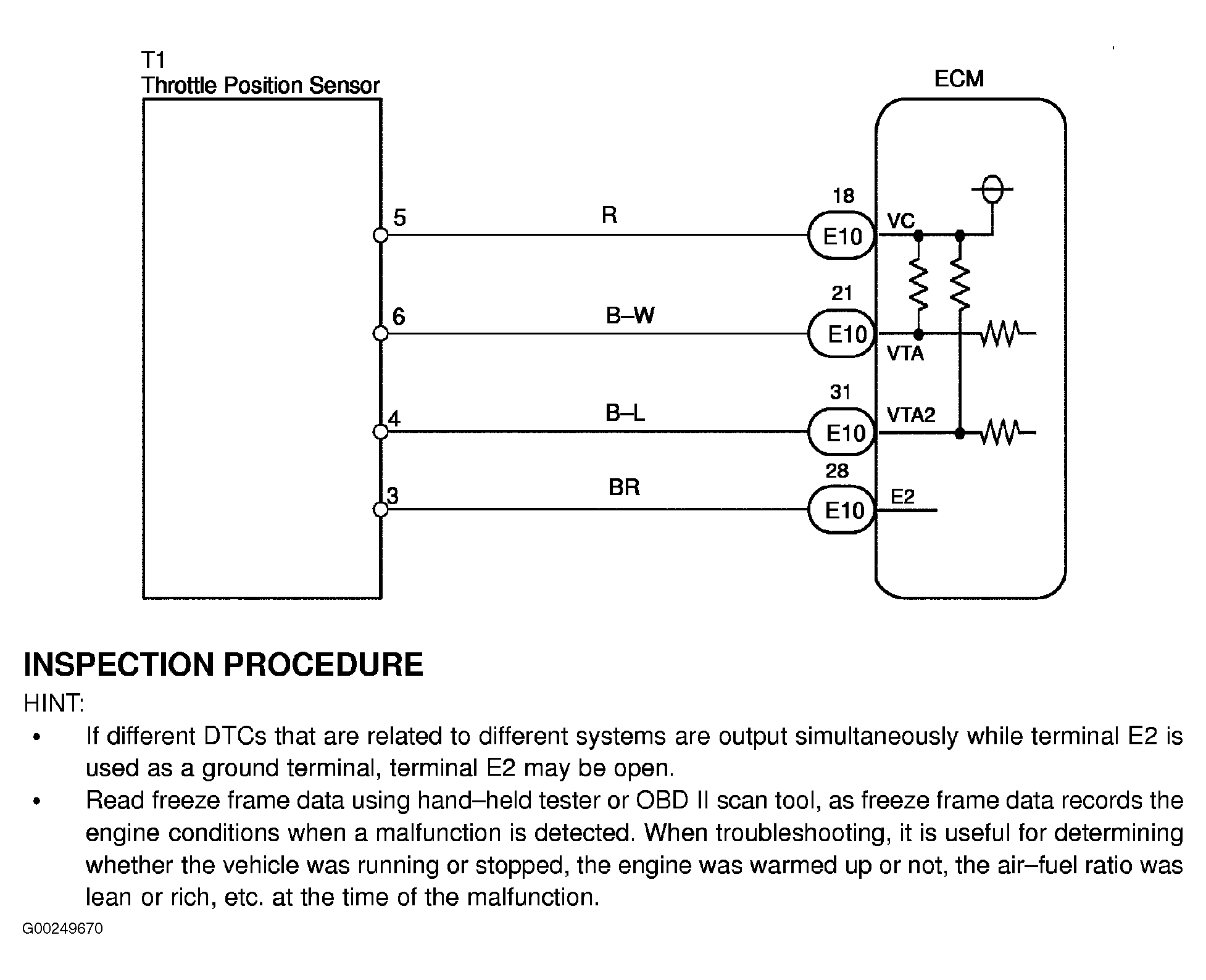

Fig 6: Inspecting Throttle Position Sensor (Celica 5 Of 9)

G00249671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

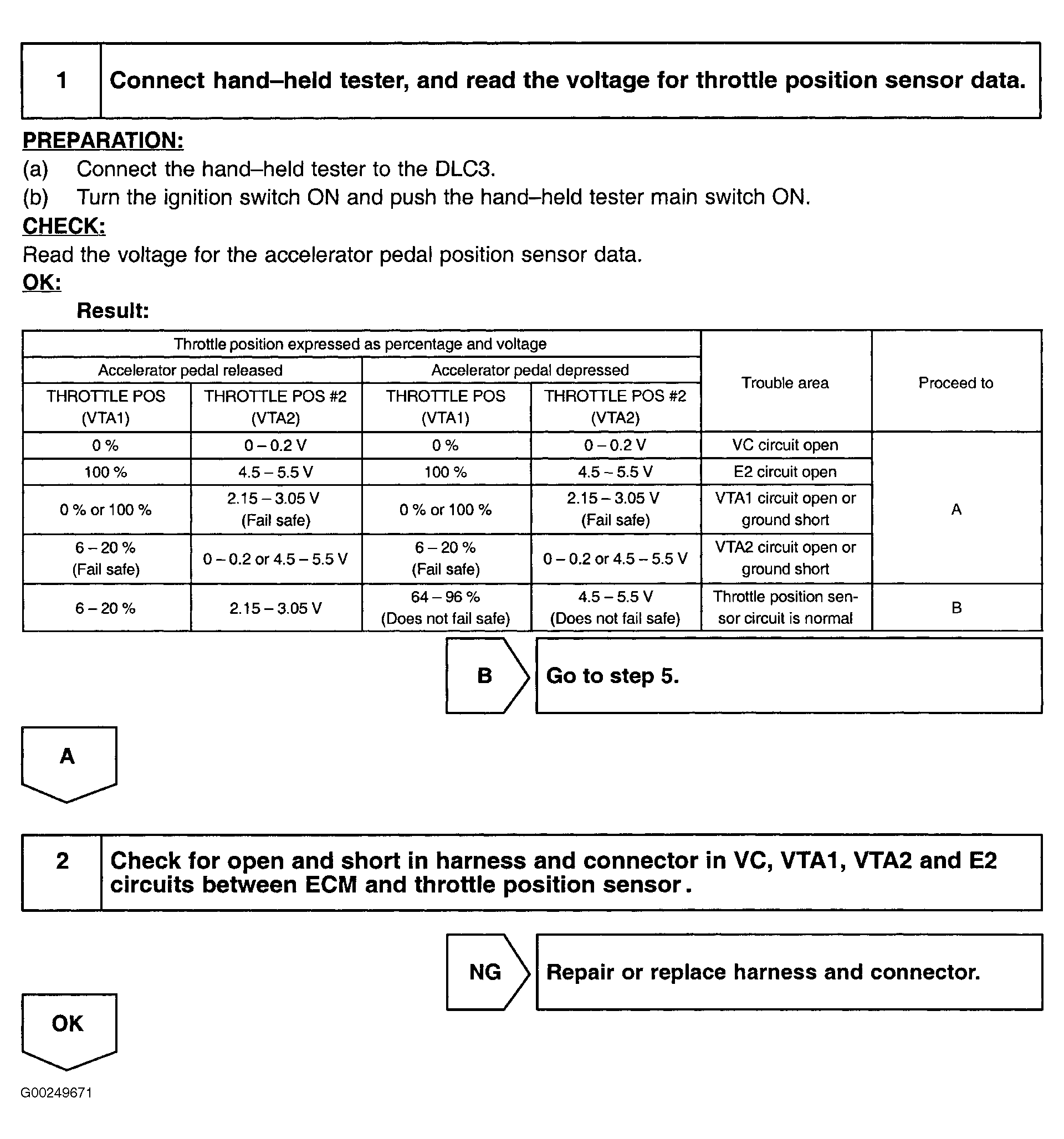

Fig 7: Inspecting Throttle Position Sensor (Celica 6 Of 9)

G00249672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

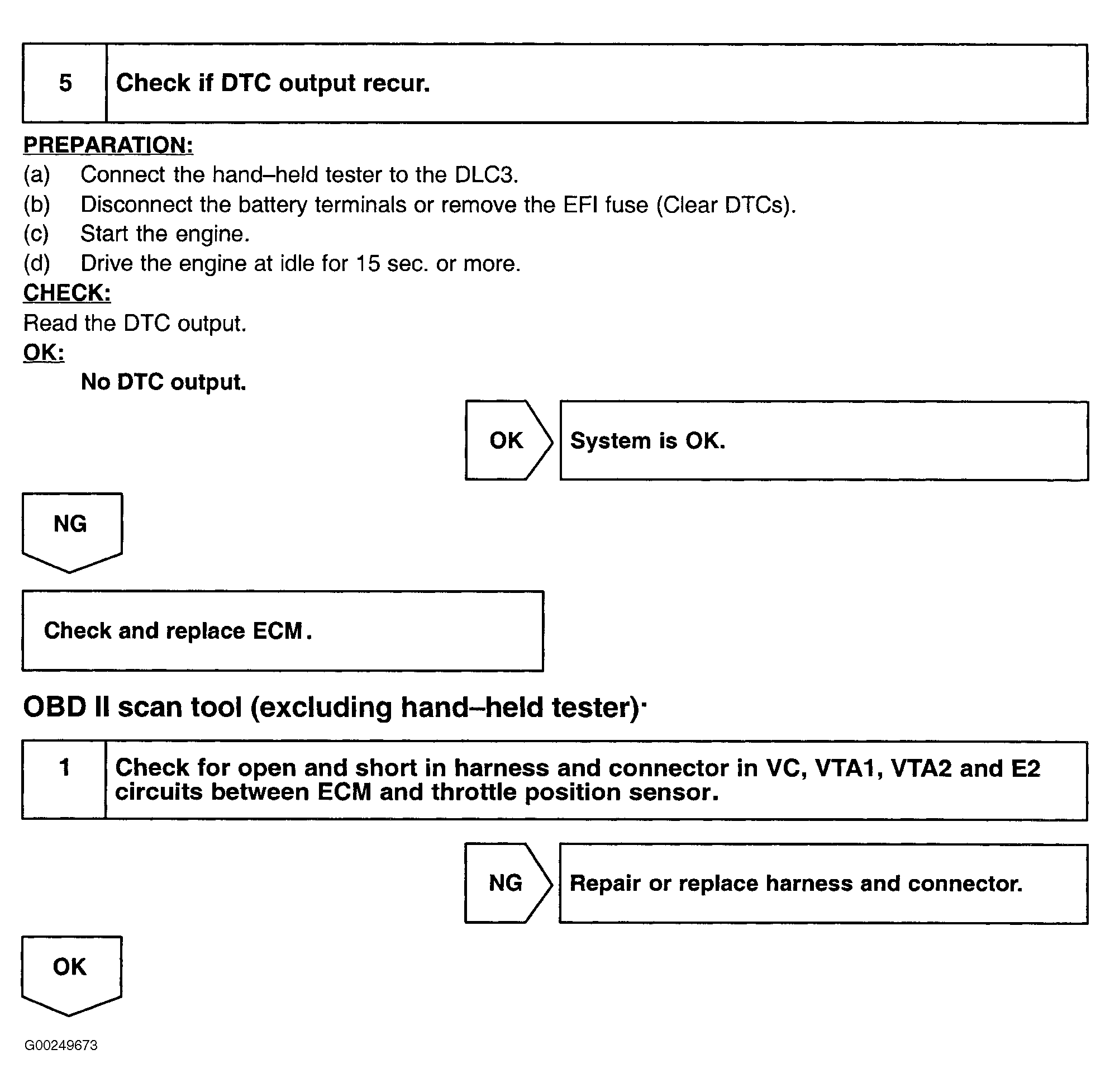

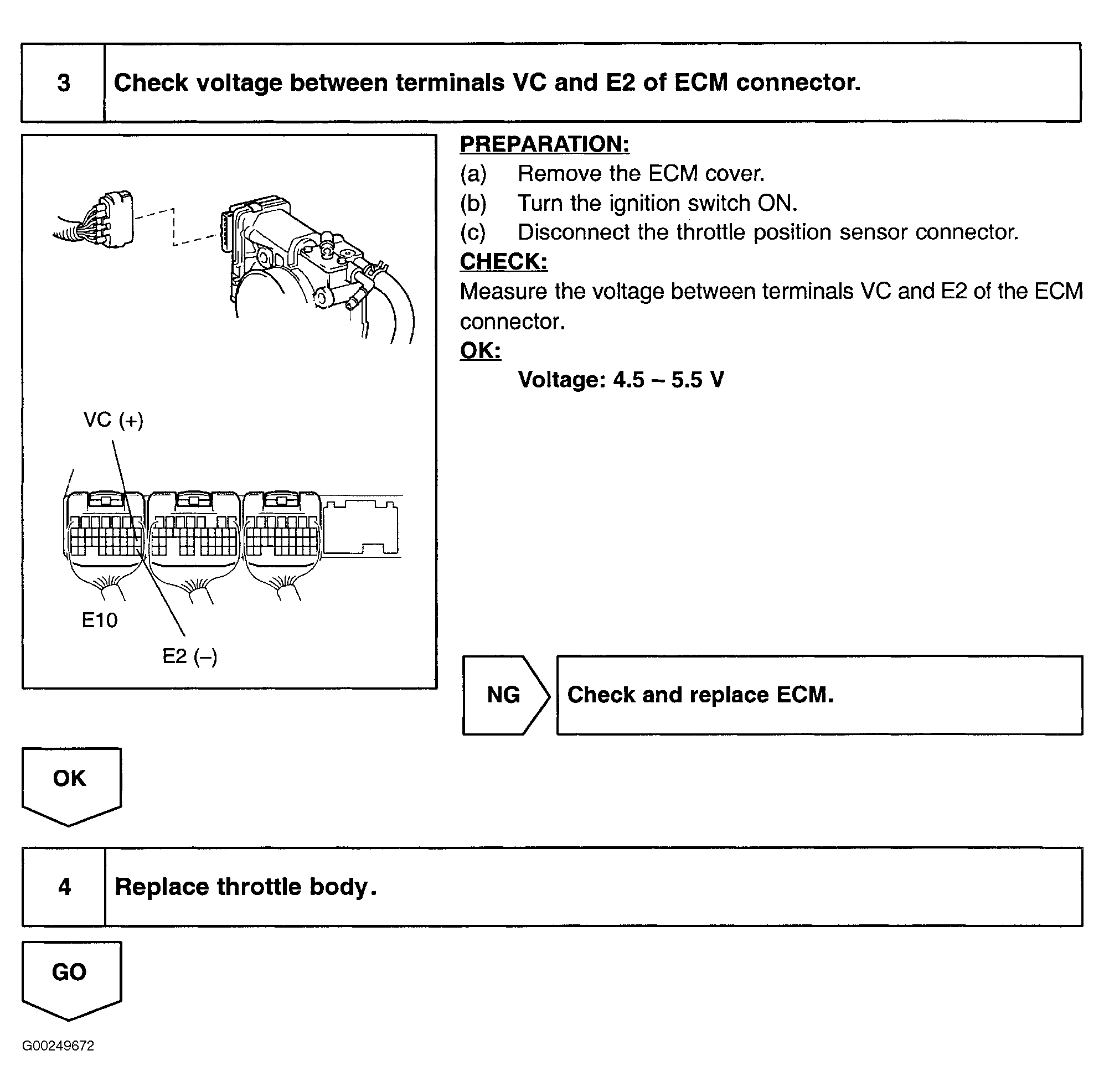

Fig 8: Inspecting Throttle Position Sensor (Celica 7 Of 9)

G00249673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

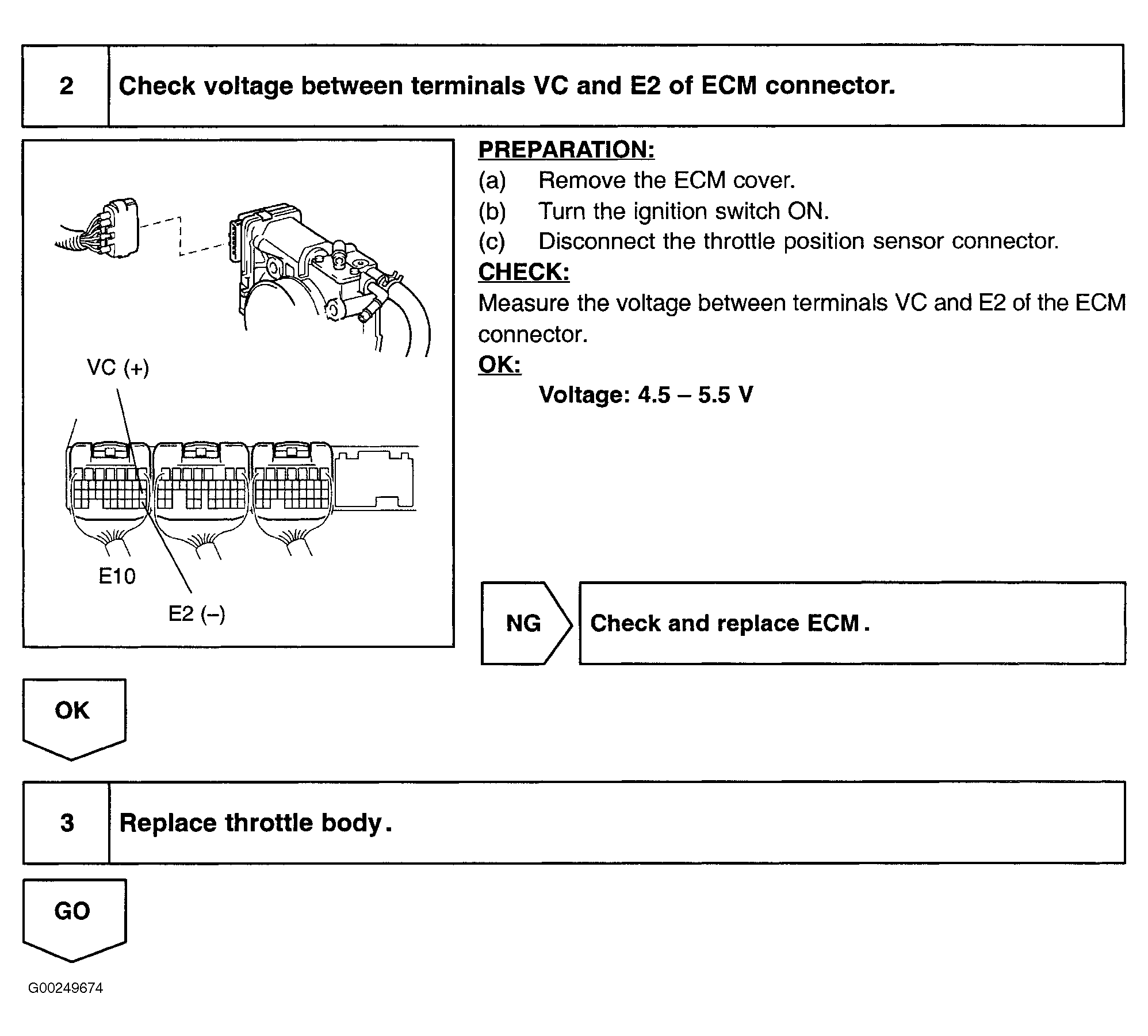

Fig 9: Inspecting Throttle Position Sensor (Celica 8 Of 9)

G00249674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

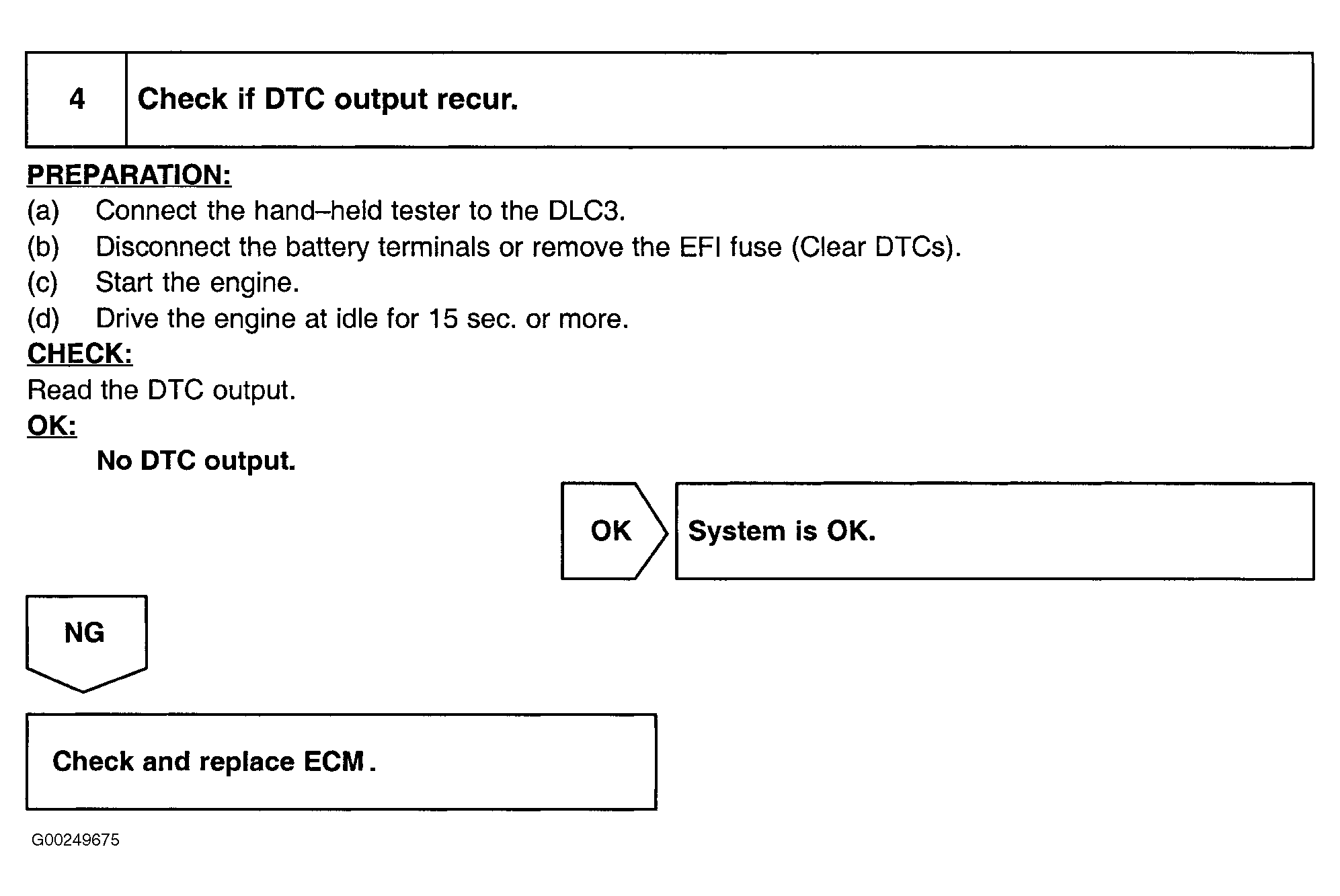

Fig 10: Inspecting Throttle Position Sensor (Celica 9 Of 9)

G00249675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
