Bracket - License Plate - Front - Remove And Replace: Install

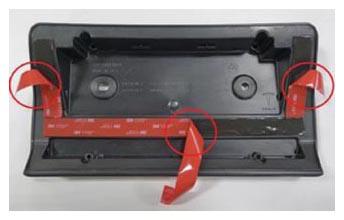

Partially remove the backing from the front license plate bracket adhesive.
NOTE: Release film outwards.

Courtesy of TESLA, INC.

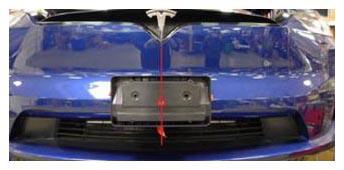

Position the front license plate bracket onto the front fascia.

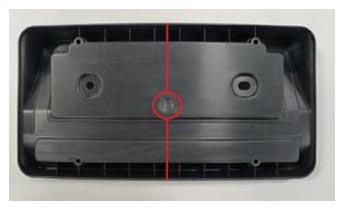

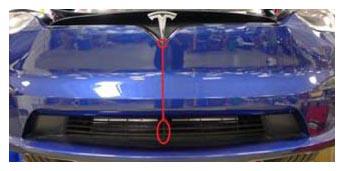

NOTE: Line up the center indicator on the front of the bracket with the center of the front fascia grille and bottom of the T-badge.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

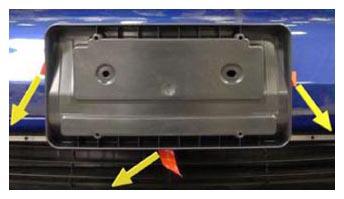

Remove the remaining backing from the double-sided tape.

Courtesy of TESLA, INC.

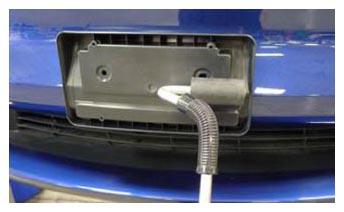

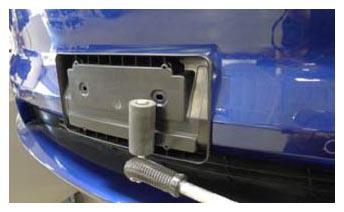

Press the front license plate bracket onto the front fascia to wet-out the double-sided tape.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Vehicles in China only: Install the screws (x2) that secure the license plate bracket to the fascia.
1 Nm (.7 lbs-ft)

CAUTION: Do not overtorque the screws.

Tip: If the vehicle is not reworked yet, rework the license plate bracket first. See Bracket - License Plate - Front (Rework)
- Cordless Ratchet/Impact Driver
- Torque Wrench 1/4in Dr Hexagon - 1060071-00-A
- PH2 Phillips Screwdriver bit
