Bracket - License Plate - Front (Rework)

Last modified: 25/06/2023 18:15:24

• Paint pen (x1)
• Ruler (x1)
• 1126494-00-A Drill Bit Set

Procedure

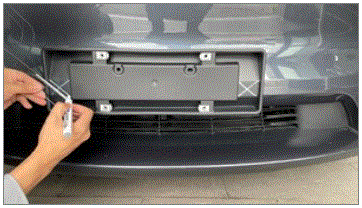

1. Use the paint pen to mark the center holes (x2) on both sides of the license plate bracket.

   Courtesy of TESLA, INC.

2. Use a 2mm drill bit to drill 2 holes through the fascia at the 2 points marked in the previous step.
   WARNING: Wear protective eyewear and hearing protection when drilling.
   CAUTION: Only drill through the skin of the fascia. Excessive drilling can result in damage to the vehicle.
3. Install screws (x2) that secure the license plate bracket to the fascia.
   CAUTION: Do not overtorque the screws.
4. Remove any dirt and debris from the fascia, and use IPA wipes to clean the surface.
