Diagnosis Procedure

DIAGNOSIS PROCEDURE

Step Action YES NO
1  CHECK GROUND CONNECTIONS
  1. Turn ignition switch OFF.

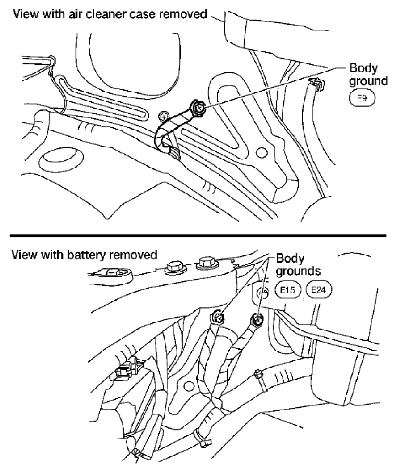

  2. Loosen and retighten three ground screws on the body. Refer to [POWER SUPPLY AND GROUND CIRCUIT CHECK ].
G06441243Courtesy of SUZUKI OF AMERICA CORP.

OK or NG 		 GO TO 2. Repair or Replace ground connections.
2  CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

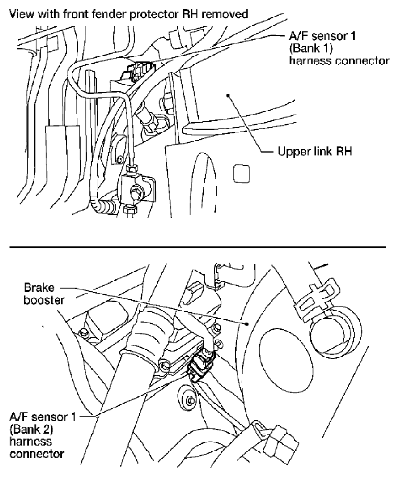

  1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
G06441244G06441245Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

  1. 2. Turn ignition switch ON.
  2. 3. Check voltage between air fuel ratio sensor 1 terminal 4 and ground with SDT or tester.
G06441244G06441245Courtesy of SUZUKI OF AMERICA CORP.SUZUKI OF AMERICA CORP.

Voltage: Battery voltage
OK or NG 		 GO TO 4. GO TO 3.
3  DETECT MALFUNCTIONING PART
Check the following.
  • Harness connectors E2, F32
  • IPDM E/R harness connector E119
  • 15 A fuse (No. 54)
  • Harness for open or short between air fuel ratio sensor 1 and fuse
 Repair or replace harness or connectors.
4  CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
  1. Turn ignition switch OFF.
  2. Disconnect ECM harness connector.
  3. Check harness continuity between ECM terminal 2 (bank 1) or 24, 43 (bank 2) and air fuel ratio (A/F) sensor 1 terminal 3.

    Refer to WIRING DIAGRAM .

    Continuity should exist.

  4. Also check harness for short to ground or short to power.

OK or NG 		 GO TO 5. Repair open circuit or short to ground or short to power in harness or connectors.
5  CHECK AIR FUEL RATIO (A/F) SENSOR 1 HEATER
Refer to [P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER ].
OK or NG 		 GO TO 6. GO TO 7.
6  CHECK INTERMITTENT INCIDENT
Perform [SERVICE INFORMATION FOR ELECTRICAL INCIDENT: INTERMITTENT INCIDENT ]
OK or NG 		 GO TO 7. Repair or replace.
7  REPLACE AIR FUEL RATIO (A/F) SENSOR 1
Replace malfunctioning air fuel ratio (A/F) sensor 1. Refer to EXHAUST MANIFOLD AND THREE WAY CATALYST: EXPLODED VIEW [VQ40DE] .
CAUTION:
  • Discard any air fuel ratio (A/F) sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
  • Before installing new air fuel ratio (A/F) sensor, clean exhaust system threads using Heated Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seize lubricant.
 INSPECTION END
