Exhaust Manifold and Three Way Catalyst: Exploded View [VQ40DE]

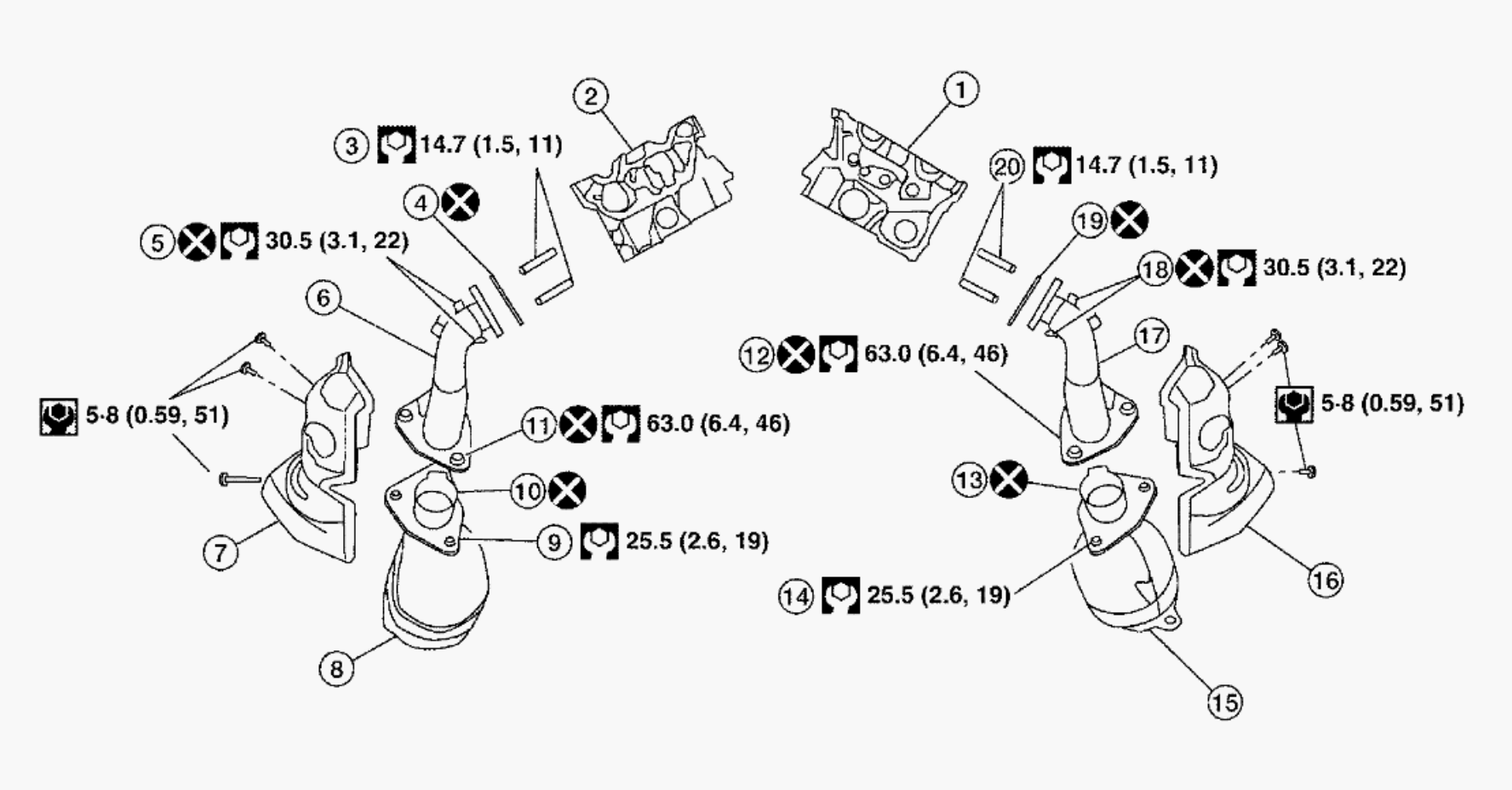

Fig 1: Exploded View Of Exhaust Manifold And Three Way Catalyst With Torque Specifications - VQ40DE (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

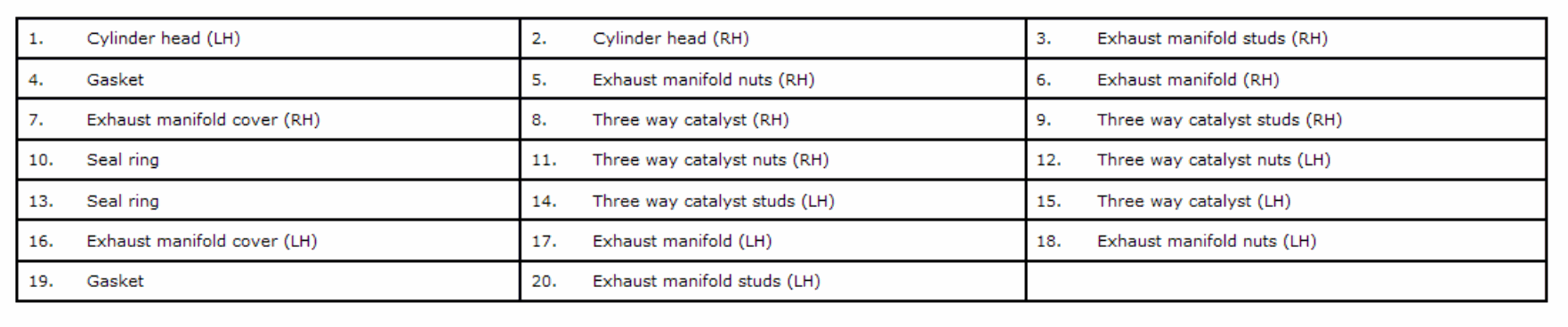

Fig 2: Exploded View Of Exhaust Manifold And Three Way Catalyst With Torque Specifications - VQ40DE (2 of 2)

Courtesy of SUZUKI OF AMERICA CORP.
