1st/Reverse Brake and One-Way No. 2 Clutch Disassembly and Reassembly: Reassembly

Reference: 1ST/REVERSE BRAKE AND ONE-WAY NO. 2 CLUTCH INSPECTION

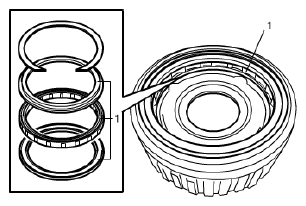

1. Apply A/T fluid to new O-rings and install new O-rings (1) to 1st/reverse brake piston (2).
   Fig 1: Identifying O-Rings To 1st Reverse Brake Piston

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install front planetary ring gear flange (1) on to front planetary ring gear (2).
3. Install snap ring (3), using pliers or the like.
   Fig 2: Identifying Pliers On Snap Ring

   Courtesy of SUZUKI OF AMERICA CORP.
4. Fit flat surface of thrust washer (1) to front planetary ring gear with petroleum jelly so as not to fall washer off when reassembling.
   Fig 3: Identifying Surface Of Thrust Washer

   Courtesy of SUZUKI OF AMERICA CORP.
5. Install one-way No. 2 clutch (1).
6. Install snap ring, using flat head rod or the like.
   Fig 4: Identifying One-Way No. 2 Clutch

   Courtesy of SUZUKI OF AMERICA CORP.
7. Apply A/T fluid to outer surface of one-way No. 2 clutch race (1).
8. Install one-way No. 2 clutch race (1) to one-way No. 2 clutch (2).
   Fig 5: Identifying One-Way No. 2 Clutch Race

   Courtesy of SUZUKI OF AMERICA CORP.
9. Check that one-way No. 2 clutch (1) turns freely when turned counterclockwise [A] and looks when turned clockwise [B].
   Fig 6: Turning Freely One-Way No. 2 Clutch

   Courtesy of SUZUKI OF AMERICA CORP.
