Instrument Cluster Removal

  1. Remove the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL REMOVAL ".
  2. Remove the screws and the instrument cluster.

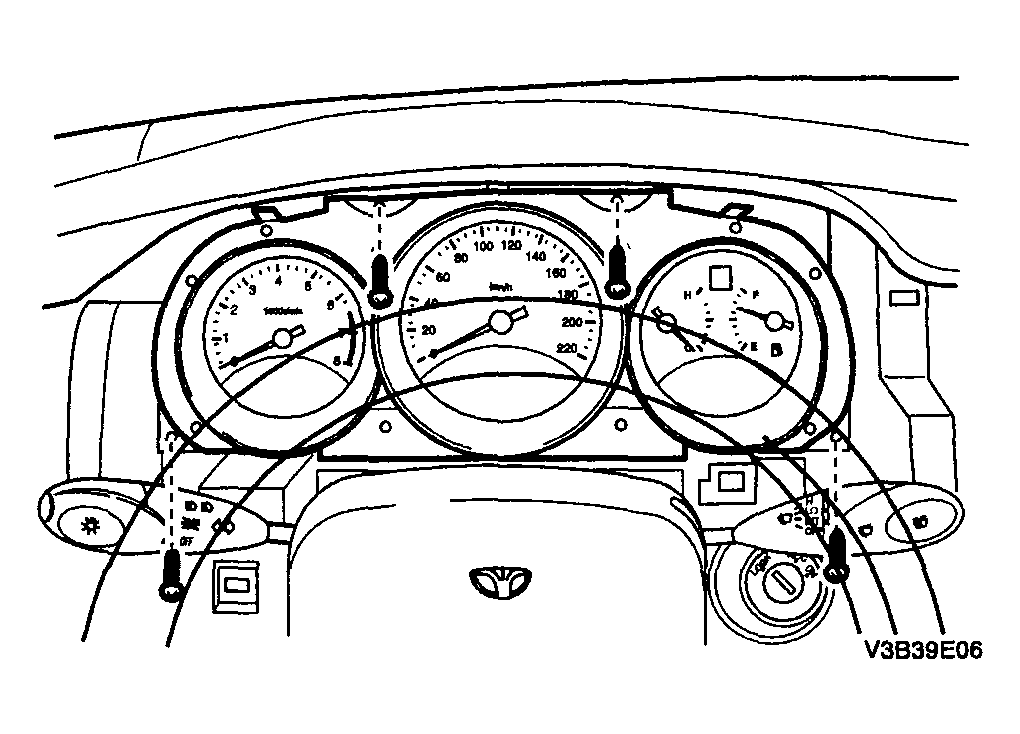

    Fig 1: Removing Screws And Instrument Cluster
    G04096152Courtesy of SUZUKI OF AMERICA CORP.
