Instrument Cluster Trim Panel Removal

  1. Remove the audio system trim plate.
  2. Remove the screws and the instrument cluster trim panel.

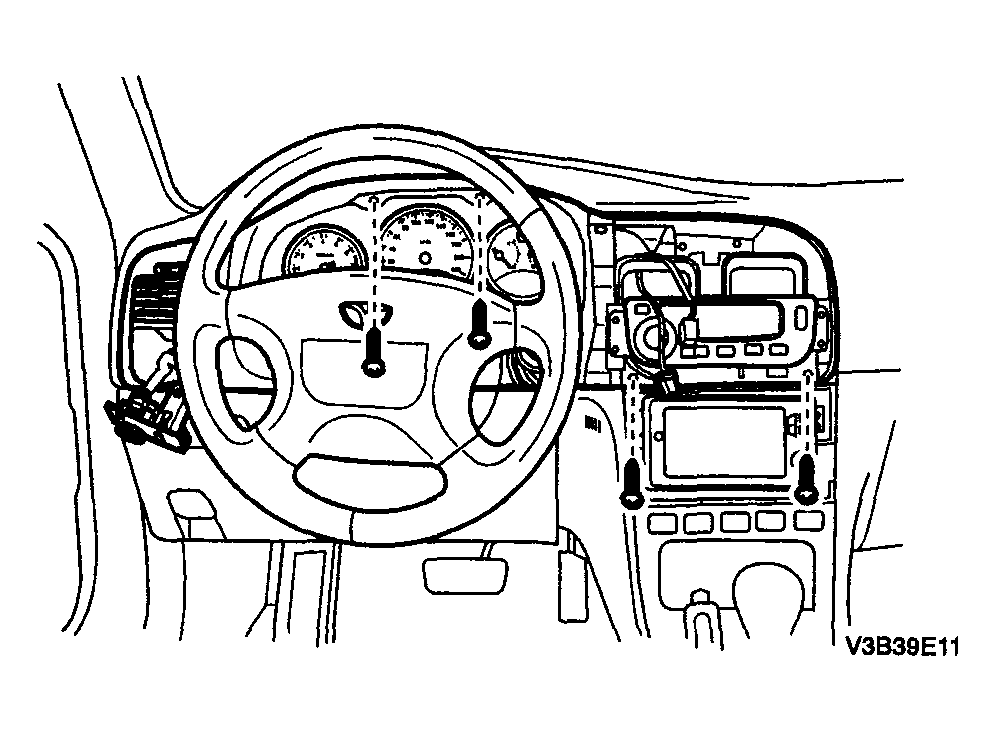

    Fig 1: Removing Screws And Instrument Cluster Trim Panel
    G04096170Courtesy of SUZUKI OF AMERICA CORP.
  3. Disconnect the electrical connectors.
