Brake Pedal Installation

  1. Install a new pedal cover (automatic transaxle pedal shown), if needed.

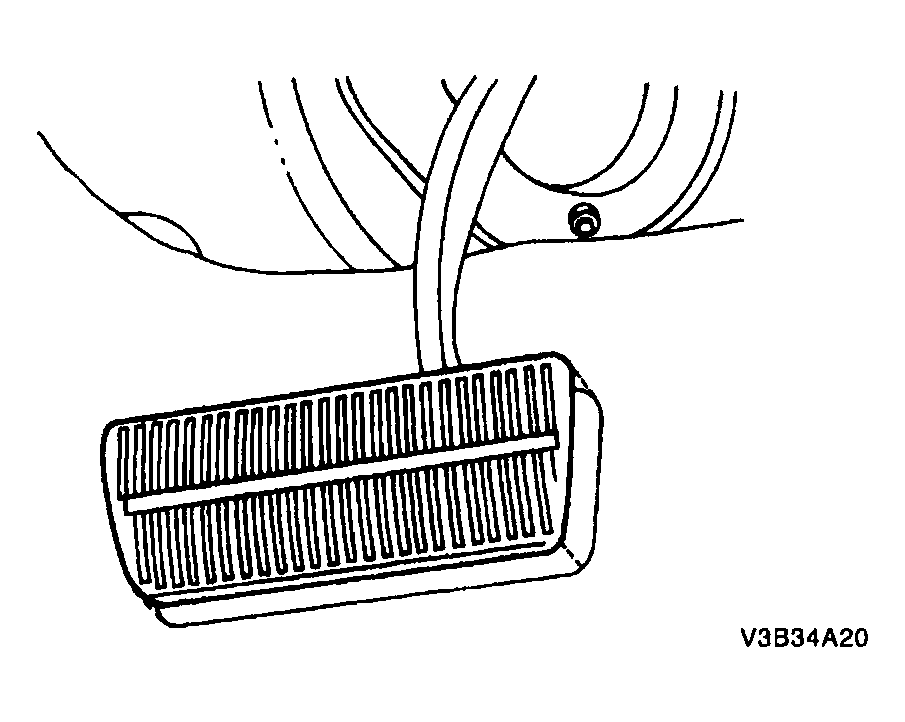

    Fig 1: Installing Pedal Cover
    G04095141Courtesy of SUZUKI OF AMERICA CORP.
  2. Coat the pedal shaft with grease.
  3. Position the brake pedal on the pedal-to-dash panel bracket and the pedal bolt.
  4. Place the hex nut and the spring on the pedal bolt.

    Tighten

    Tighten the brake pedal-to-pedal bracket hex nut to 18 N.m (13 lb-ft).

  5. Install the pushrod clevis to the pedal with the bolt and the spring retaining clip.

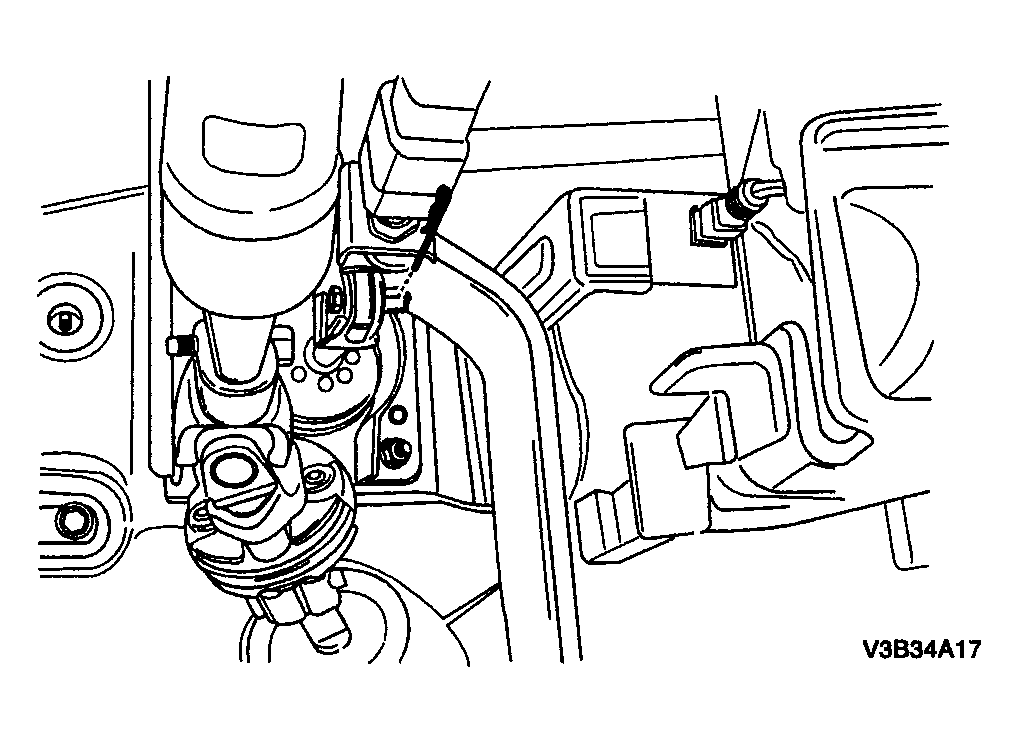

    Fig 2: Installing Pushrod Clevis To Pedal With Bolt
    G04095142Courtesy of SUZUKI OF AMERICA CORP.
  6. Connect the stoplamp switch and connector assembly to the pedal bracket. Refer to "STOPLAMP SWITCH INSTALLATION ".
  7. Install the knee bolster. Refer to "DRIVER'S SIDE KNEE BOLSTER INSTALLATION ".
  8. Install the trim panel with the screws.

    Tighten

    Tighten the trim panel screws to 3 N.m (27 lb-in).

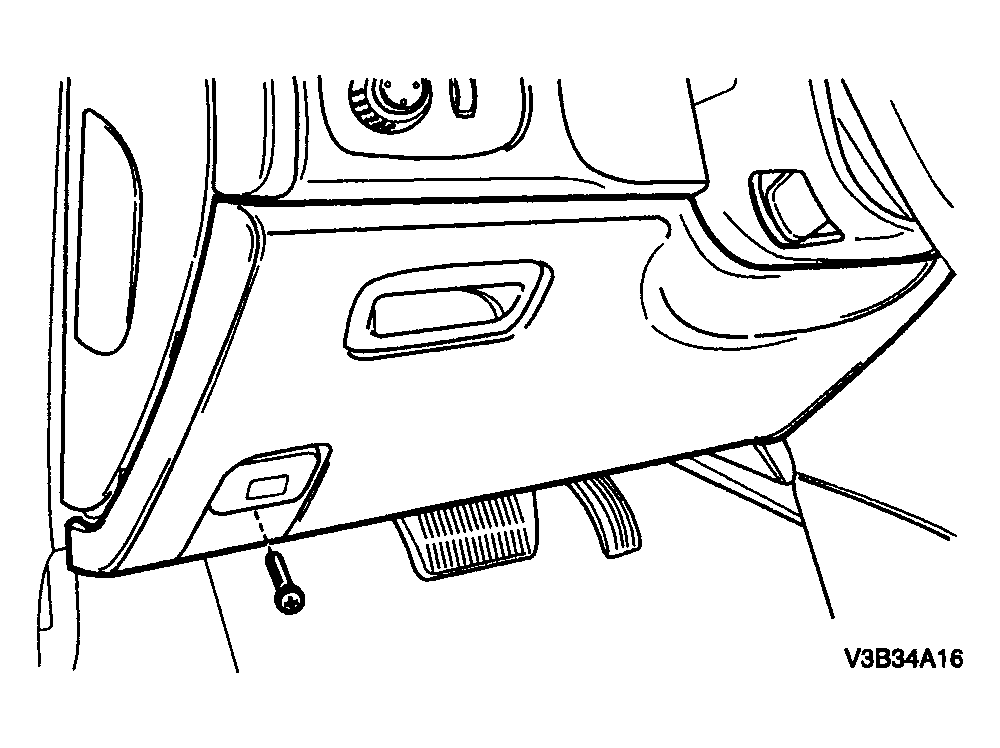

    Fig 3: Installing Trim Panel With Screws
    G04095143Courtesy of SUZUKI OF AMERICA CORP.
