Driver's Side Knee Bolster Installation

  1. Install the knee bolster with the bolts.

    Tighten

    Tighten the driver's side knee bolster mounting bolts to 10 N.m (89 lb-in).

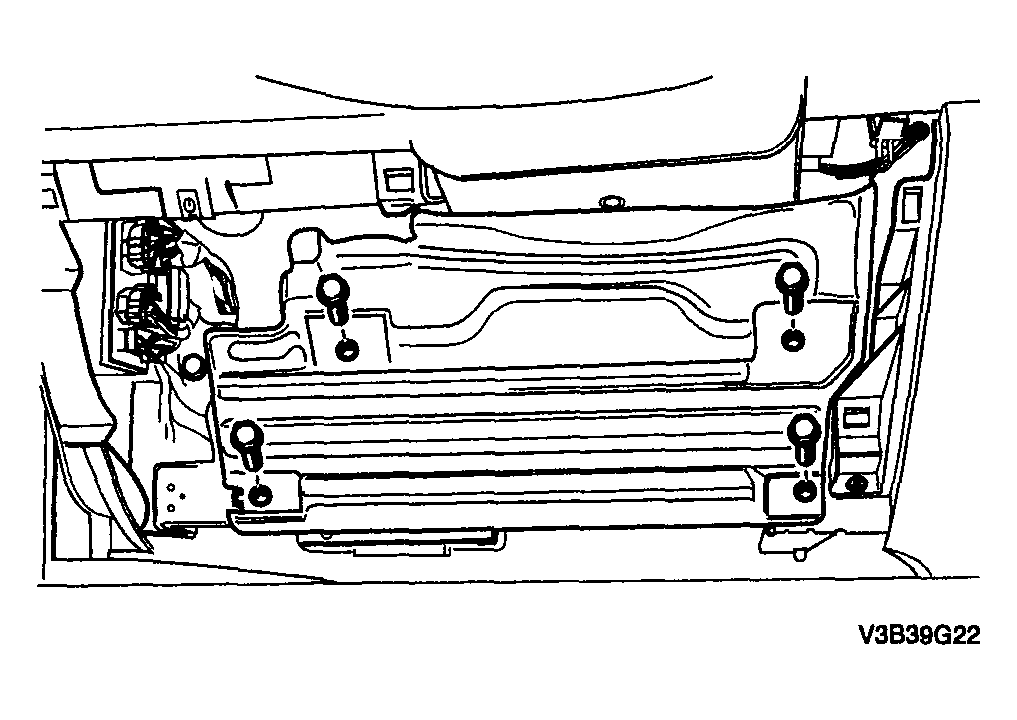

    Fig 1: Installing Knee Bolster With Bolts
    G04096372Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the instrument panel under cover.
  3. Connect the hood release cable to the hood latch release handle.
  4. Install the coin storage and the screws.
    Fig 2: Installing Coin Storage And Screws
    G04096373Courtesy of SUZUKI OF AMERICA CORP.
