Tachometer Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. Refer to "INSTRUMENT CLUSTER REMOVAL ".

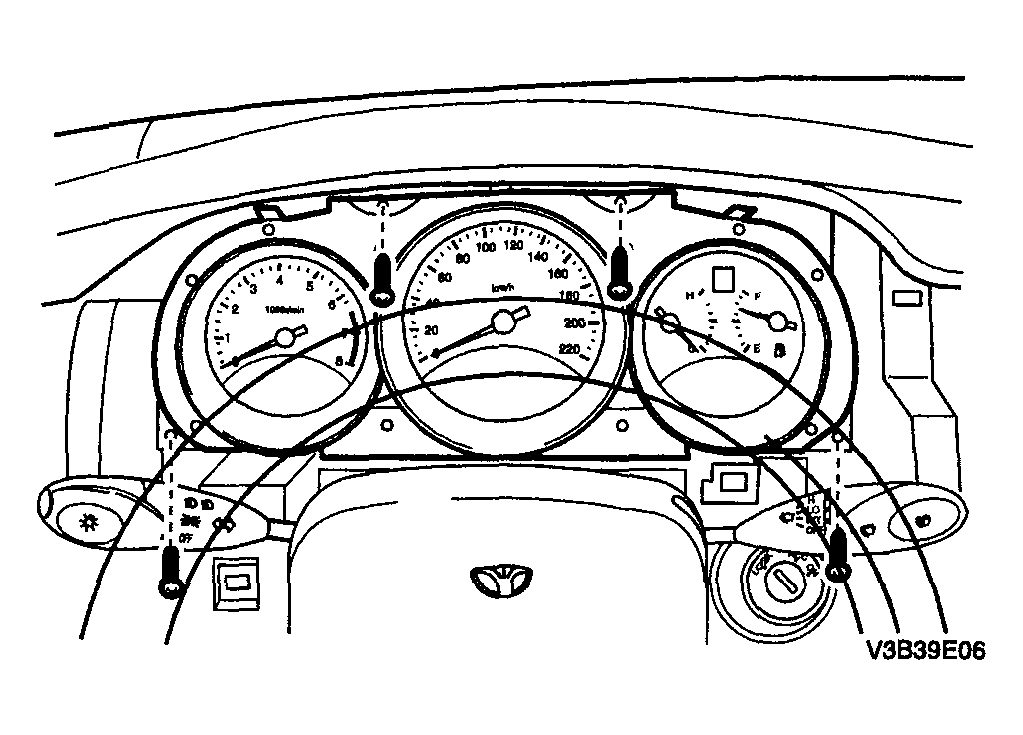

    3. Fig 1: Removing Instrument Cluster
    G04096160Courtesy of SUZUKI OF AMERICA CORP.
  3. Press the clips down and remove the instrument cluster lens.

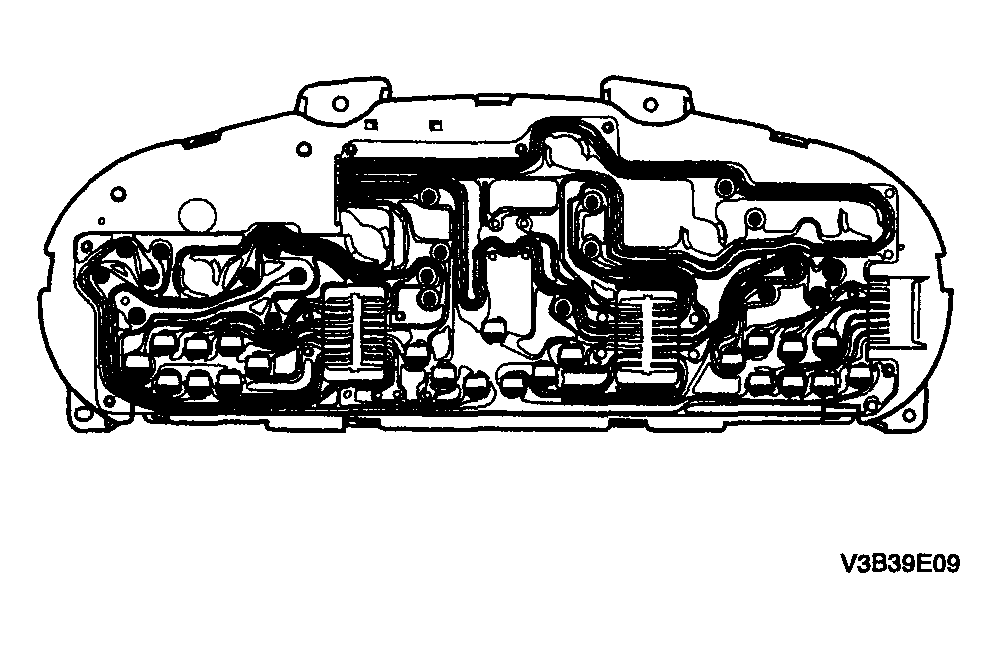

    4. Fig 2: Removing Instrument Cluster Lens
    G04096161Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the tachometer from the instrument cluster.
