Instrument Cluster Indicator Lamps Removal

1. Disconnect the negative battery cable.
2. Remove the instrument cluster. Refer to "INSTRUMENT CLUSTER REMOVAL ".
3. Remove the defective bulb from the rear of the cluster.

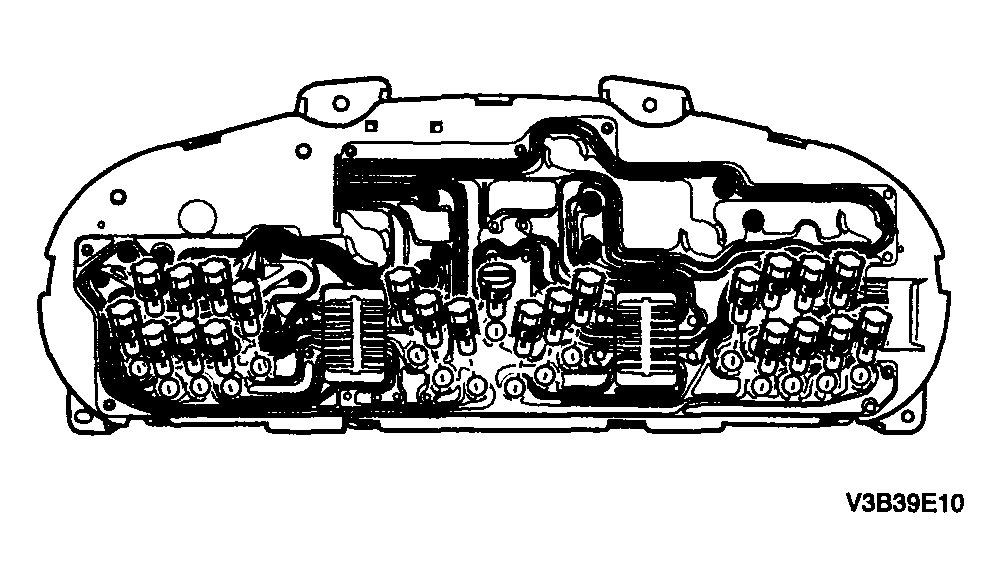

Fig 1: Removing Defective Bulb From Rear Of Cluster

Courtesy of SUZUKI OF AMERICA CORP.
