Fuel and Temperature Gauge Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. Refer to "INSTRUMENT CLUSTER REMOVAL ".

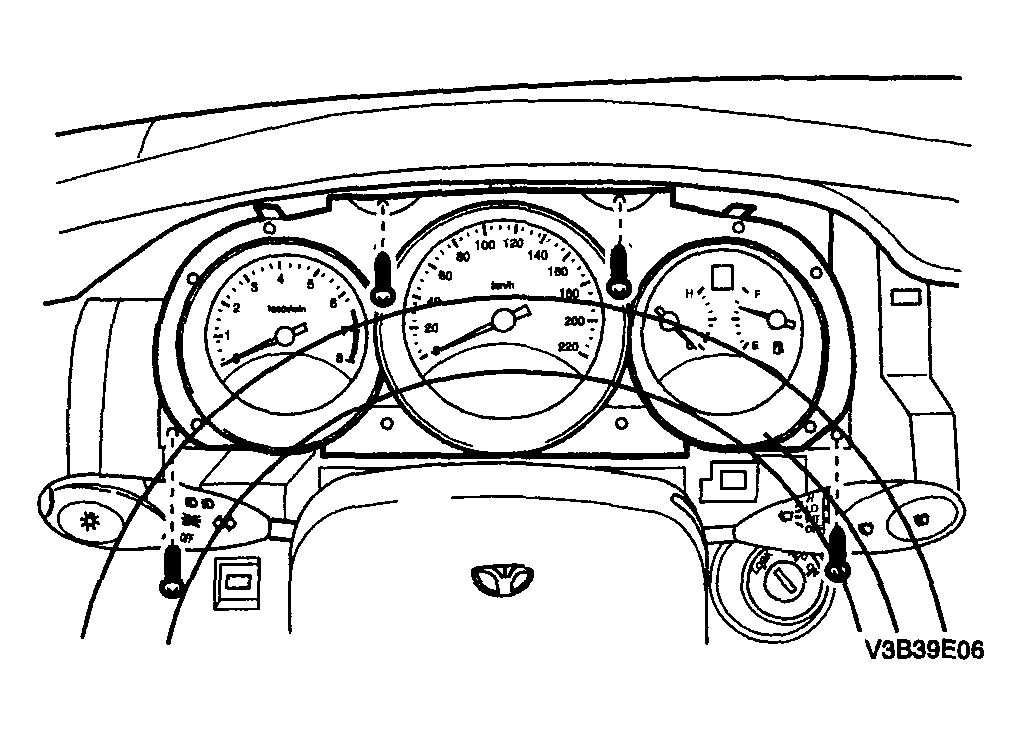

    Fig 1: Removing Instrument Cluster
    G04096164Courtesy of SUZUKI OF AMERICA CORP.
  3. Press the clips down and remove the instrument cluster lens.
    Fig 2: Removing Instrument Cluster Lens
    G04096165Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the fuel and the temperature gauge from the cluster assembly.
