Digital Clock Removal

  1. Remove the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL REMOVAL ".
  2. Remove the screws and the digital clock.

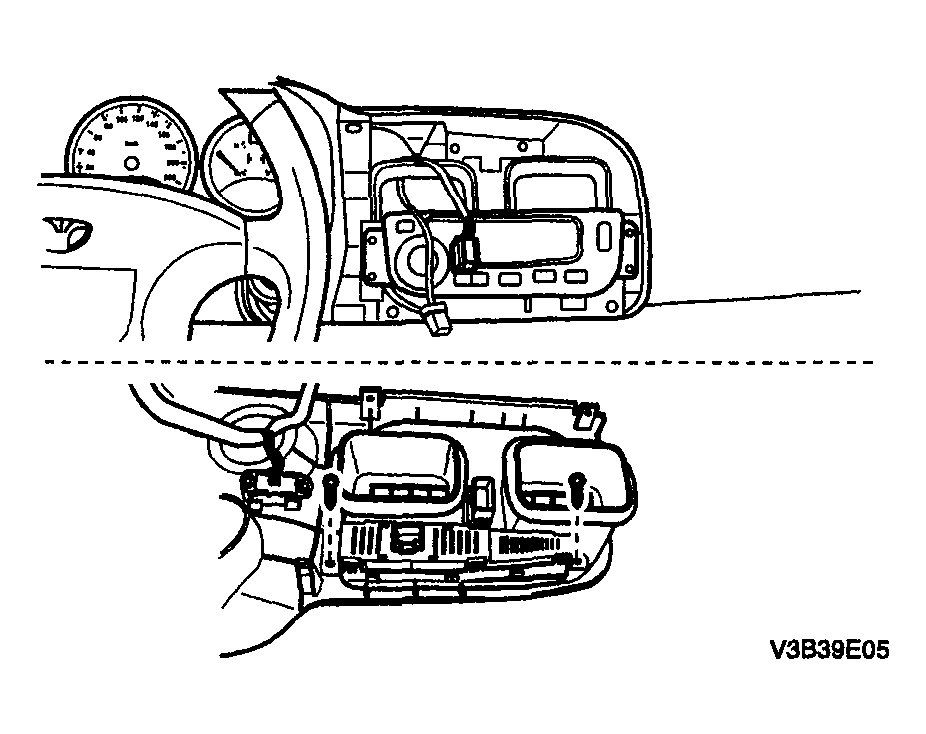

    Fig 1: Removing Screws And Digital Clock
    G04096150Courtesy of SUZUKI OF AMERICA CORP.
