Ashtray Removal

  1. Disconnect the negative battery cable.
  2. Remove the console cover.
  3. Remove the screws and the ashtray trim panel.
  4. Disconnect the electrical connector.
  5. Remove the cigar lighter. Refer to "CIGAR LIGHTER REMOVAL ".
  6. Remove the ashtray lamp. Refer to "ASHTRAY AND CIGAR LIGHTER LAMP REMOVAL ".

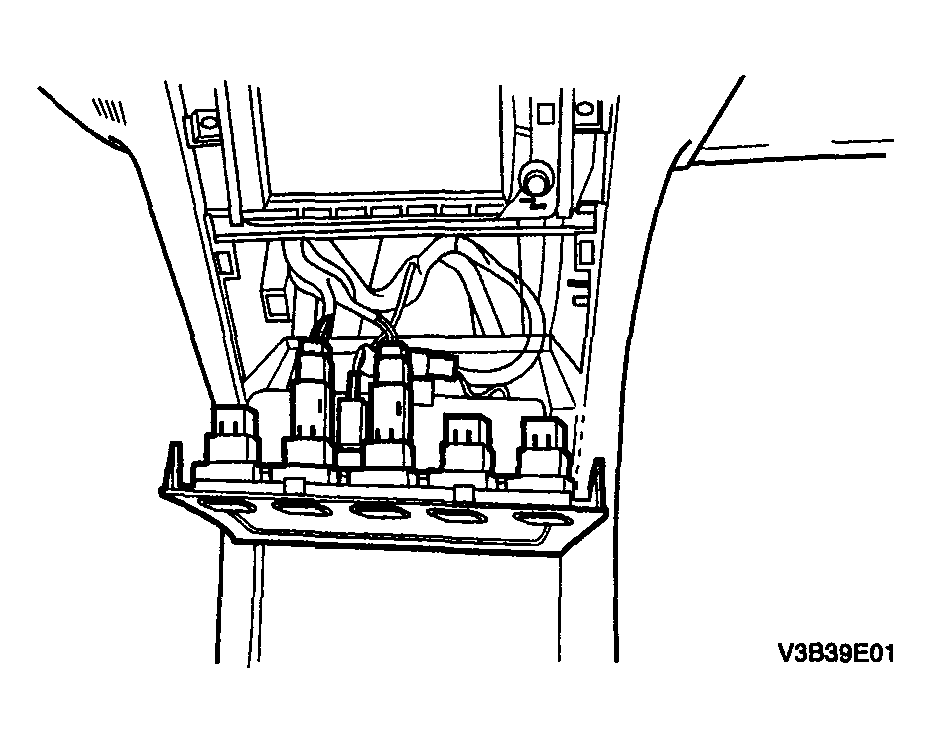

    Fig 1: Removing Screws And Ashtray Trim Panel
    G04096144Courtesy of SUZUKI OF AMERICA CORP.
