Ashtray and Cigar Lighter Lamp Removal

  1. Disconnect the negative battery cable.
  2. Remove the console cover.
  3. Remove the screws and the ashtray housing.

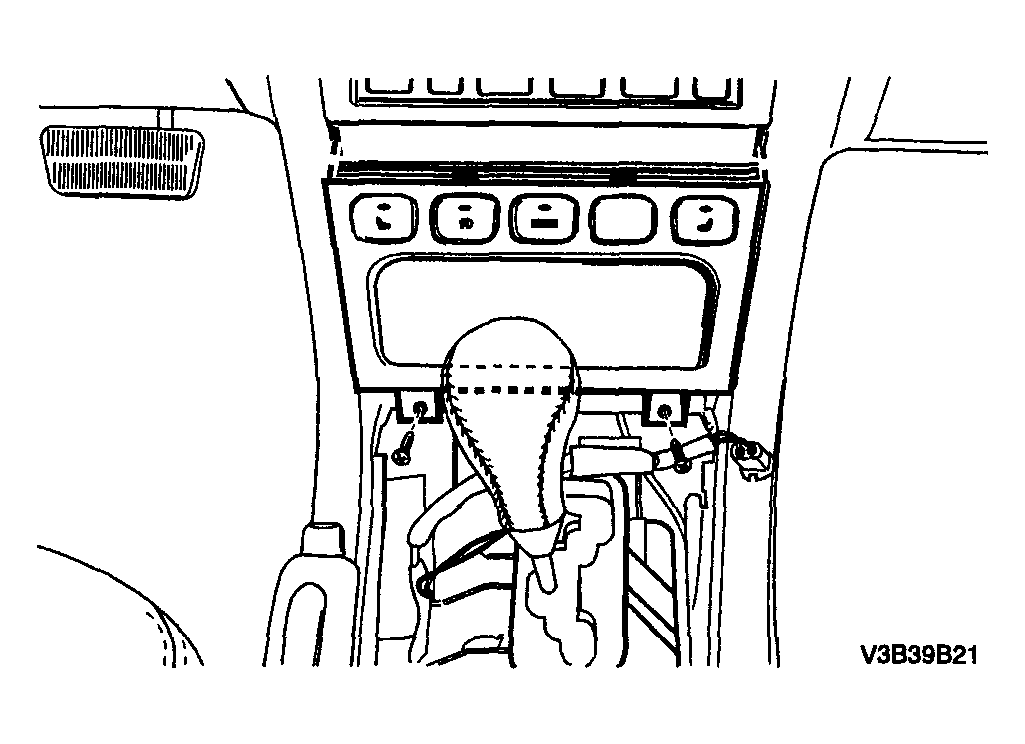

    Fig 1: Removing Screws And Ashtray Housing
    G04096125Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the bulb from the ashtray lamp housing.
  5. Disconnect the bulb from the ashtray lamp housing electrical connector.

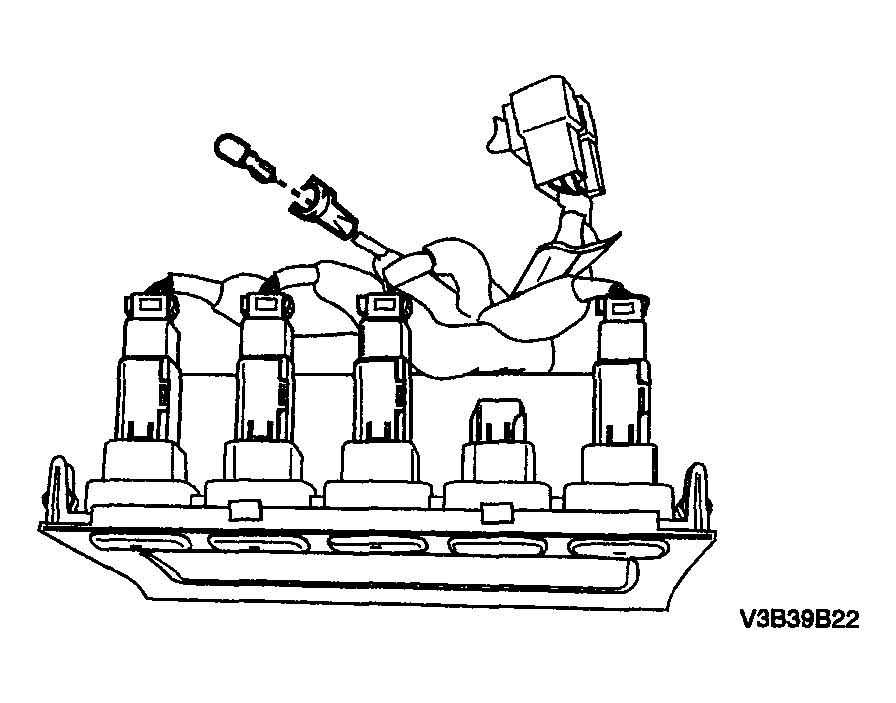

    Fig 2: Disconnecting Bulb From Ashtray Lamp Housing Electrical Connector
    G04096126Courtesy of SUZUKI OF AMERICA CORP.
