Ashtray Installation

  1. Install the ashtray lamp. Refer to "ASHTRAY AND CIGAR LIGHTER LAMP INSTALLATION ".
  2. Install the cigar lighter. Refer to "CIGAR LIGHTER INSTALLATION ".
  3. Connect the electrical connector.
  4. Install the screws and the ashtray trim panel.

    Tighten

    Tighten the ashtray housing screws to 2.5 N-m (22 lb-in).

  5. Install the console cover.
  6. Connect the negative battery cable.

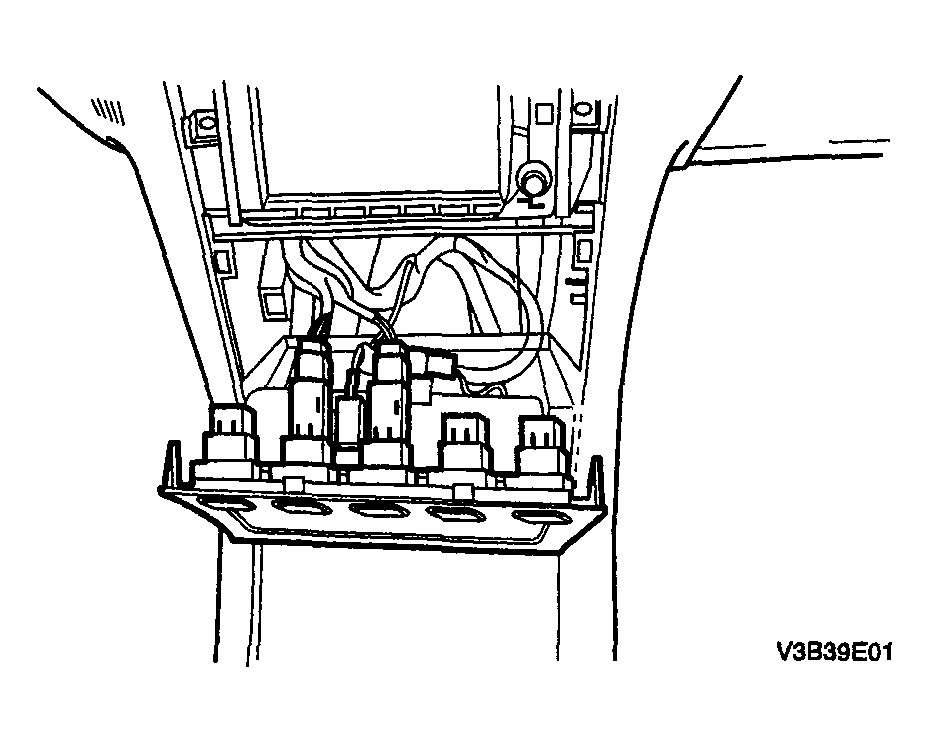

    Fig 1: Installing Screws And Ashtray Trim Panel
    G04096145Courtesy of SUZUKI OF AMERICA CORP.
