Ashtray and Cigar Lighter Lamp Installation

  1. Connect the replacement bulb to the ashtray lamp housing electrical connector.
  2. Install the replacement bulb into the ashtray lamp housing.

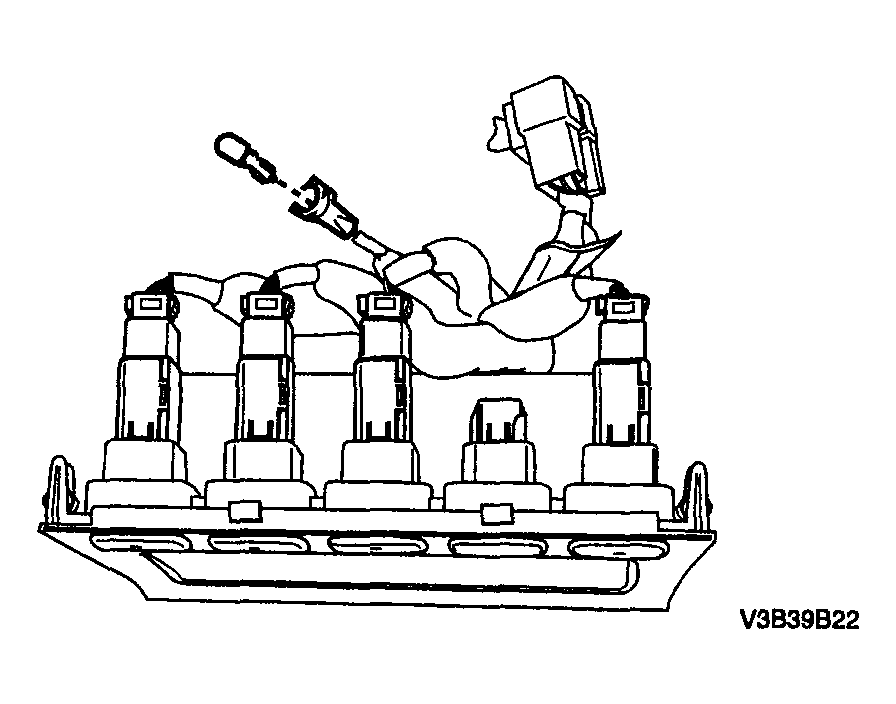

    Fig 1: Connecting Replacement Bulb To Ashtray Lamp Housing Electrical Connector
    G04096127Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the ashtray housing with the screws.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

    Tighten

    Tighten the ashtray housing screws to 2.5 N.m (22 lb-in).

  4. Install the console cover.
  5. Connect the negative battery cable.

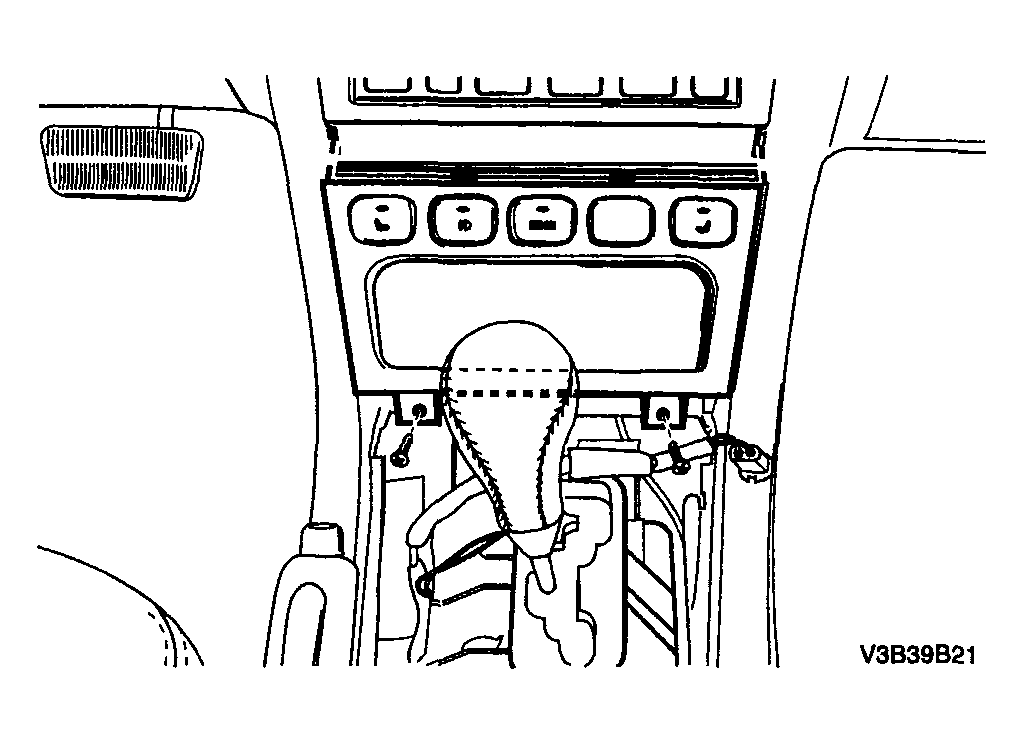

    Fig 2: Installing Console Cover
    G04096128Courtesy of SUZUKI OF AMERICA CORP.
