Automatic Temperature Control Assembly Installation

1. Connect the air inlet tube.
2. Connect the electrical connectors.

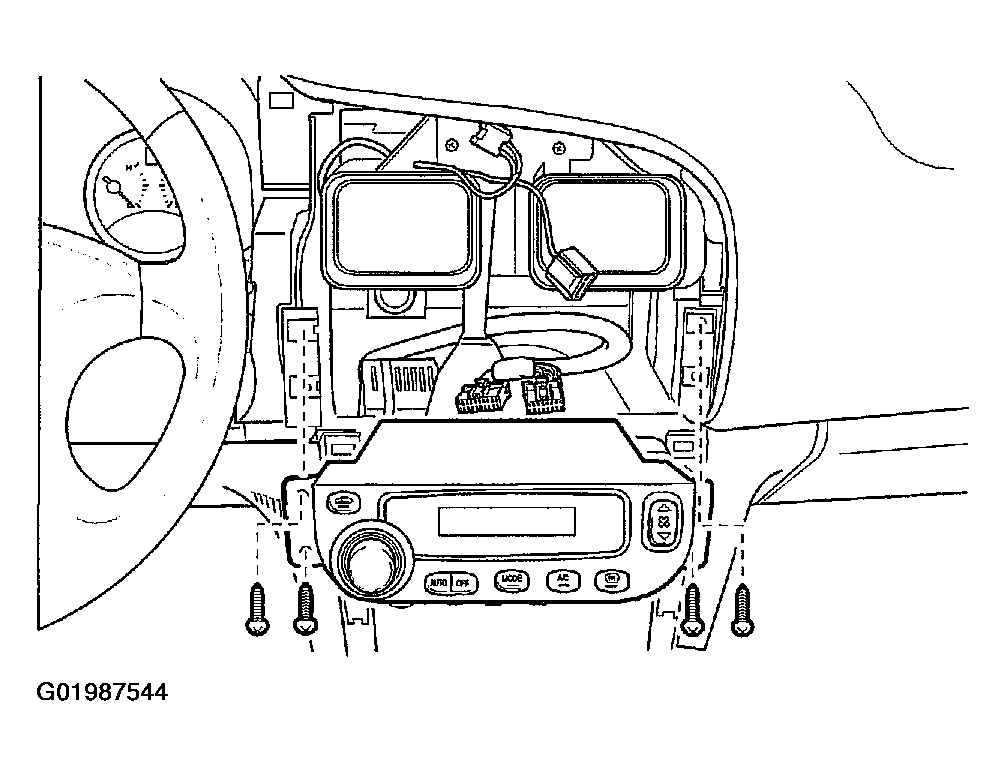

3. Position the automatic temperature control assembly and install the retaining screws.
   1. Tighten the control assembly retaining screws to 2.5 N.m (22 lb-in).
4. Install the audio trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL INSTALLATION .
5. Connect the negative battery cable.

Fig 1: Connecting Negative Battery

Courtesy of SUZUKI OF AMERICA CORP.
