Instrument Cluster Trim Panel Installation

1. Connect the electrical connectors.
2. Install the instrument cluster trim panel with the screws.
   1. Tighten the instrument cluster trim panel screws to 3 N.m (27 lb-in).
3. Install the audio system trim plate.

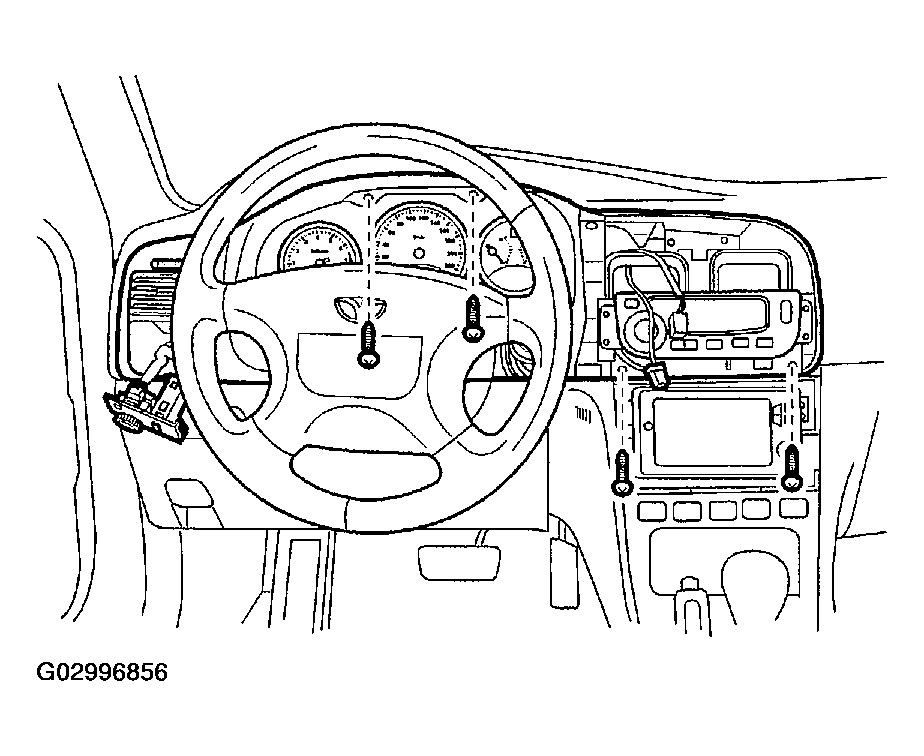

Fig 1: Installing Audio system Trim Plate

Courtesy of SUZUKI OF AMERICA CORP.
