Tachometer Removal

  1. Disconnect the negative battery cable.
  2. Remove the instrument cluster. Refer to Instrument Cluster Removal  .
  3. Press the clips down and remove the instrument cluster lens.

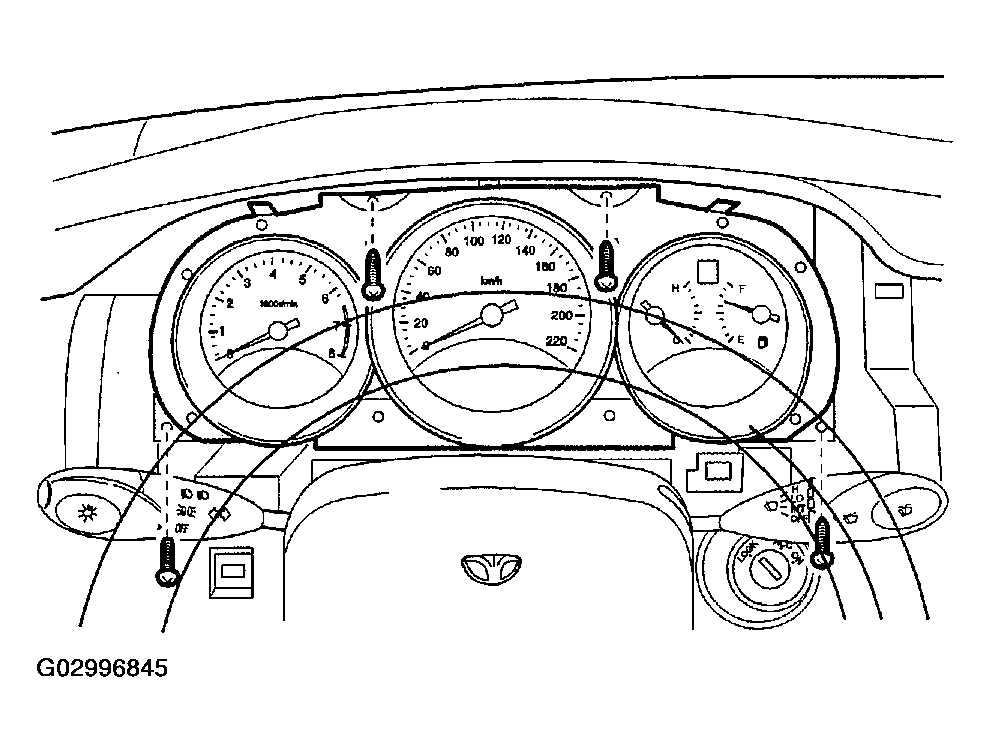

    Fig 1: Removing Instrument Cluster Lens
    G02996845Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the tachometer from the instrument cluster.
Fig 2: Removing Tachometer From Instrument Cluster
G02996846Courtesy of SUZUKI OF AMERICA CORP.
