Speedometer / Odometer / Trip Odometer Removal

1. Disconnect the negative battery cable.

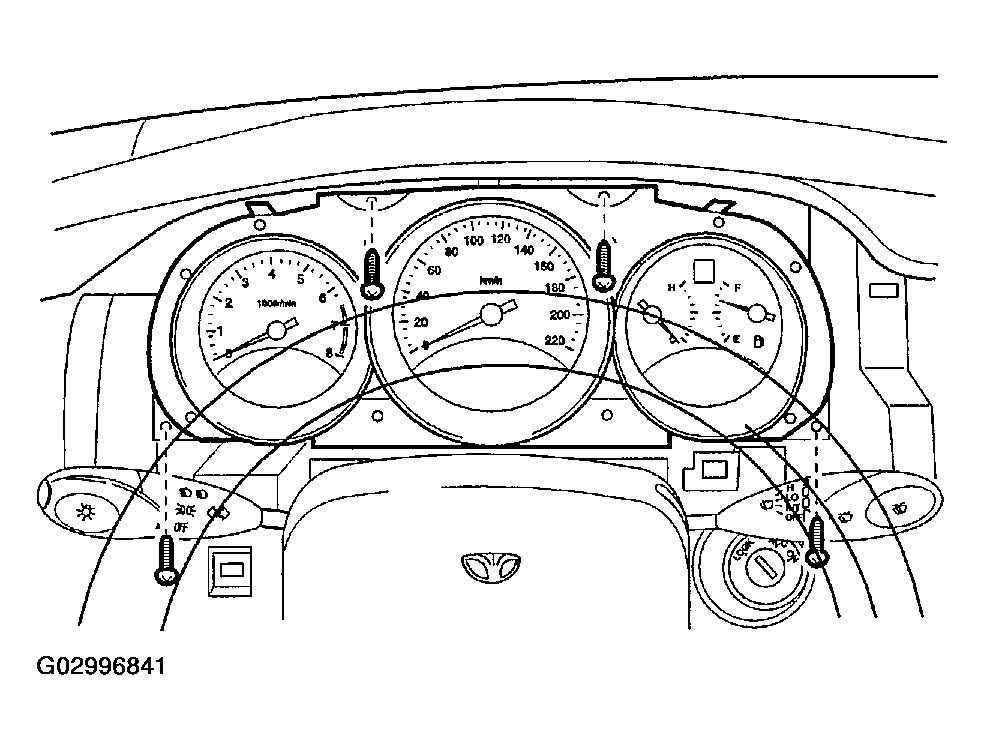

2. Remove the instrument cluster. Refer to Instrument Cluster Removal  .
3. Press the clips down and remove the instrument cluster lens.
   Fig 1: Removing Instrument Cluster Lens

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the screws and the instrument cluster case.
5. Remove the screws and the speedometer from the instrument cluster.

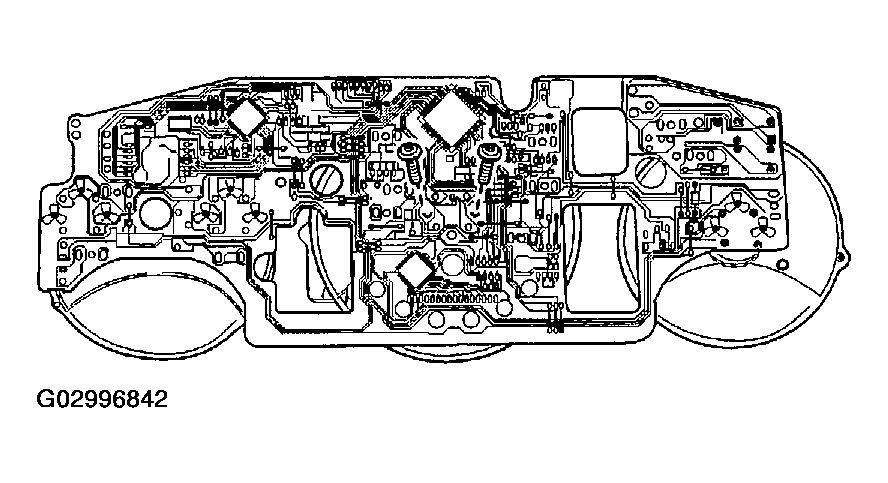

Fig 2: Removing Screws & Speedometer From Instrument Cluster

Courtesy of SUZUKI OF AMERICA CORP.
